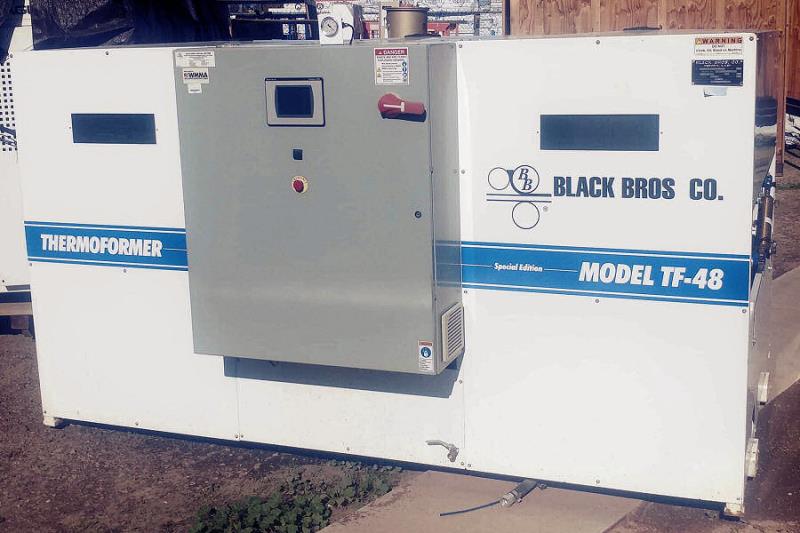

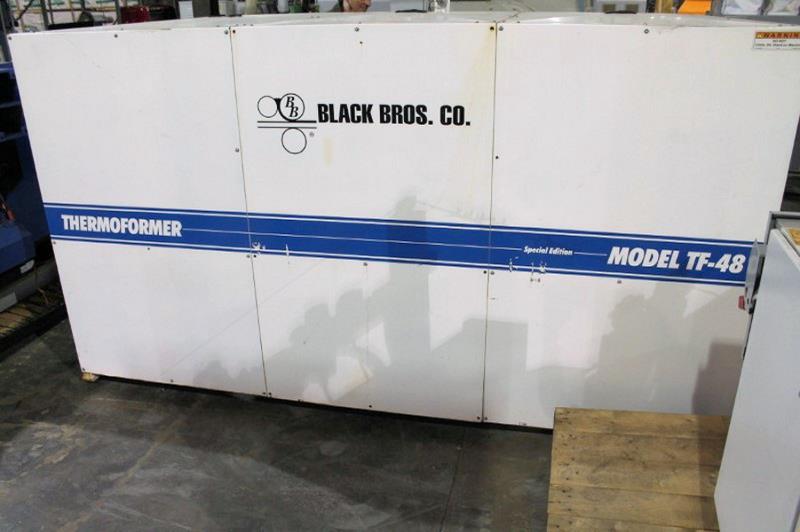

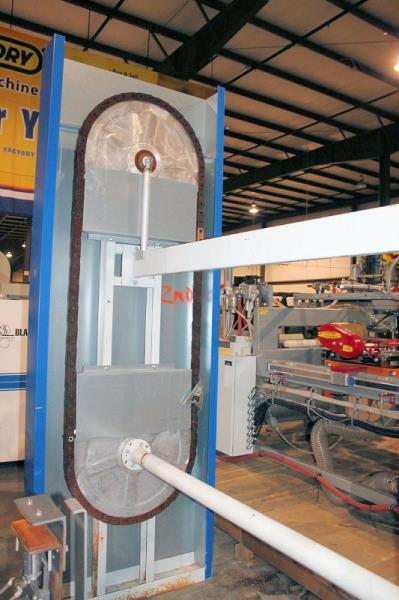

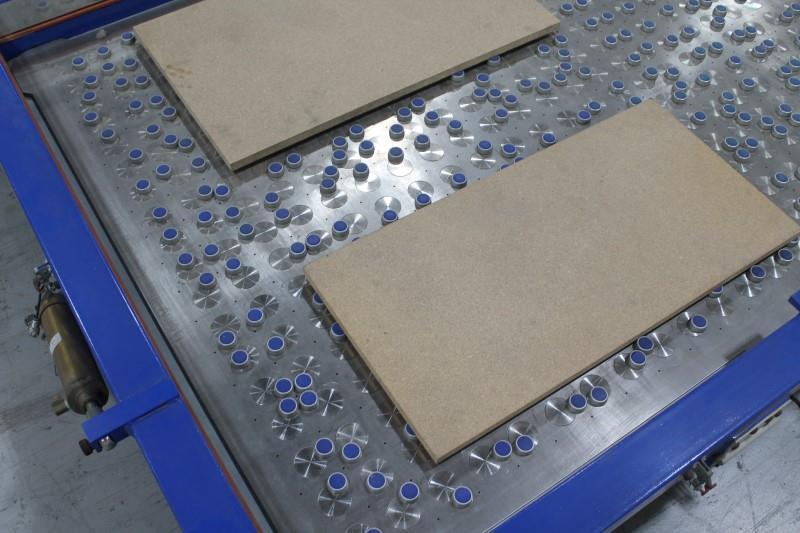

BLACK BROTHERS/ALMEX - TF3-4-8: Single Tray Thermoformer Vacuum Press w/Roll Storage Carousel & RAPHA Jig Pin System
The economical solution for making 3D Thermofoil components.
Table dimensions: 52 x 100" (1,329 x 2,540 mm).
Max. panel thickness: 2".
Vacuum pressure: 14 PSI (max. possible vacuum is the atmospheric. pressure of 14.7 PSI).
Max. temperature: 250°F (129°C).
Production Capacity: Cycle time (5 - 7) Min averaging (7 - 8) cycles per hour.
Approx. conservative production: (10) Parts per cycle.
Actual cycle time varies with material (required time, temp, and vacuum by manufacturer), ambient temperature, etc...
*** Please click the link for full description***
Black Brothers /Almex TF3-4-8 Thermoforming Vacuum Press
