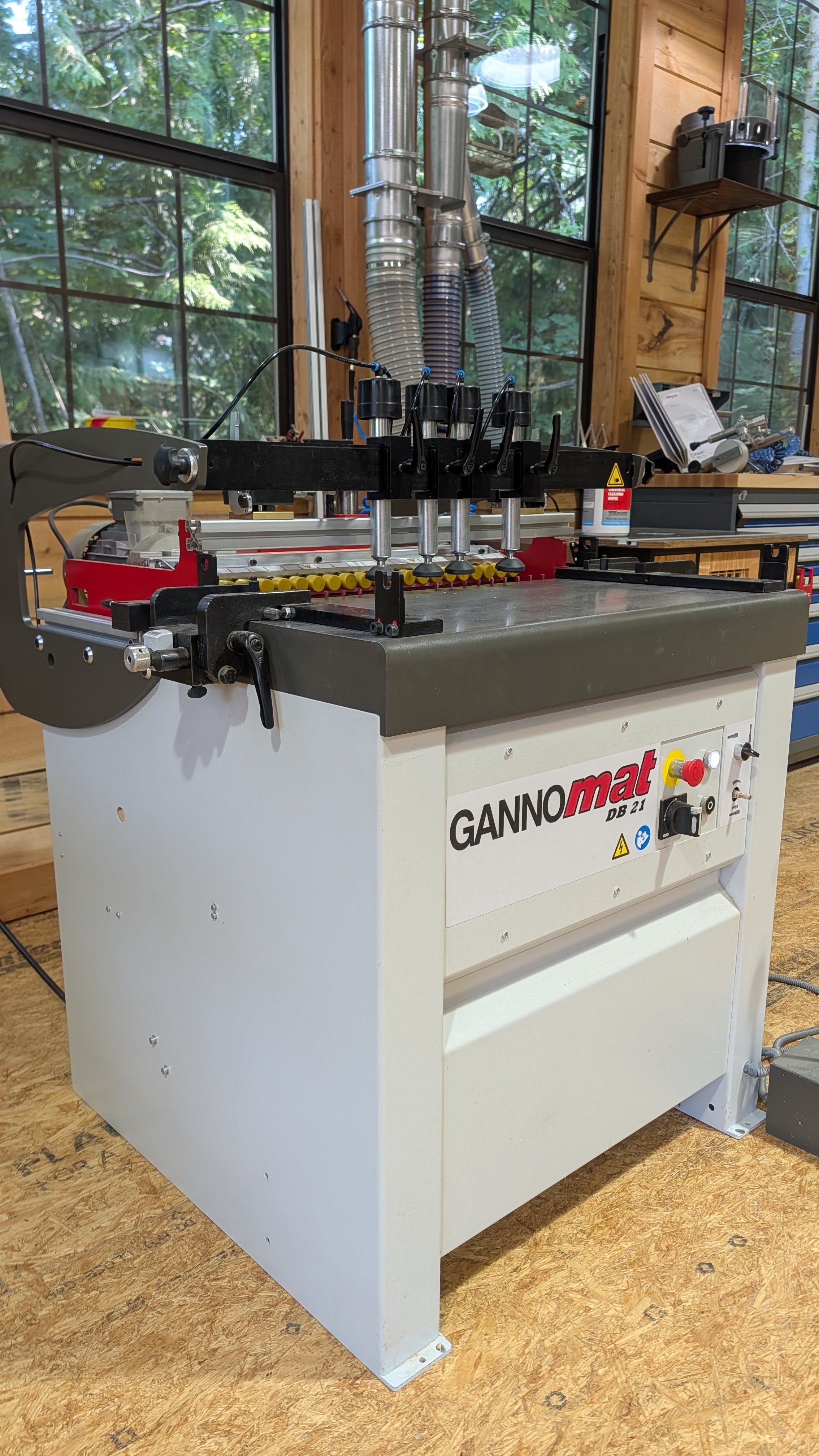

Like-new Gannomat DB21 21-spindle construction and line boring machine. Purchased new and only used for a single small kitchen project, this unit is in pristine condition. Selling only because I upgraded to a Gannomat ProTec CNC center.
- Key Machine Specifications -
- Spindles: 21 spindles at 32mm pitch
- Electrical: 220V, 3-Phase, 60 Hz
- Operation: Fully automatic pneumatic clamping, drilling, and release via foot pedal control
- Tilting Head: Easy gas-cylinder assisted head tilt from 0° to 90° with automatic + 10mm depth compensation for
horizontal boring
- Fences & Positioning: Mechanical digital counters for height and side fence positioning; side fences retract
easily for quick transitions between case construction and line drilling
- Ruler System: 1800mm stopping ruler with 3 latch stops featuring a quick-change system for easy left/right side
switching (mirror-image doweling)

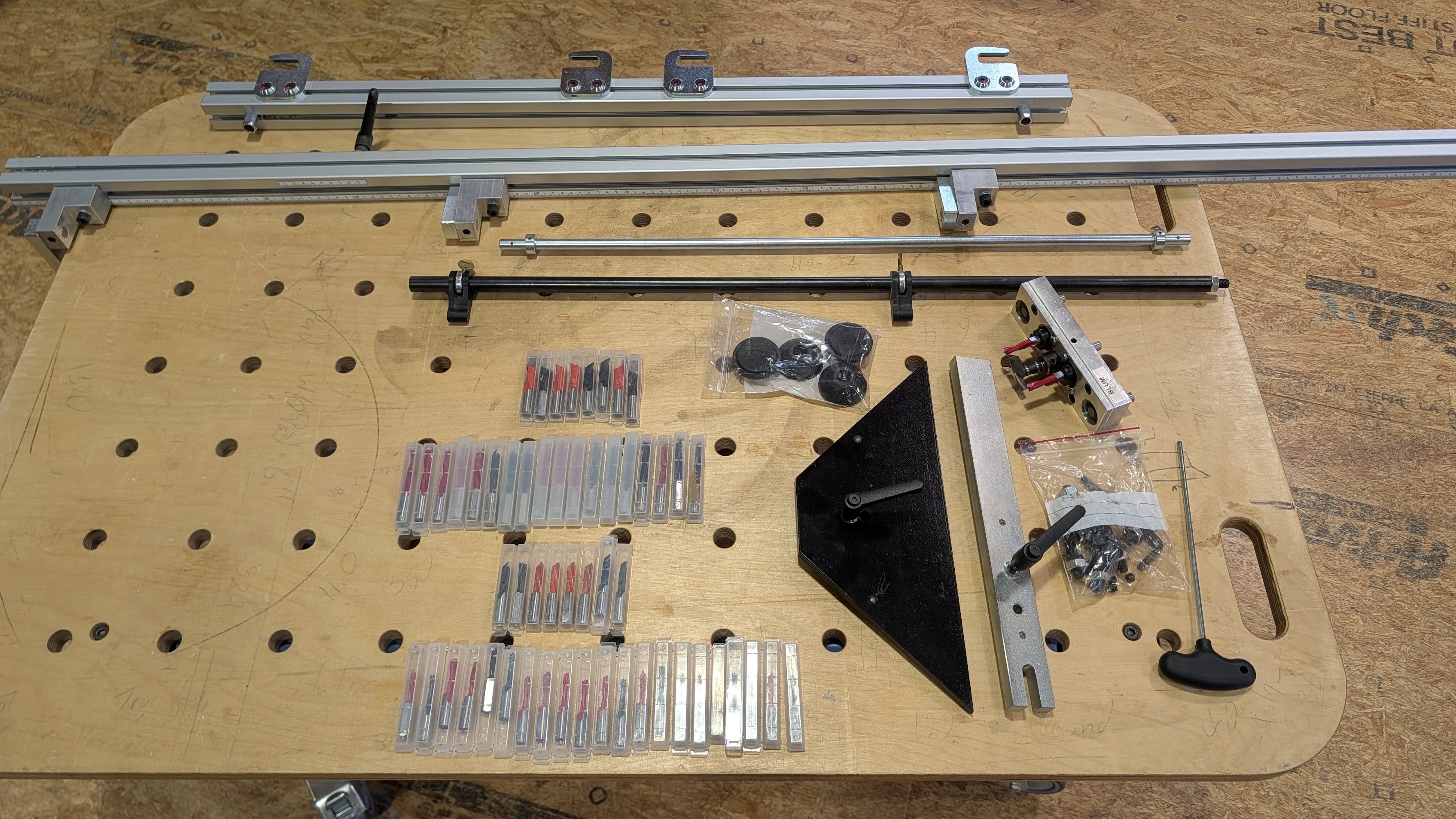

- Included Accessories & Tooling Package -
- Line Drill Package (0530-0810): Includes two guides with scale adaptors (max pos 300), two pairs of position
stops, 1050mm basic ruler, and dedicated stopping ruler
- Boring Bits Included:
○ (8) 10x57mm brad point bits (4 RH, 4 LH)
○ (18) 8x77mm brad point bits (9 RH, 9 LH)
○ (8) 8x57mm brad point bits (4 RH, 4LH)
○ (21) 5x57mm line drilling bits (10 RH, 11 LH)
- Hinge Adapter: Specialty adapter drill head and tooling for Blum hinges
- Specialty Devices: Gannomat 511, 90° frame doweling device and Gannomat 512, 45° miter doweling device
- Hold-Downs: Four pneumatic clamps
Austrian-engineered with heavy-duty cast construction and rock-solid pneumatic components, the DB21 is a benchmark for rigidity and repeating accuracy. The precision-machined 21-spindle head drives through hardwood and composite panels without a hint of deflection, while the micro-adjustable side fences and mechanical digital readouts let you dial in tolerances effortlessly. Every fence lock, gas-assisted head tilt, and latch stop clicks into place with crisp, industrial authority. It’s the kind of over-engineered, vibration-free machinery that makes setting up joinery or line drilling an absolute joy to operate every single time.
