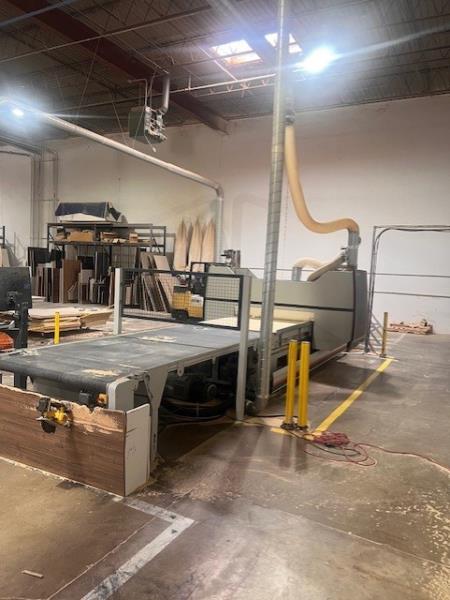

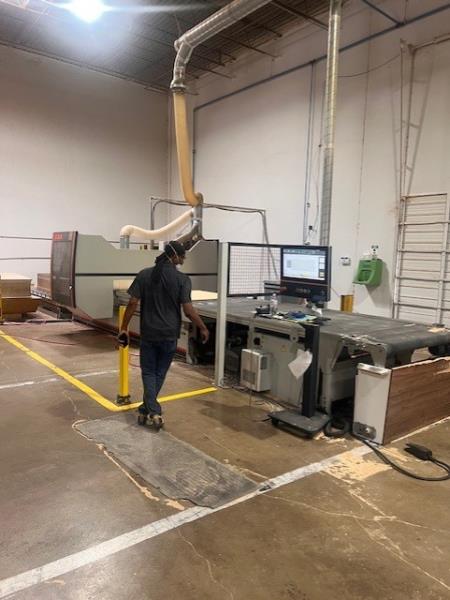

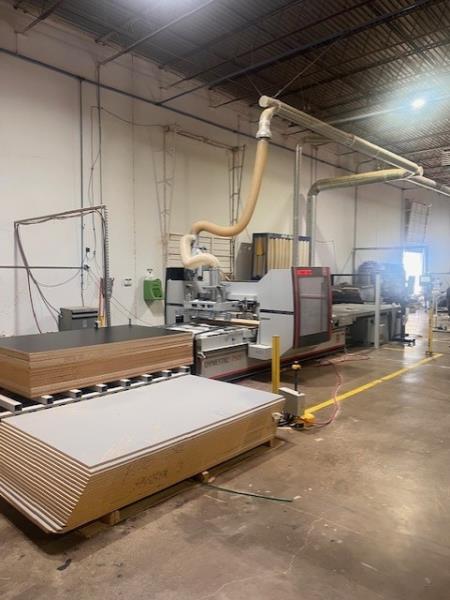

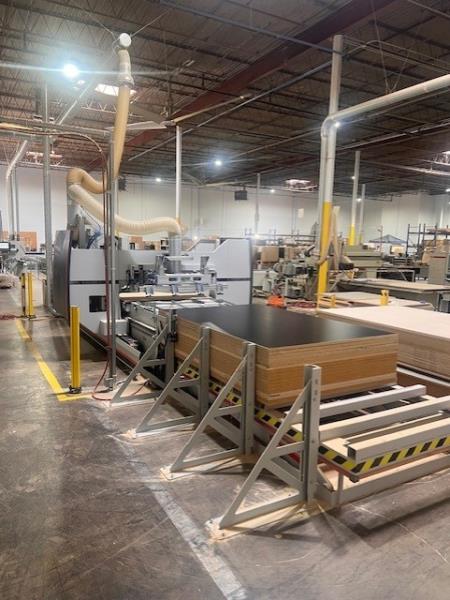

HOLZ-HER DYNESTIC 7505 10.5 PUSH Cnc Flat Table machine with Loading/Offloading:
5' x 10.5' Phenolic MATRIX Table for "Nested Base" Manufacturing.
Working Area: "X" Axis 122" (3,100 mm), "Y" axis 62.2" (1,580 mm), "Z" axis stroke is 12.4" (317 mm).
Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM).
Worktable: Flat table designed for "Nested Base Manufacturing". (4) Pneumatically controlled reference stop pins with (3) in "Y" axis & (1) in "X" axis.
Boring Unit: 2 HP (1.7 kW) motor for spindle speed from 1,000 to 6,000 RPM. (10) independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis. (4) Horizontal spindles with (1+1) in "X" axis & (1+1) in "Y" axis. (1) "X" axis Saw for max 120 mm dia. blade.
Machining unit: (1) 10.7 HP (8 kW) Electro-spindle Router with HSK F63 adaptor, 1,000 - 24,000 RPM. (1) 6-position Linear ATC tool rack mounted to the machine base.
Operator Interface: PC Front-End with Holz-Her "CAMPUS V7" operating system; 17" Color monitor; standard keyboard, mouse & USB slots for data entry; (3) axes simultaneous control; feed rate and spindle speed override & axis movement. CAMPUS/NC Hops offers "Real Time" 2D or 3D graphics; Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features.
Complete with: (2) 140 m³/Hr BECKER Vacuum Pumps with ECOVac Intelligent Vacuum that automatically turns on/off vacuum units ...
*** Please click the link for full description***
Holz Her DYNESTIC 7505 Flat Table Machine
