(1) Head automatic cross & linear V-Groover, 48" max. material width on cross-groove,
Unlimited length for linear grooving, 1-1/4" max. material thickness.

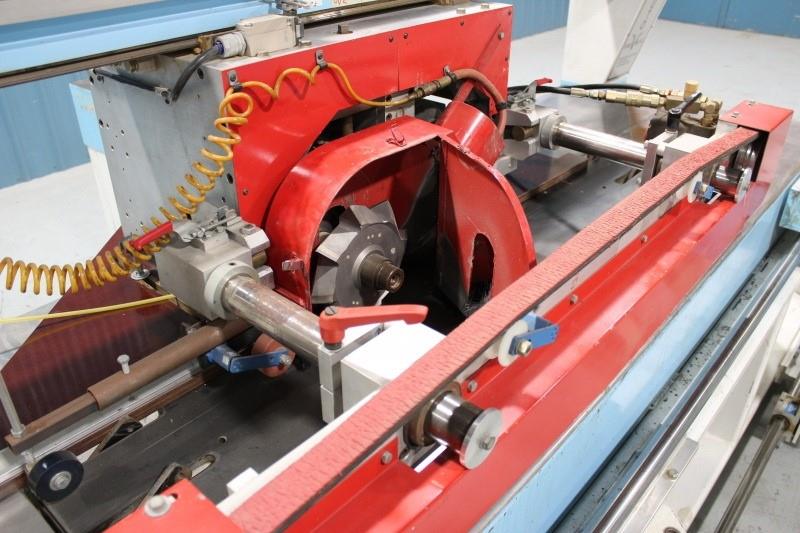

(1) 10 HP - 3,600 RPM Motor, 30 mm dia. belt driven precision cutter arbor, 3-1/4" max. cutter width.
2 HP Hydraulic feed motor for infinitely variable crosscut feed speed from 0 - 50 FPM & 0 - 60 FPM for linear feeding.
Heavy-duty double belt feeder assembly for linear grooving.
Includes: Adjustable pneumatic material hold-down bar.
*** Please click the link for full description***

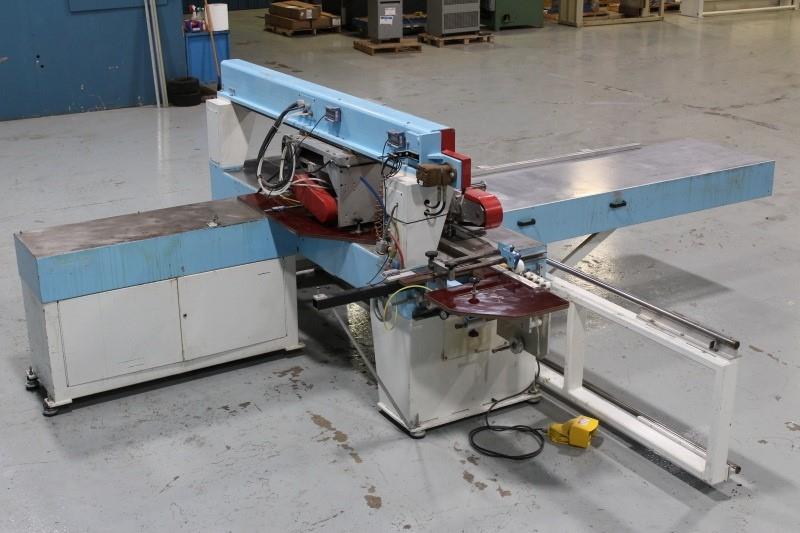

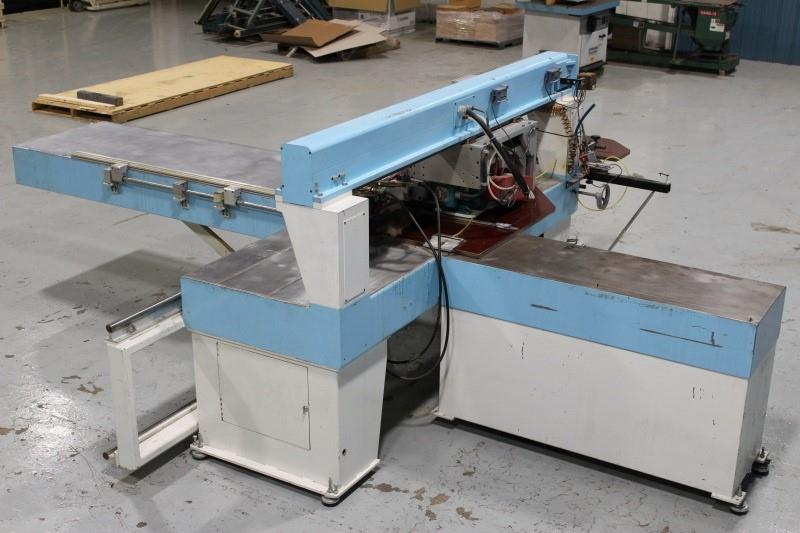

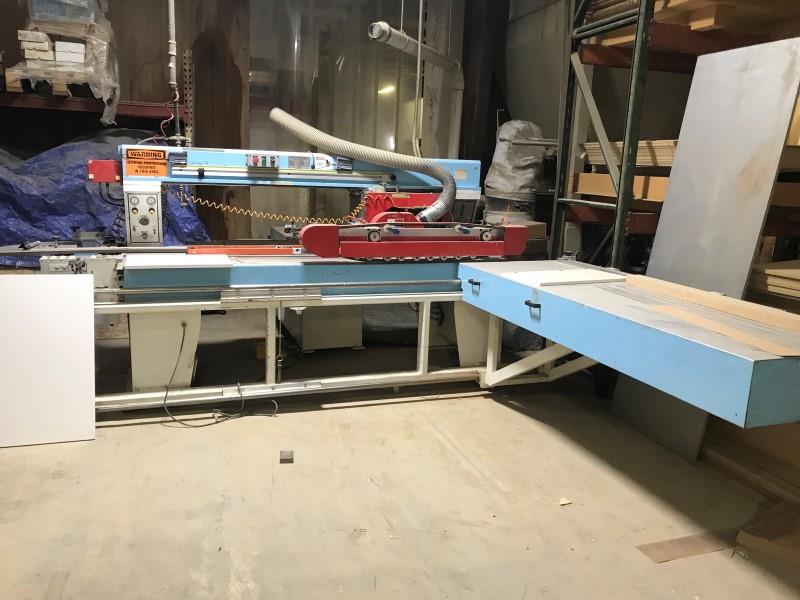

Auto-V-Groove AVG-48MFT Universal V-Groover
