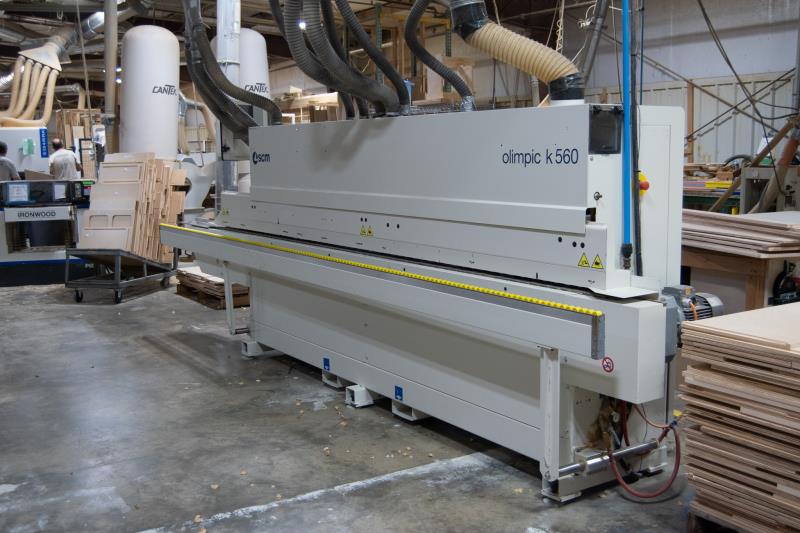

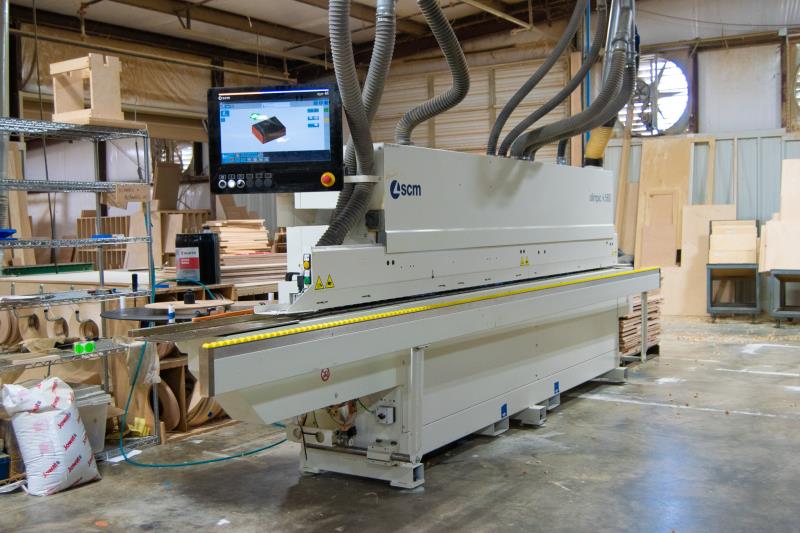

SCM - OLIMPIC K 560 R HP SERVO: Edgebander w/Premill & Corner Rounding
Edge Capacity: 0.4 to 6 mm (0.016 to 1/4") for strip feeding. Panel Capacity
Min. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").
Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").
Premilling Station. (2) 2.0 HP (1.5 kW) motors; Servo controlled; to rectify/clean panels already sized.
Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning.
Automatic Strip & Coil Feed Magazine. For straight edges; 3 mm guillotine for coils.
Gluing Station: For EVA (Hot Melt) with quick-change/disconnect TEFLON glue pot for fast glue tanks change if needed. - Heat up time approx. (10) Min.
Pressure Section. Manual digital positioning: TEFLON Coated pneumatic driven roller; (2) spring-loaded idle rollers.
Workstations
End Trimming Station. Front & rear: (2) 1/2 HP - 12,000 RPM Motors mounted on THK guides; swivels 0° - 15° for straight & angle cutting.
Top & Bottom Trimming Unit. (2) 0.7 HP - 12.000 RPM motors; capable of tilting & pneumatic positioning for (3) settings: flush/bevel/radius trimming for quick setup.
Corner Rounding Unit. With: (2) 0.8 HP Independent motors that slide on THK guides.
Top & Bottom Profile Scraping Unit. Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning.
Glue Scraping Unit. Eliminates any excess glue.
Buffing Unit. Top/Bottom; (2) 1/4 HP - 2,800 RPM motors; tilting up to 12°.
