Max. cutting depth 3-3/4". Arbor Diameter 1". Saw Blade Size 8½" - 12". Throat to Blade Depth 15".
Table Dimensions 33" x 59".
10 HP Main Motor. Spindle Speed 4,500 RPM.
Feed Motor 1 HP. Feed Chain Width 6". Feeding Speed 30 - 85 RPM.
Automatic lubrication to V-Way track allows the chain to operate smoothly.
Chip & Dust Collection Hood Diameter 4".
(4) Pressure Rollers for accurate cutting of both large and small workpieces.
Double anti-kickback fingers mounted at the infeed provide safety protection for the operator.
*** Please click the link for full description***

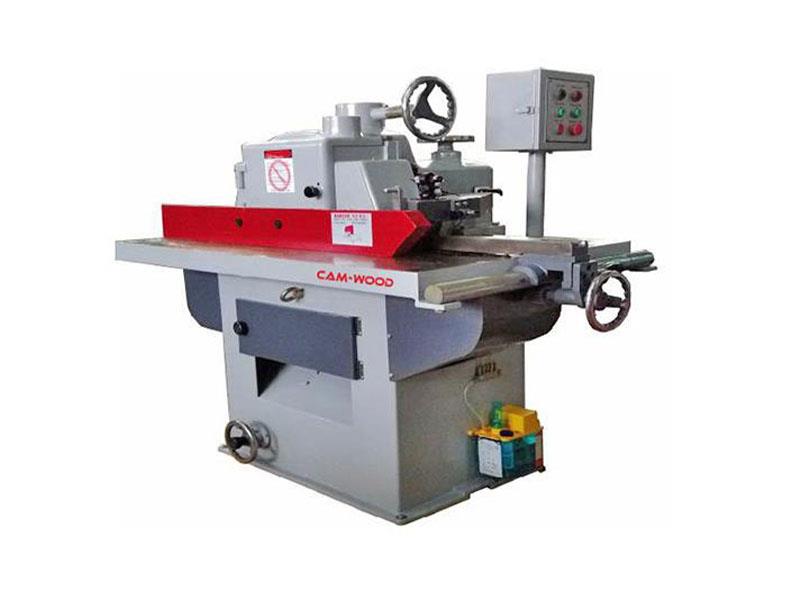

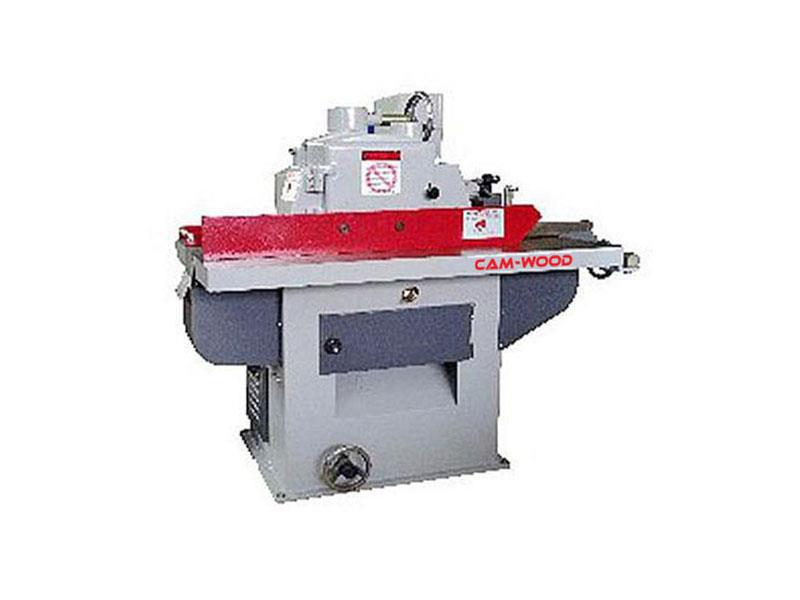

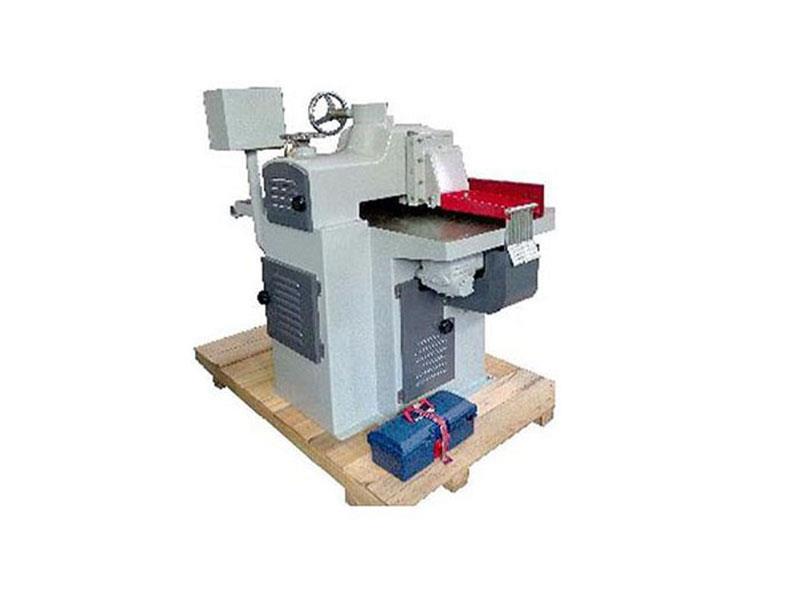

Cam-Wood TRS-0012X Straight Line Rip Saw
