Through-feed Optimizing Saw Controlled by Numeric Control and Personal Computer for the Complete Optimization of Wood and the Elimination of Defects.
Very robust and reinforced steel structure.
Advancing system with one toothed belt with steel cables inside, step T10.
Rising and descending of each roller before and after the blade managed by numeric control.
Electronic system composed of a computer connected in real time to a last generation numeric control. TROPTIM Software running on Windows. Complete with (5) qualities managing. 19” LED color screen. Telephone service via internet. Macro Excel included.
Fast and full optimization maintaining a notable compactness of the machine. Brushless motor. Blade motor – 7-1/2 HP. Electronic managing of the elimination of the last small waste.
Cutting Section: minimum 0.59” x 1.18” wide; maximum 2.7” x 7.8” wide. Min. length before cutting Min, 19.7”; max. 9.8’ or up to 19.68’ with optional support rollers.
Possibility to make only one cut in the last 200 mm (7.87”) of the board.
Cutting boards with regular shape and max thickness difference of 8 mm (5/16"). Max wood weight 110 Lbs.
*** Please click the link for full description***

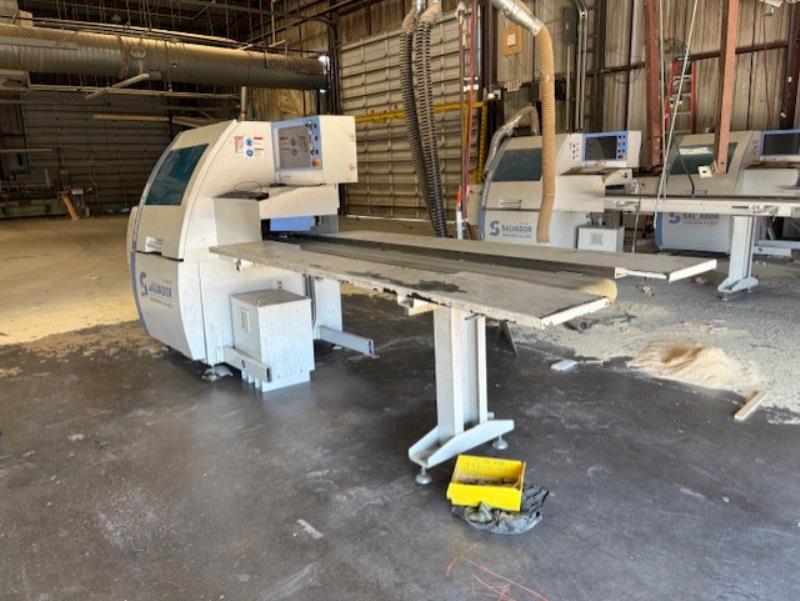

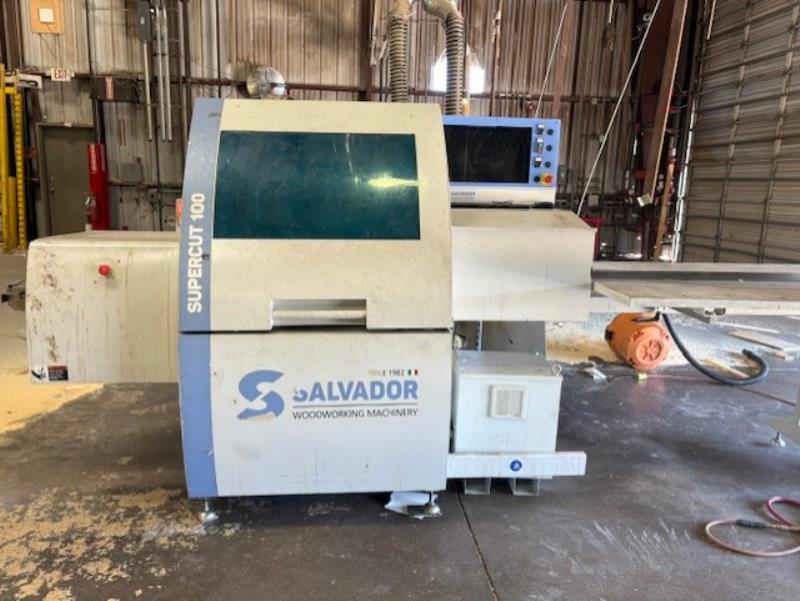

Salvador SUPERCUT 100 OPTIMUS Optimizing Saw System
