Description

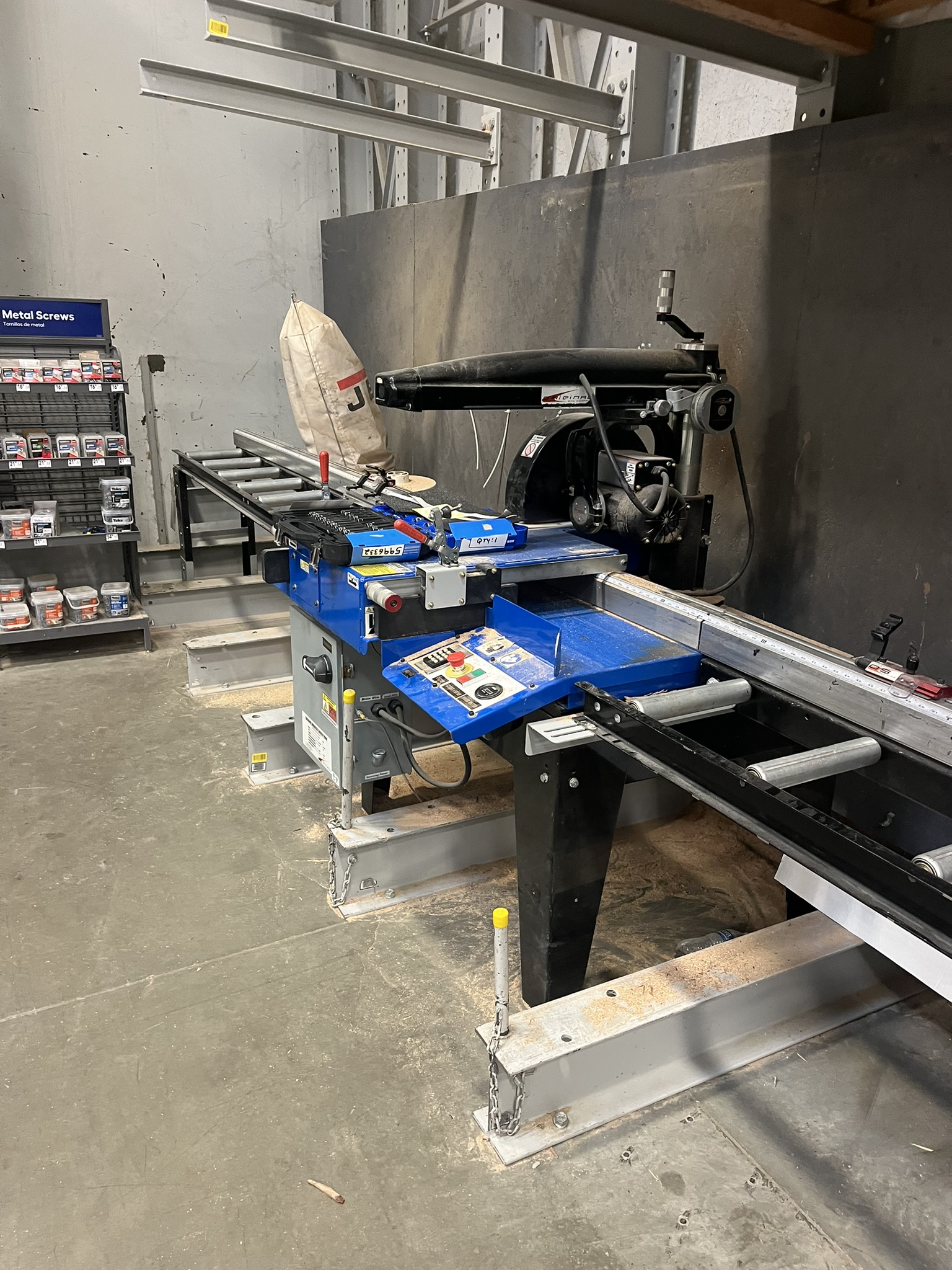

Complete Original Saw Company Model 3541 industrial radial arm saw cutting station, manufactured in 2019 and previously installed in a commercial Lowe’s location. This is a heavy-duty production setup intended for repetitive cutting of dimensional lumber, millwork, engineered wood, and similar materials.

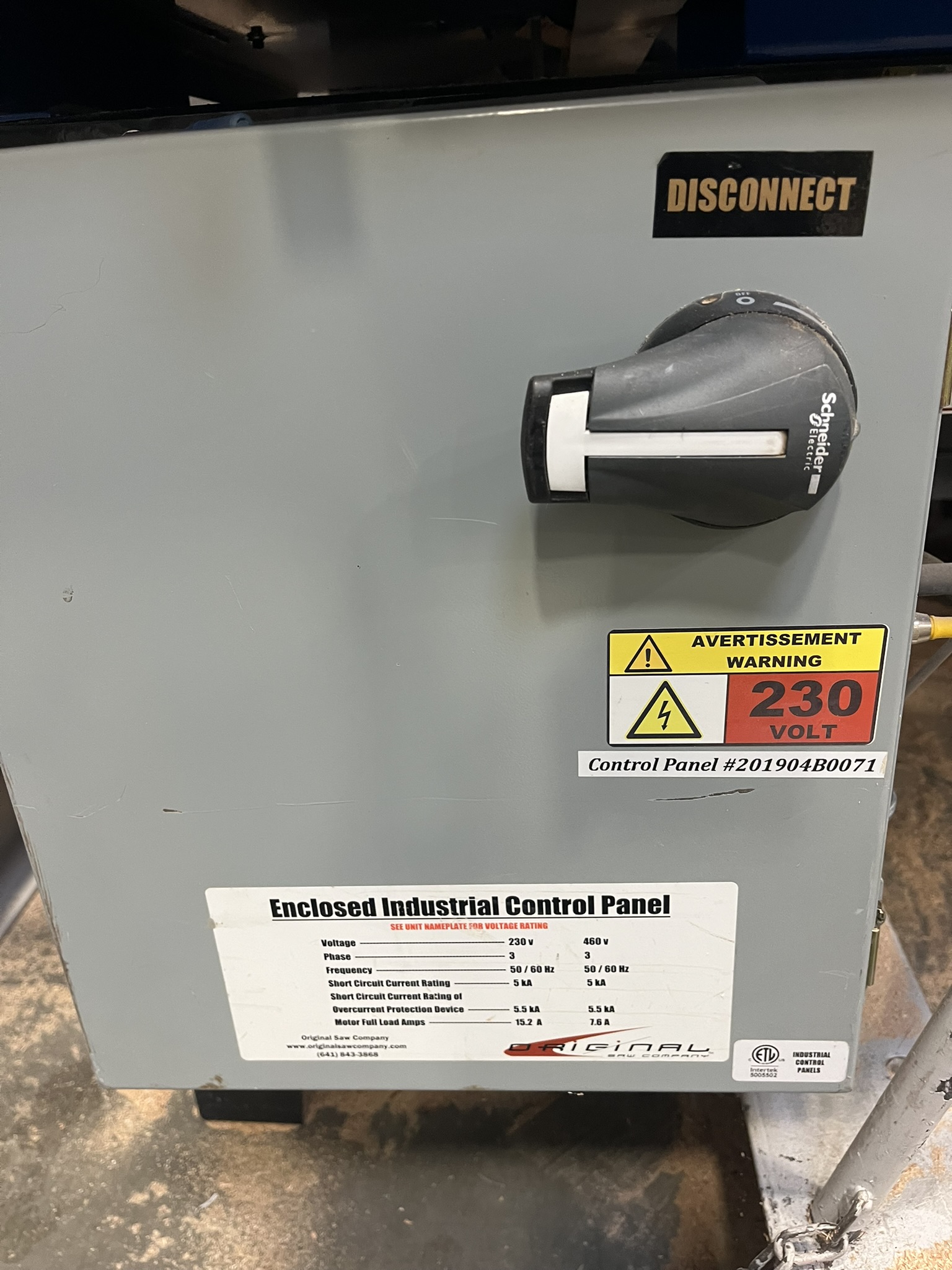

The saw is configured for 230V, 3-phase power and includes the factory industrial electrical control panel with main disconnect, emergency stop, start/stop controls, hour meter, and keypad access/control system. The machine is mounted on a substantial steel base and is equipped with a large blade guard and integrated dust-collection connection.
Complete setup includes:
Original Saw Company Model 3541 heavy-duty radial arm saw
230V / 3-phase industrial electrical control system
Long infeed and outfeed roller conveyor system
Heavy-duty steel conveyor frames and support legs
Full-length aluminum measuring rail/fence system
Adjustable material stops and guides
Roller support sections surrounding the cutting station
Steel mounting bases and floor supports
All associated mounting bolts, anchor bolts, brackets, fasteners, and hardware
Dust-collection hood and hose
Vacuum/dust-collection system
Saw blade/guard assembly

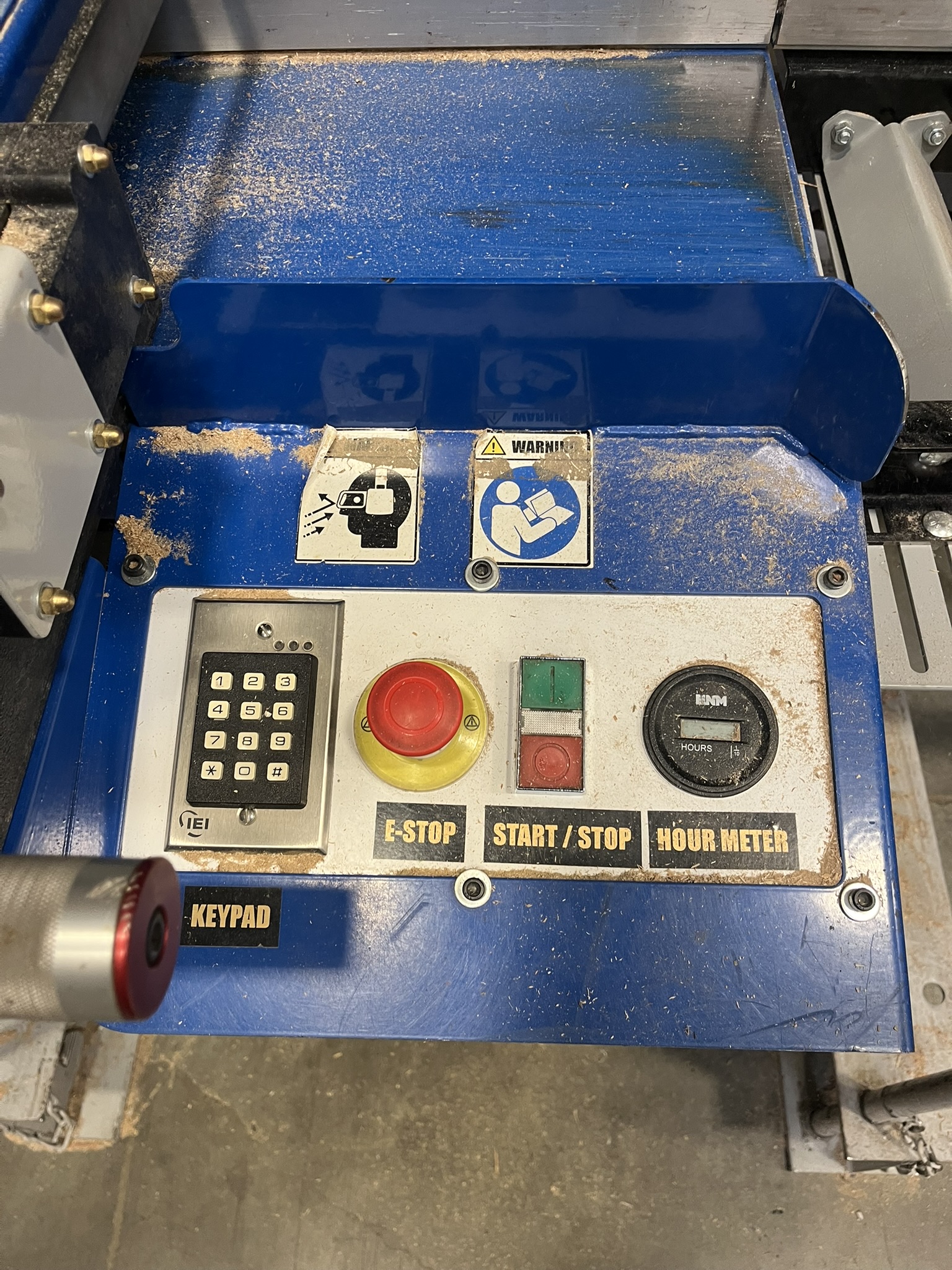

Emergency-stop and operator control station
Main Schneider Electric disconnect
Existing electrical components associated with the machine
Any additional rails, supports, stops, and components currently installed with the system
This is a complete commercial cut-to-length workstation, not simply a standalone radial arm saw. The long roller system allows full-length lumber to be supported on both sides of the blade, while the measuring rail and adjustable stops provide fast, repeatable cuts for production work.
The equipment shows normal cosmetic wear, sawdust, and signs of commercial use but appears to be a substantially complete installation. The entire system will be sold together with the saw, conveyors/rails, measuring equipment, dust collection/vacuum, mounting hardware, bolts, and accessories shown.
Machine information:
Manufacturer: Original Saw Company
Model: 3541
Serial: 20190403715
Power: 230V, 3-Phase, 50/60 Hz
Motor Full Load: 15.2A
Made in USA
Ideal for: cabinet and millwork shops, lumberyards, framing operations, truss shops, commercial woodworking facilities, door/window manufacturers, and other production environments requiring repetitive crosscuts of long material.
