Description

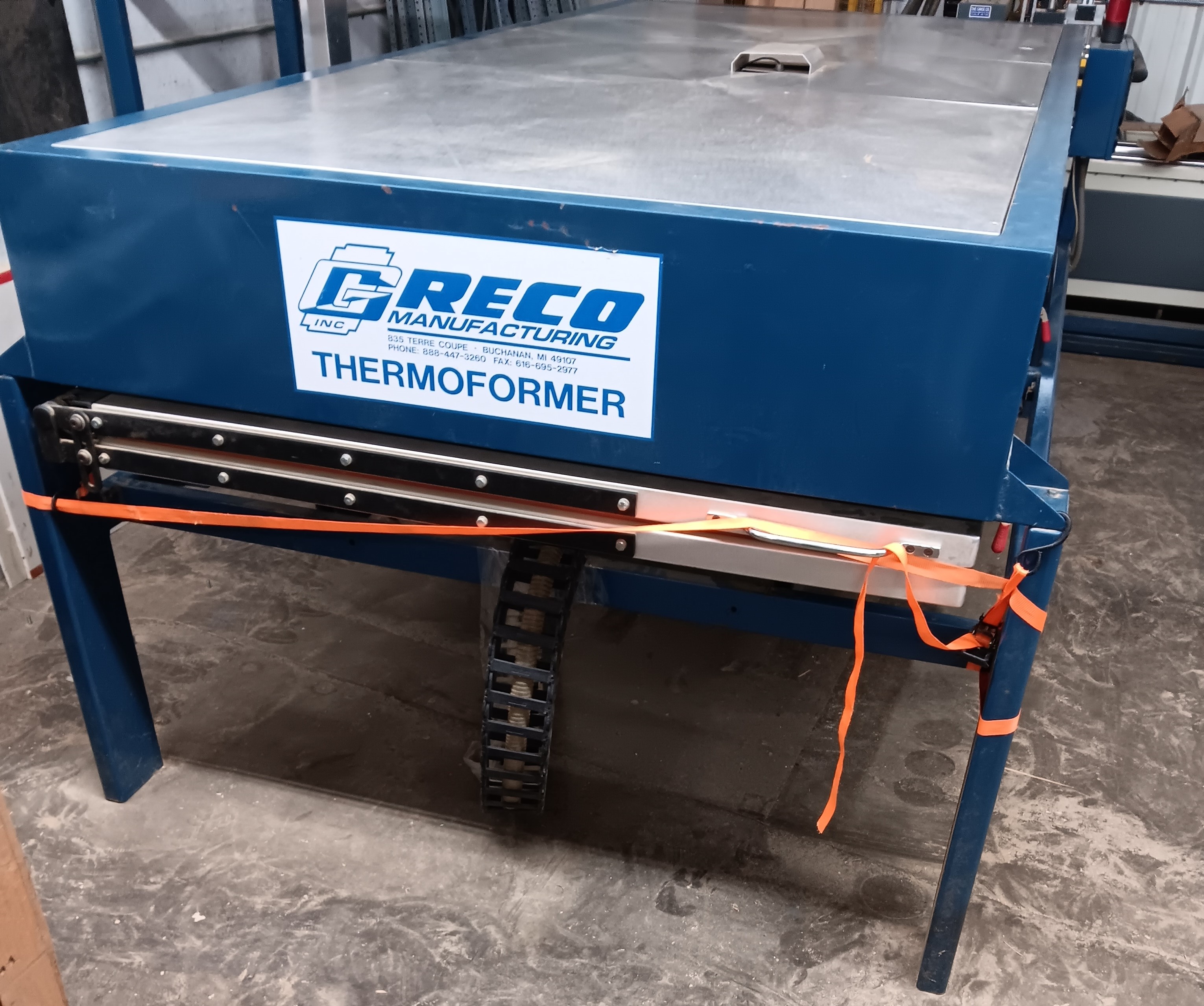

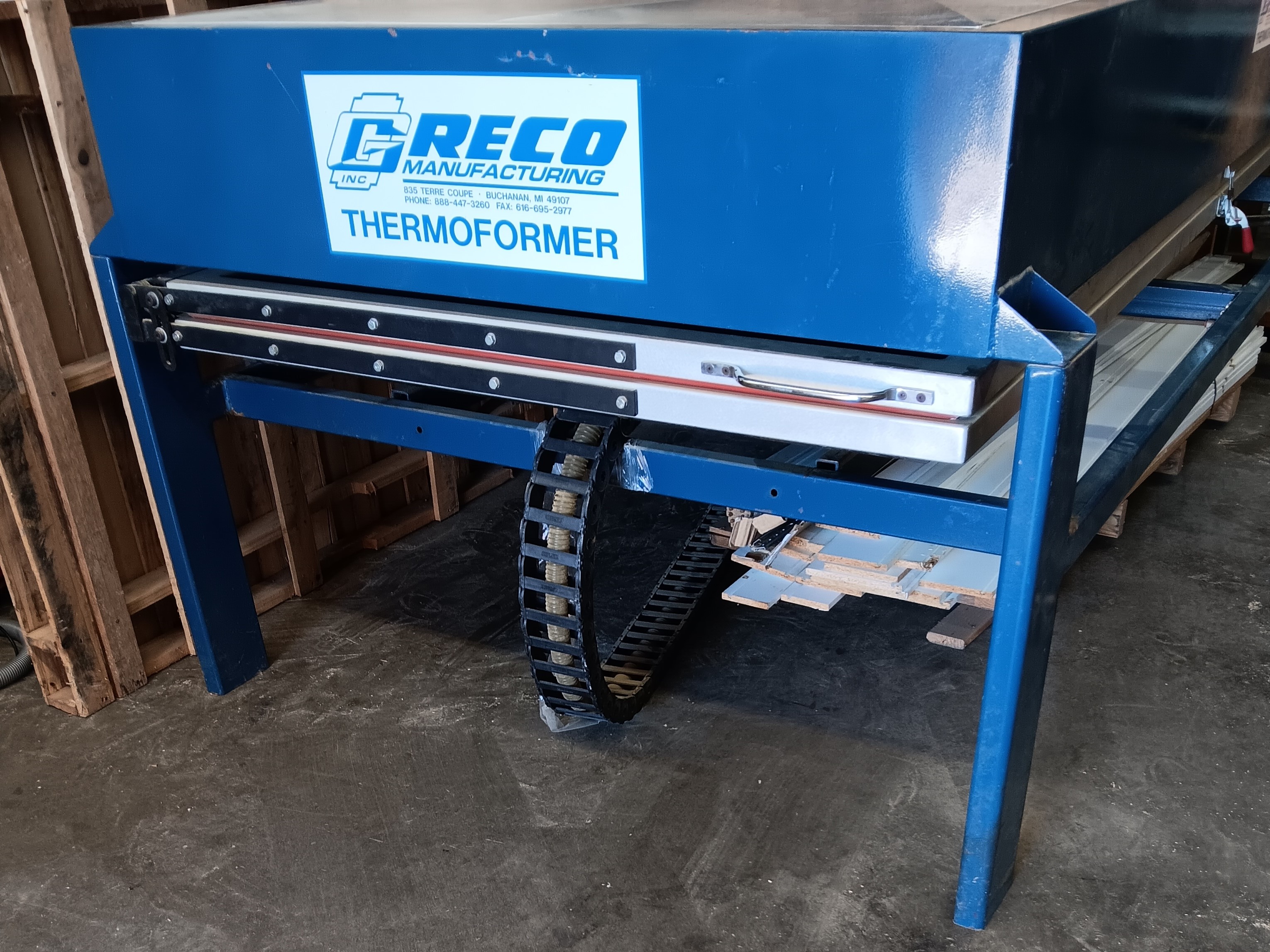

Greco/Evans VP410-S Dual 4x10 Shuttle Thermoformer Press – Ultra Low Hours, Spare Bulbs & Extras
Selling a clean, exceptionally low-hour Greco (Evans Machinery design) VP410-S double-ended 3D membrane vacuum press. Excellent machine for 3D thermofoil doors/drawers, low-profile 3D laminating, shallow-radius curved components, or flat cold-press veneer and HPL panels using vacuum pressure. Evans Machinery acquired the Greco line, ensuring full ongoing parts availability and factory support.
Machine History & Low-Hour Provenance:
This unit was originally purchased by a shop that closed within its first 1–2 years, and I have been the second owner for the last 18 years. We operated primarily as a custom closet manufacturer, where 90%+ of production consisted of flat melamine panels. Thermofoil processing was reserved strictly for occasional decorative Shaker/raised-panel drawer fronts or small door sets (typically 1–2 tray loads per project, running less than once a month on average).
Unlike presses coming out of high-production kitchen cabinet door plants that ran multi-shift production daily, this machine has extremely low operating hours on the Busch vacuum pump, heating elements, PLC relays, and shuttle mechanisms.
Reason for Sale:
Our shop focus has transitioned entirely into commercial High-Pressure Laminate (HPL) casework, retail displays, and custom fixtures. Furthermore, our current facility lacks a permitted spray booth setup for 3DL adhesive prep. The machine is simply occupying high-value floor space that we need to clear for our laser and metalworking expansion.
Key Specifications:

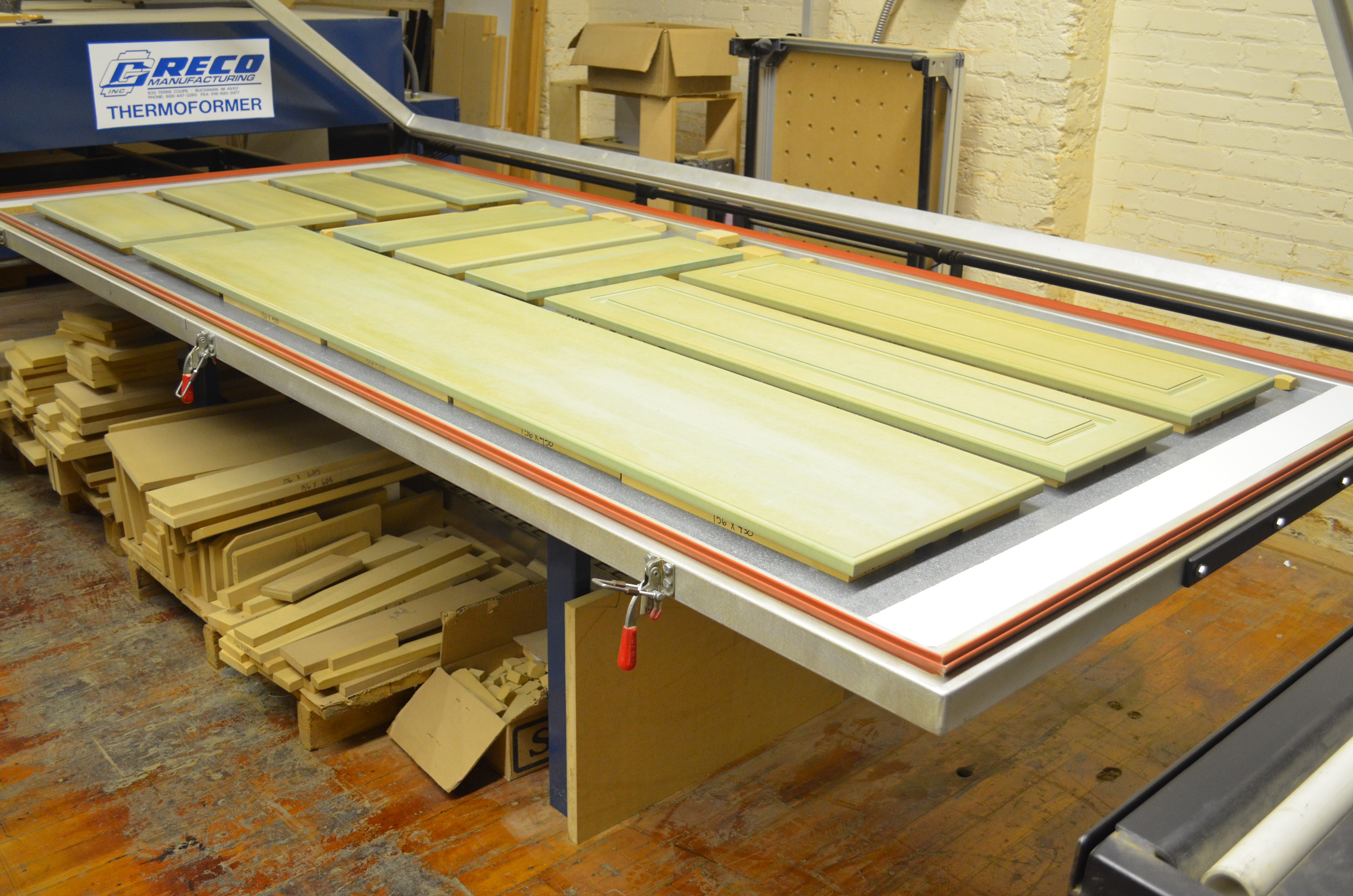

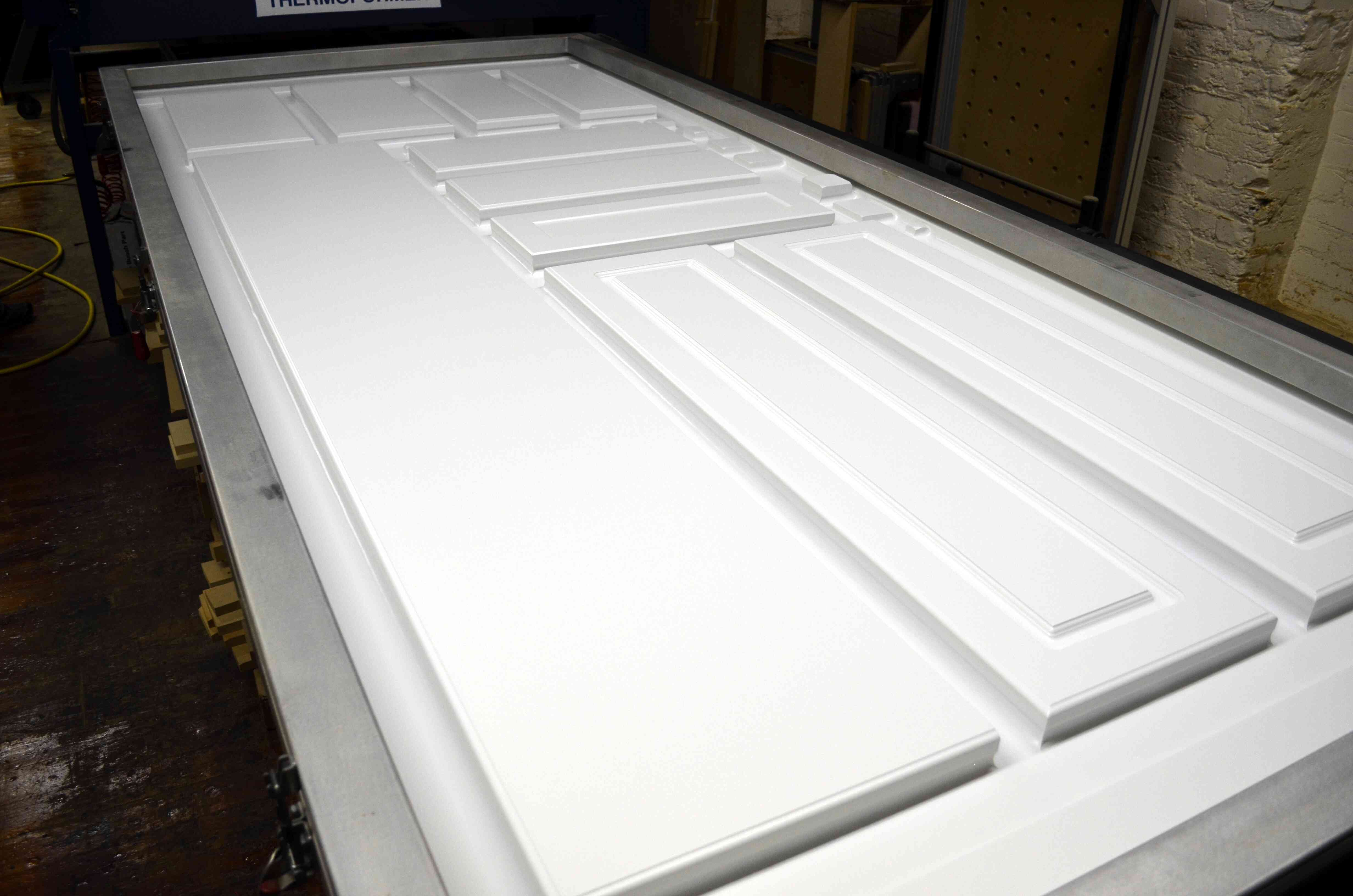

Capacity: Dual 4' x 10' shuttle tables (48" x 120" actual working area per tray; 57" x 130" outer dimension).
Oven: Central stationary top-only IR oven with Raytek non-contact infrared surface temperature sensor.

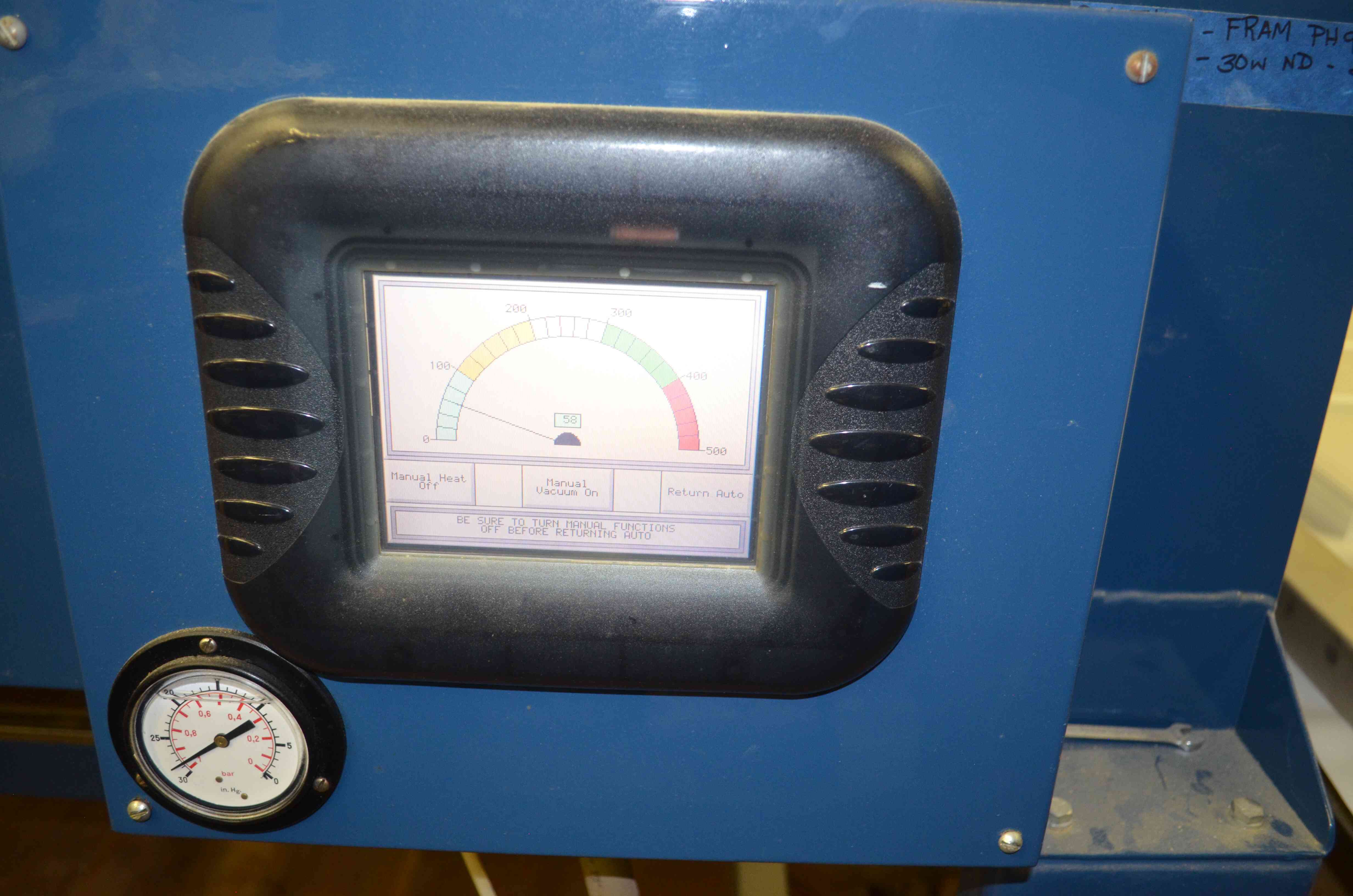

Controls: Touchscreen PLC storing up to 20 programmable recipes (pre-vac, soak, pull, and cool cycle timing).
Vacuum System: 3 HP Busch direct-drive rotary vane vacuum pump with dual-tray drag chain (cat-track) line routing.
Electrical: Configured for 208V / 3-Phase / 60Hz (~54–60 FLA).
Included Tooling & Extras:
Dual Membranes: Includes standard EPDM membrane PLUS a heavy-duty, high-temp silicone membrane ($1,000+ value).
Spare Parts & Spray Gear: Includes spare Dura-Lamp infrared bulbs, spare Busch vacuum pump oil filter.
Staging & Material Gear: Includes two multi-roll vinyl rack stands, adhesive supplier/tech support contact information, and a large selection of custom MDF staging pedestals/spacers in various sizes.
Condition & Logistics:
Currently unhooked and prepped for moving/loading in our commercial shop (easy dock-height access for flatbed loading). Full operational video showing complete automated heating, shuttle movement, and vacuum cycles is available upon request.
Price: $12,500 OBO
Terms: As-Is, Where-Is. Buyer handles rigging and transport (we can assist with dock loading).
