Two Gorbel Bridge Cranes with Schmalz Vacuum Lifts

Two Gorbel Bridge Cranes with Schmalz Vacuum Lifts

Both machines where in perfect working order when removed from duty. They are disassembled now.

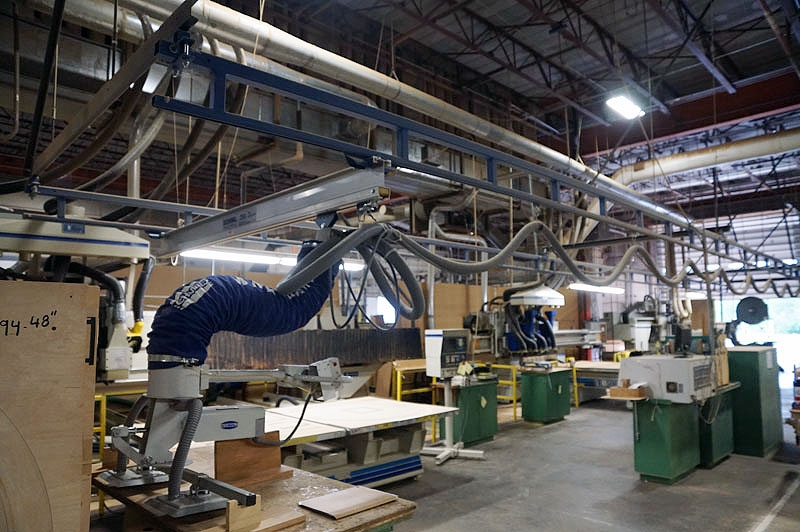

Machine #1:
(1) Gorbel bridge crane
S/N G103361
Year 2007
250 lb working capacity
120" wide aluminum crane bridge beam
Total length of crane guide rails 65 ft
(Guide rails are in three sections bolted together)
Crane is currently mounted at a 105" working height
Guide arms are currently mounted with threaded rod and steel cross supports from the building ceiling

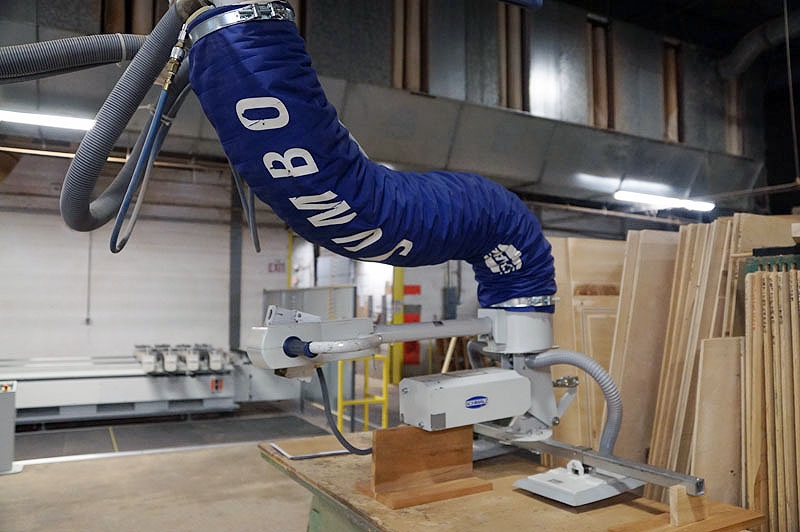

(1) Schmalz Jumbo Ergo vacuum lifter
Year 2007
90 kg (198 lb) working capacity
9" x 12" adjustable vacuum lifting pods
Max spread of pods 47"
8" diameter lifting tube with 70" lift stroke
Adjustable hover height
Pneumatic tilting cylinder head attachment with push button controls
Handle bar vacuum lifter controls
Top rail mounted 4.8 HP, 230/460 volt three phase vacuum pump
Rated for 14.7" Hg suction

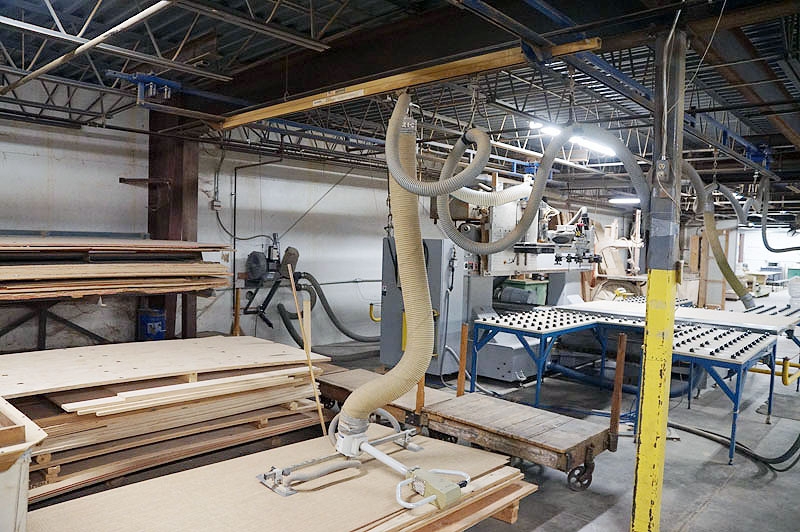

Machine #2:
(1) Gorbel bridge crane
250 lb capacity
140" wide bridge
25 ft long bridge guide rails
The rails are currently hung at 103" from the floor
The guide rails are bolted to the building joists

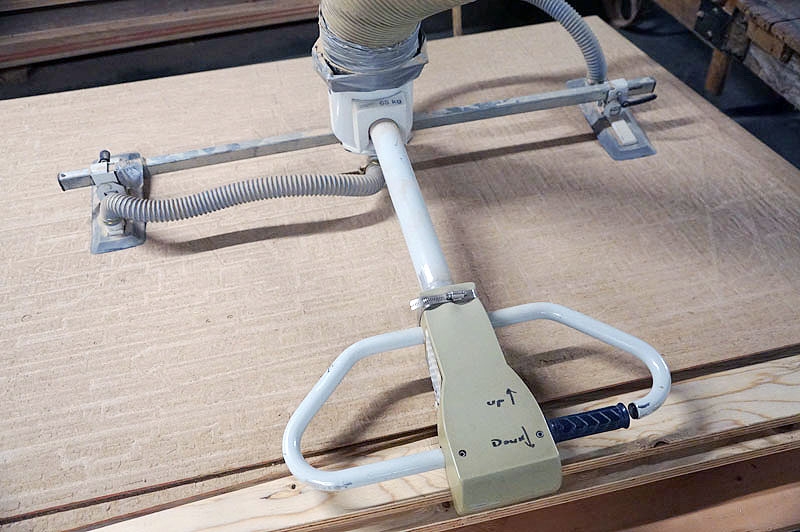

(1) Schmalz jumbo ergo vacuum lifter
65 Kg (143.3 lb) lifting capacity
4" x 11" adjustable vacuum pods
48" max spread of pods
Handle bar operator controls
Beam mounted vacuum pump
3.6 kw (4.8 HP), 230/460 volt three phase pump motor
(1) inlet filter canister

More images available.
