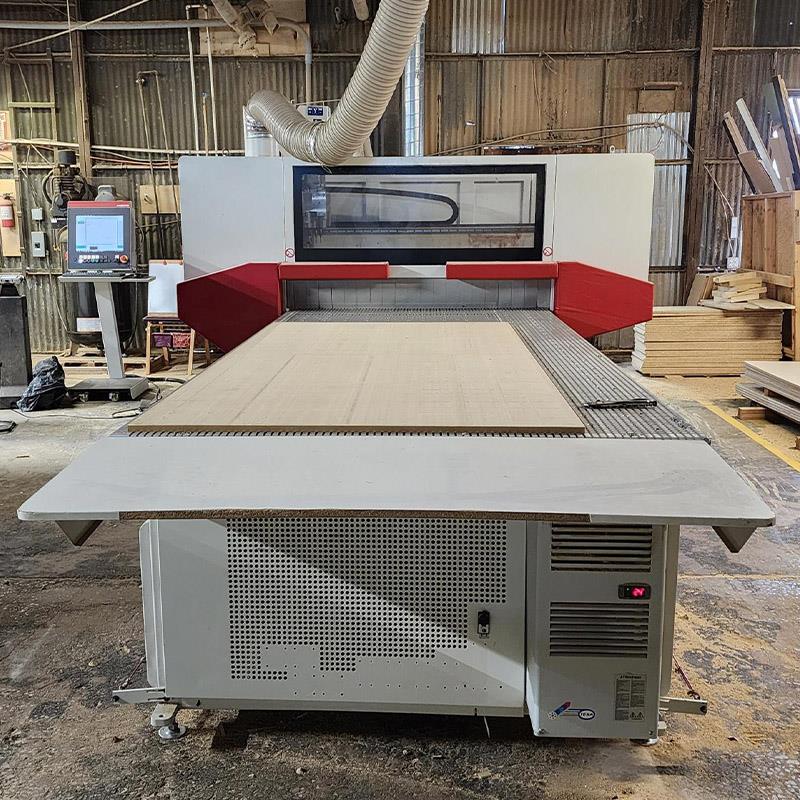

Single 5' x 12' traveling "Bridge Gantry" and stationary aluminum dual vacuum table with a MATRIX square grid pattern for fixturing parts.
Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining".
(8) Part location pop-up pins mounted on the table perimeter.
Working field: "X" Axis is 145.11" (3,686 mm); "Y" axis is 61.2" (1,555 mm); "Z" axis stroke is 9.8" (250 mm); max. material thickness 4" (100 mm). ≈≈ Positioning Speed:
"X" & "Y" Axis 115 FPM (35 MPM); "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system.
High precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screws "Z" axis; all axes ride on extra large precision profile linear guideways.
Boring Unit: 3 HP (2.2 kW) - 6,000 RPM motor; (7) vertical spindles on 32 mm centers, (5) in "X" axis & (2) in "Y" axis.
Machining: (1) 9 HP (6.7 kW) Air-cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.
(1) 14-Position ATC tool rack mounted to the machine base.

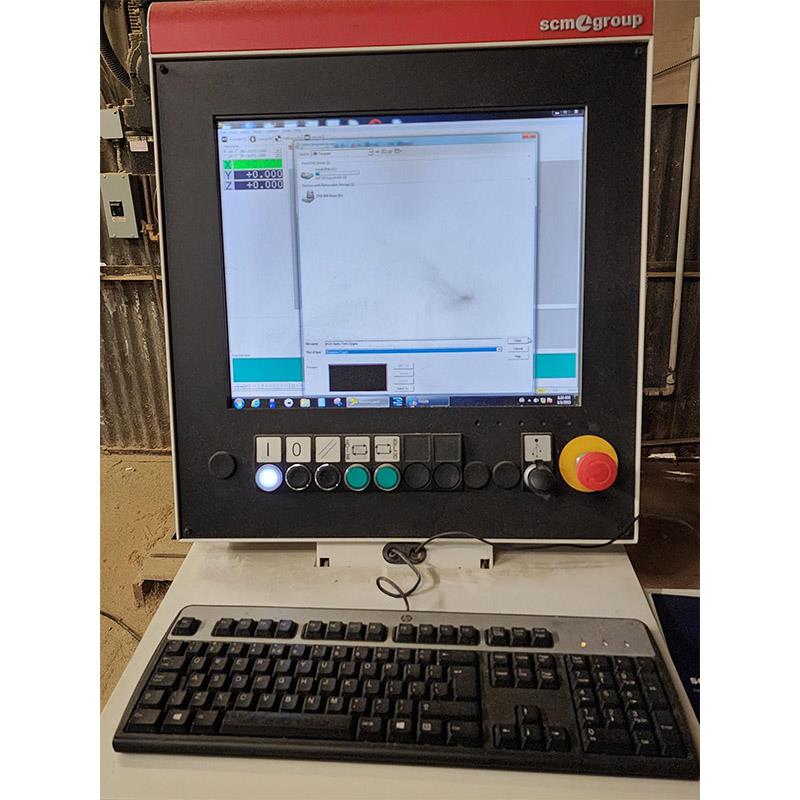

Operator & Machine Control: PC Front End with: "XILOG Plus" + Windows "XP Pro" Operating System; 17" high resolution LCD; ergonomic keypad.
*** Please click the link for full description***

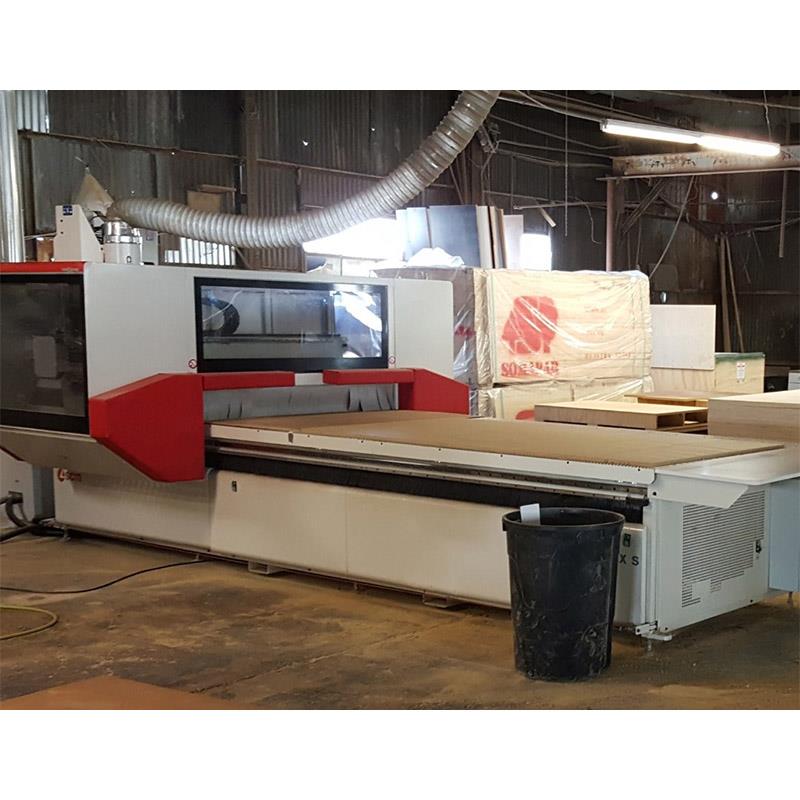

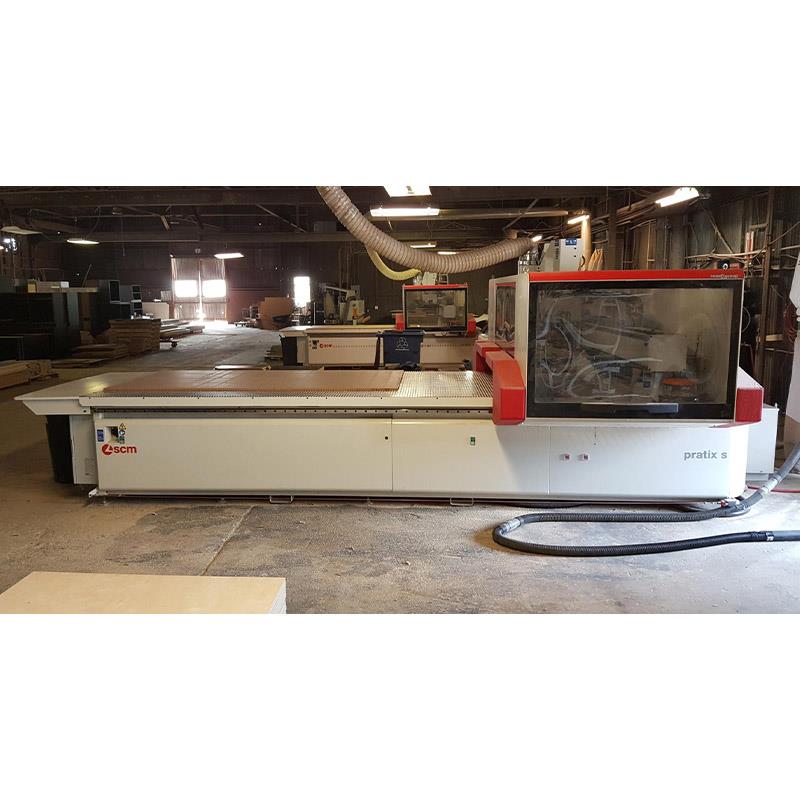

Scm PRATIX S 15 B Flat Table Machine
