MAIN TECHNICAL FEATURES
Large Work area with 4 Rounded Air Tables
Main Saw Motor: 21,3 kW/60 Hz (30 HP)
Scoring Saw Motor: 2,6 kW/60 Hz (3,6 HP)
Automatic Controlled Main Pressure Beam
"Quick Change" Blade System for Motor & Scoring Blade

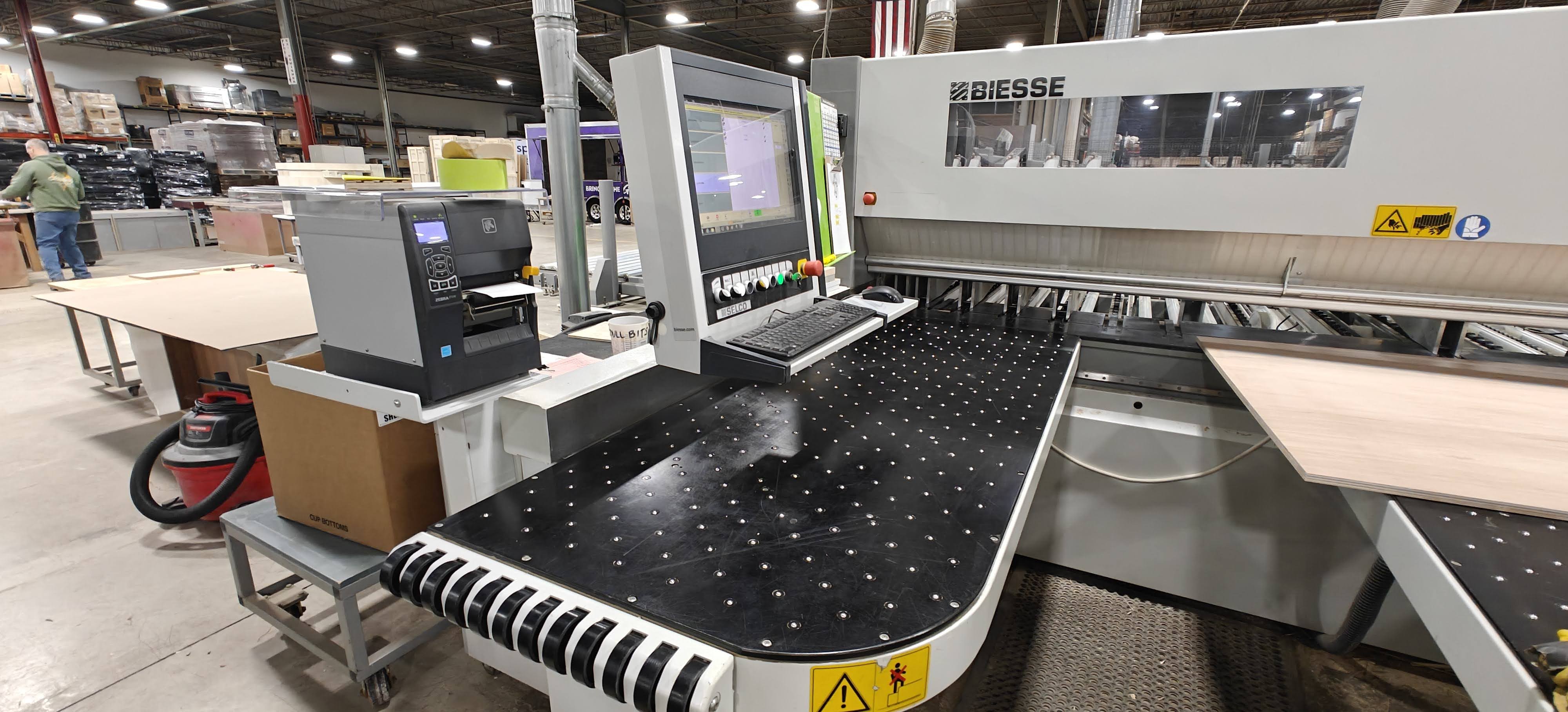

PC-Based Control with Color Monitor, Keyboard, Mouse
Windows Operating System
Program Fence with (7) Grippers
Twin Pusher 2.1 System with Additional Gripper
Max Saw Blade; 400mm (16")
Max Scoring Blade; 200mm (8")
Selco Quickchange Blade System
Maximum Length of Cut; 4500 mm
Maximum Saw Blade Projection; 108 mm
Maximum Gripper Opening; 100 mm
Maximum Size of Boards on Lift Table; 4500 x 2200 mm
Maximum Height of the Pile of Boards; 630 mm
Powered Rollers on Infeed Table & Lift Table
Label Printer on Support Stand Included
Quick-Opti Software Included
OSI Plus Interface
Machine can be used in Windstore K1, in a Cell, or as a Stand Alone Machine
