Only has 186 Hours of use!

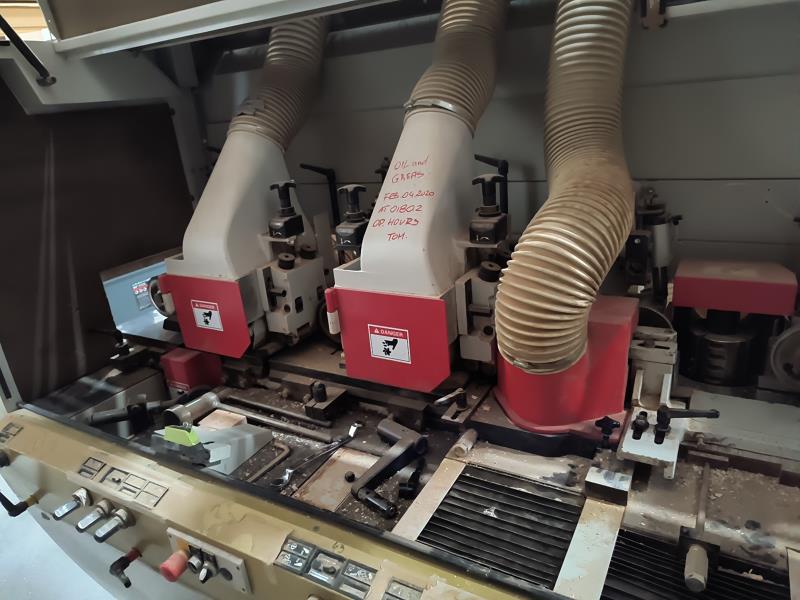

6-Head (B-R-L-T-T-B), working cap. 230 mm x 120 mm (9-1/16" x 4-3/4"). ≈≈ Head sequence: 1. Bottom 7.5 KW (10 HP), 2. right 7.5 KW (10 HP), 3. left 7.5 KW (10 HP), 4. top 11 KW (15 HP), 5. top 14.9 KW (20 HP) and 6. bottom 7.5 KW (10 HP) motor. Mechanical brakes on all motors.

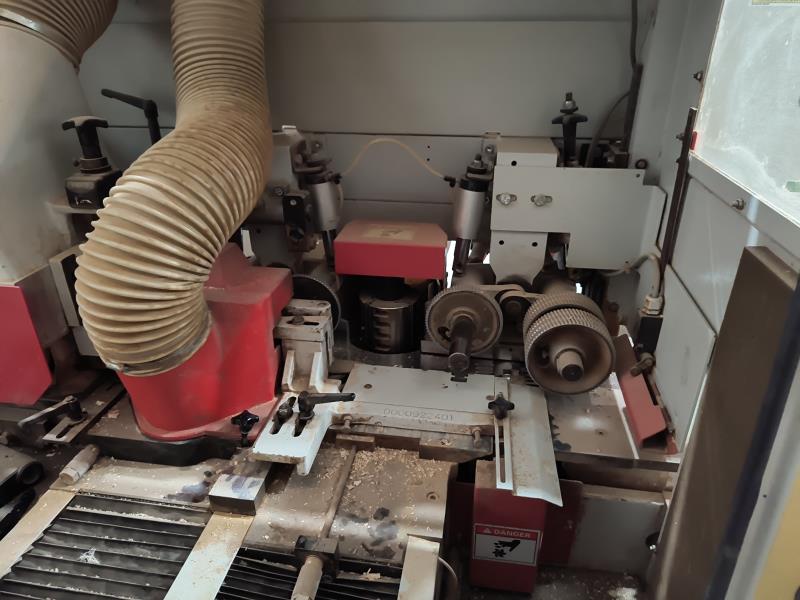

Spindles: Dia. 40 mm (1-9/16") with cutterhead speed of 6,800 RPM. Mechanical digital readouts on all spindles. Feed system: Overhead feed wheels with pneumatic pressure. Motorized feed beam height adjustment. Inverter controlled feed speeds up to 30 m/Min (98 FPM), driven by 4 KW (5.5 HP) motor.
*** Please click the link for full description***

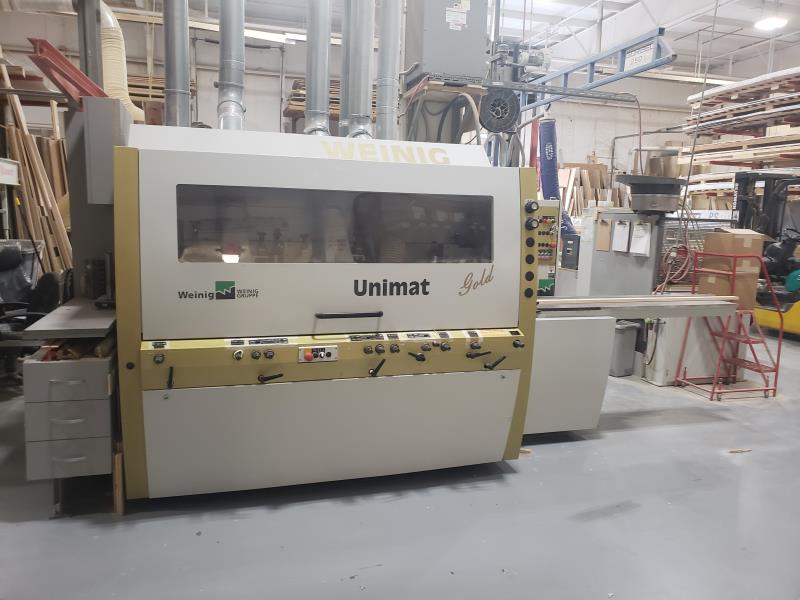

Weinig U GOLD Moulder
