12" Width cap.; 3/8" min. to 4-3/4” max. cutting depth; 14” min. stock length.
70 mm Dia. saw sleeve (one is included) with (2) keyways and the following spacers: (4) 15 mm, (4) 10 mm, (18) 1 mm, (10) 0.5 mm, and (8) 0.25 mm (see drawing after the "literature link); with 12” usable cutting width.

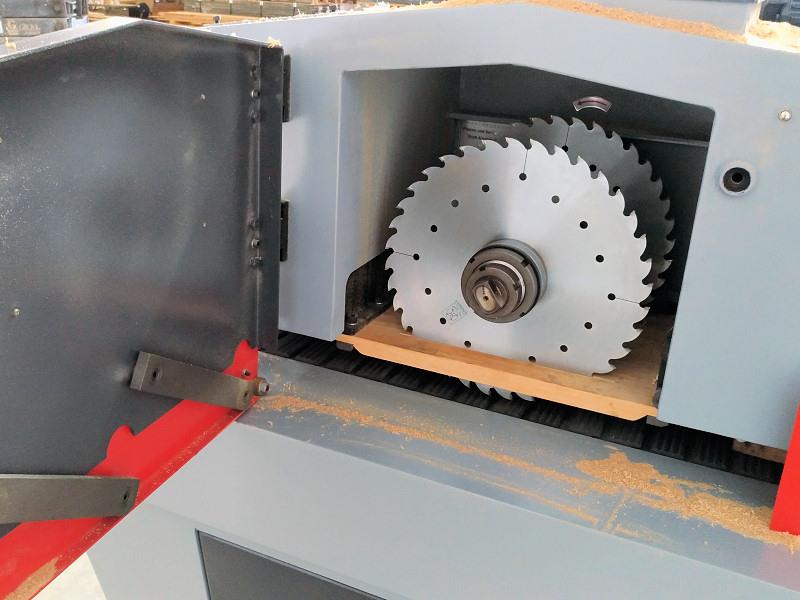

Accepts saw blades from 12” - 14” dia.; arbor is powered by a 50 HP motor driving the spindle at 3,200 RPM.
Feed chain is powered by a 2 HP motor with variable chain speeds from 30 - 100 FPM; feed chain is 12” wide.
Table: 30” Wide x 62” with 12” between the column and the 1st saw blade. - Integrated 6” dia. dust extraction connection...
Designed for high quality Production Line use. CAM-WOOD’s Rip Saws are manufactured to precise tolerances and feature the newest designs for operator safety and volume production.
*** Please click the link for full description***

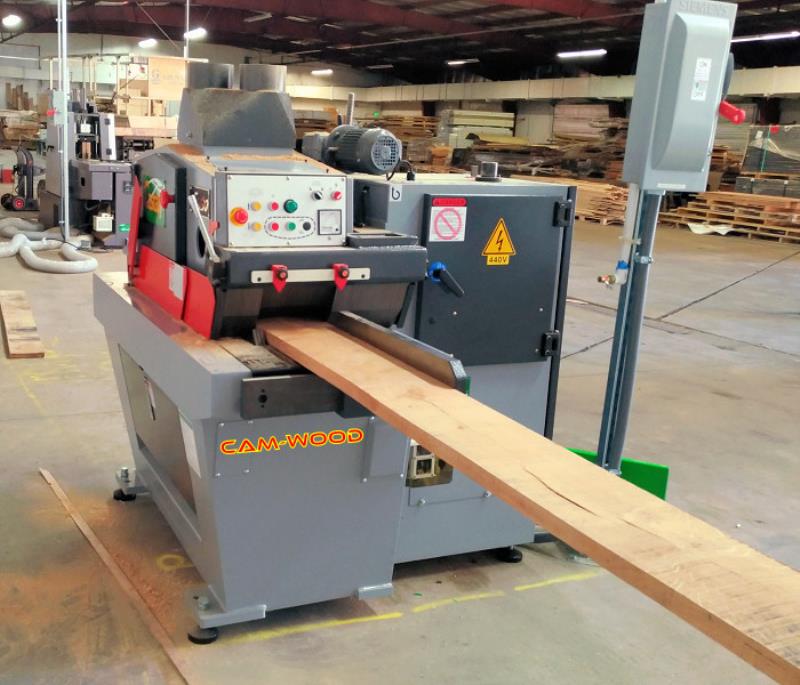

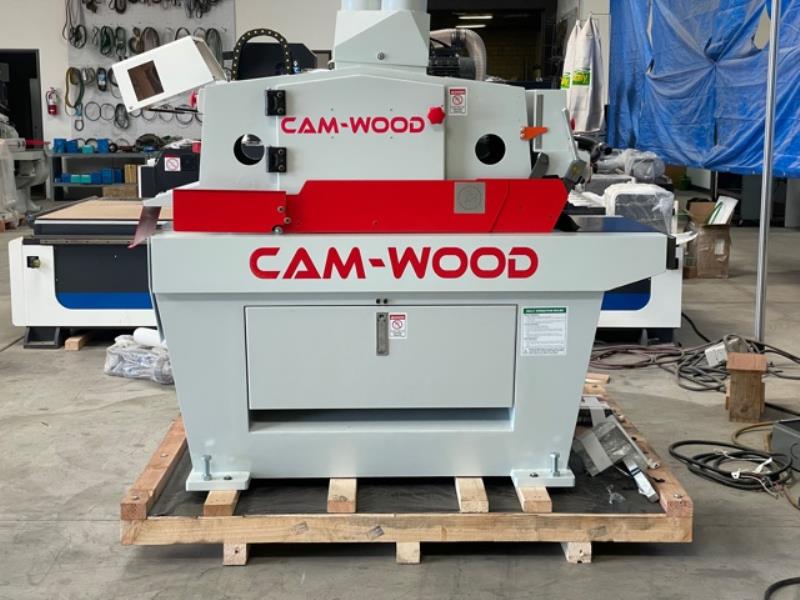

Cam-Wood TRS 1451 Dip Chain Gang Rip Saw
