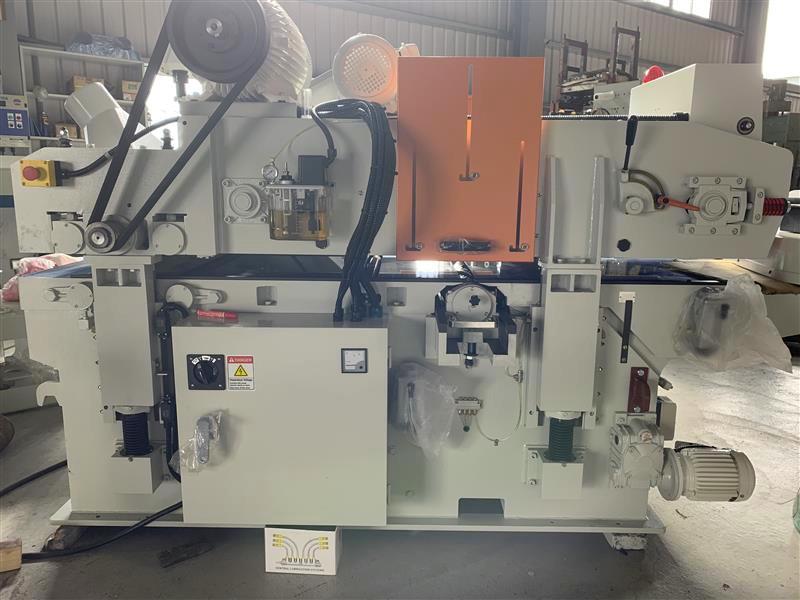

8" x 24" Capacity Planer for accurate and powerful two-sided planing in one pass.
Includes (1) set of Spiral Insert Cutterheads with (1) set of 15 x 15 x 2.5 mm Carbide Knives with (4) Cutting Edges.
Specifications:
25” Max. Planning Width, 3/8" to 8” Max. Planning Thickness. 1/4”Max. Cutting Depth. 12” Min. Planning Length. 15 to 70 FPM Feed Speeds (Variable).
4,200 RPM Cutter Head Speed. Spiral Carbide Insert Cutterheads with 15 x 15 x 2.5 mm carbide insert knives with (4) cutting edges

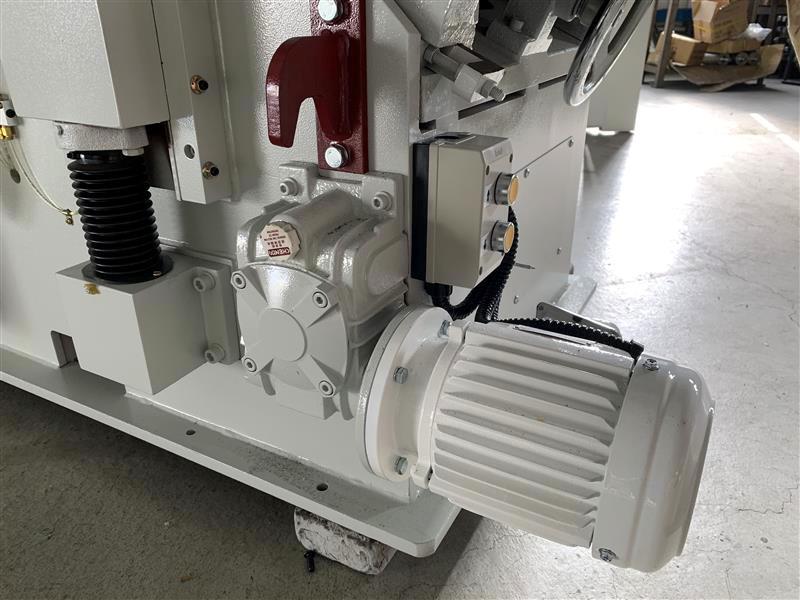

25 HP Top Head Motor. 20 HP Bottom Head Motor. 5 HP Feed Motor and 1/2 HP Elevation Motor. Net weight 7,200 Lbs.
Equipped with:
Standard equipment includes Automatic Thickness Controller for quick, accurate thickness adjustments.
Top and bottom Spiral Carbide Insert Cutterheads with 15 x 15 x 2.5 mm Insert Knives for accurate and powerful two-sided planing in a single pass.
The Planer’s table surface is precision ground then chrome-plated and polished to a mirror finish; wear resistance, easy to clean and maintain.
*** Please click the link for full description***

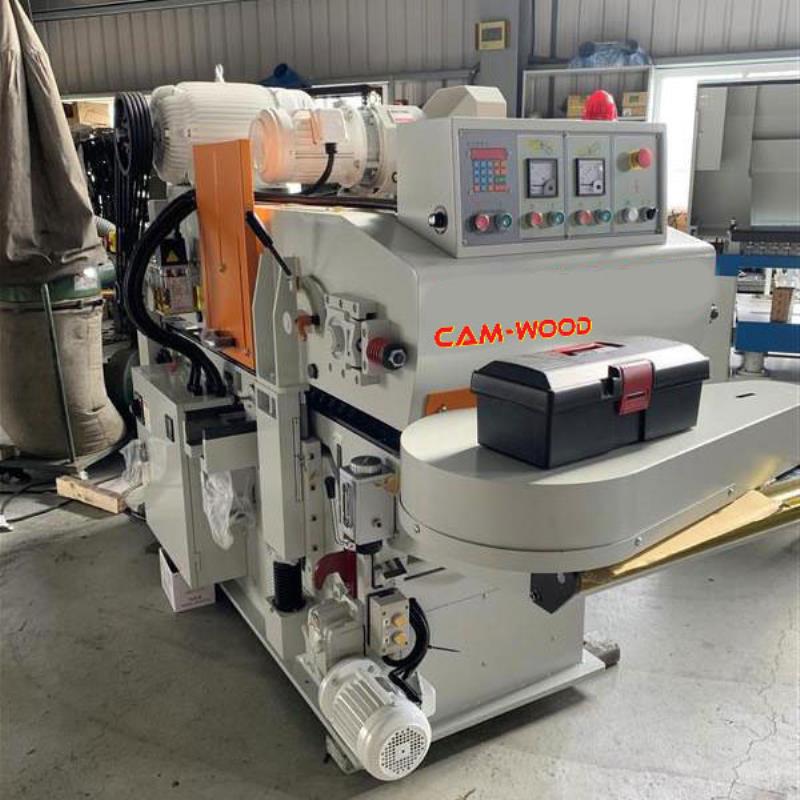

Cam-Wood PL-24-SX Top & Bottom Planer
