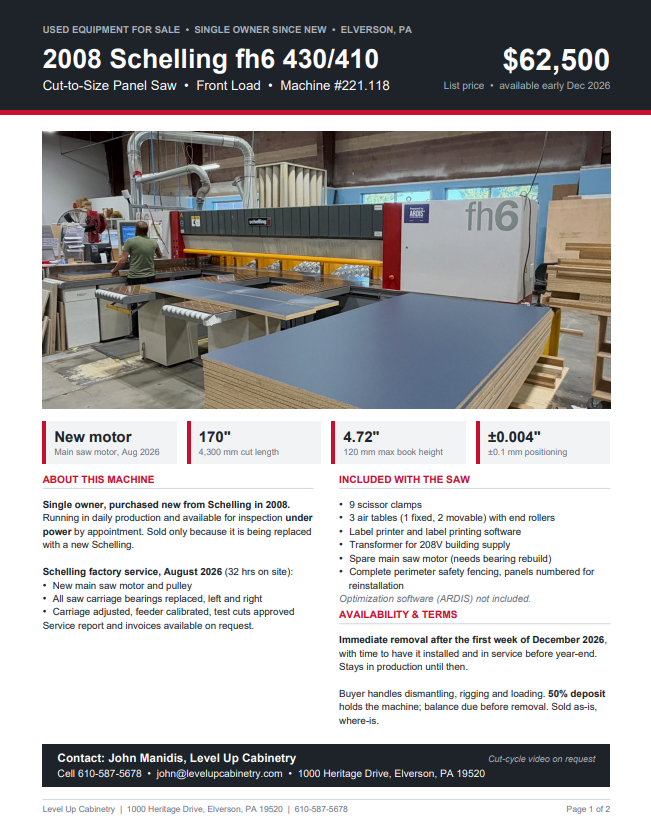

Description
Single owner, purchased new from Schelling in 2008. Running in daily production and available for inspection under power by appointment. Sold only because it is being replaced with a new Schelling.
Schelling factory service, August 2026 (32 hrs on site):
• New main saw motor and pulley
• All saw carriage bearings replaced, left and right
• Carriage adjusted, feeder calibrated, test cuts approved
Service report and invoices available on request.
INCLUDED WITH THE SAW
• 9 scissor clamps
• 3 air tables (1 fixed, 2 movable) with end rollers
• Label printer and label printing software
• Transformer for 208V building supply
• Spare main saw motor (needs bearing rebuild)
• Complete perimeter safety fencing, panels numbered for
reinstallation
Optimization software (ARDIS) not included
AVAILABILITY & TERMS
Immediate removal after the first week of December 2026, with time to have it installed and in service before year-end. Stays in production until then. Buyer handles dismantling, rigging and loading. 50% deposit holds the machine; balance due before removal. Sold as-is, where-is.

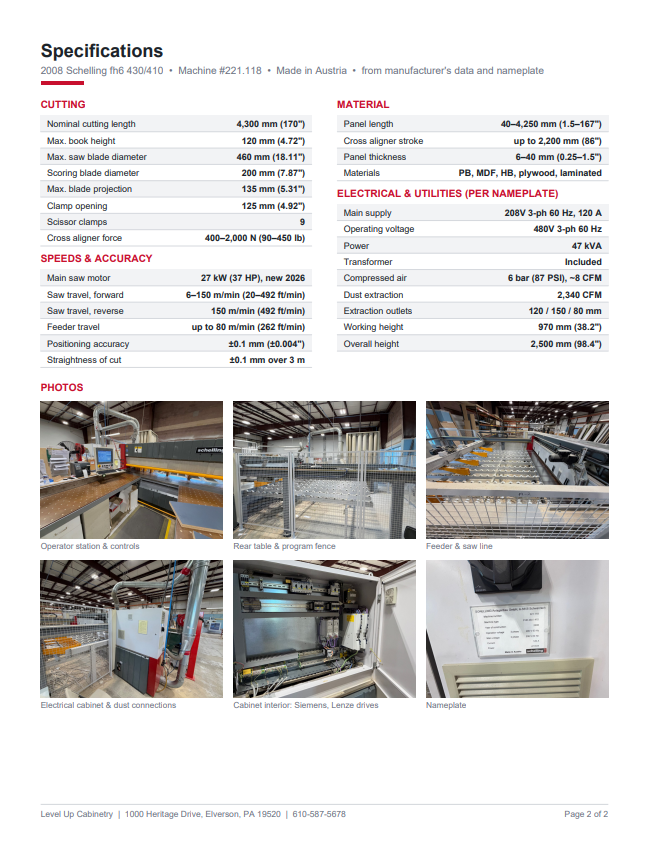

CUTTING
Nominal cutting length 4,300 mm (170")
Max. book height 120 mm (4.72")
Max. saw blade diameter 460 mm (18.11")
Scoring blade diameter 200 mm (7.87")
Max. blade projection 135 mm (5.31")
Clamp opening 125 mm (4.92")
Scissor clamps 9
Cross aligner force 400–2,000 N (90–450 lb)
SPEEDS & ACCURACY
Main saw motor 27 kW (37 HP), new 2026
Saw travel, forward 6–150 m/min (20–492 ft/min)
Saw travel, reverse 150 m/min (492 ft/min)
Feeder travel up to 80 m/min (262 ft/min)
Positioning accuracy ±0.1 mm (±0.004")
Straightness of cut ±0.1 mm over 3 m
MATERIAL
Panel length 40–4,250 mm (1.5–167")
Cross aligner stroke up to 2,200 mm (86")
Panel thickness 6–40 mm (0.25–1.5")
Materials PB, MDF, HB, plywood, laminated
ELECTRICAL & UTILITIES (PER NAMEPLATE)
Main supply 208V 3-ph 60 Hz, 120 A
Operating voltage 480V 3-ph 60 Hz
Power 47 kVA
Transformer Included
Compressed air 6 bar (87 PSI), ~8 CFM
Dust extraction 2,340 CFM
Extraction outlets 120 / 150 / 80 mm
Working height 970 mm (38.2")
Overall height 2,500 mm (98.4")
