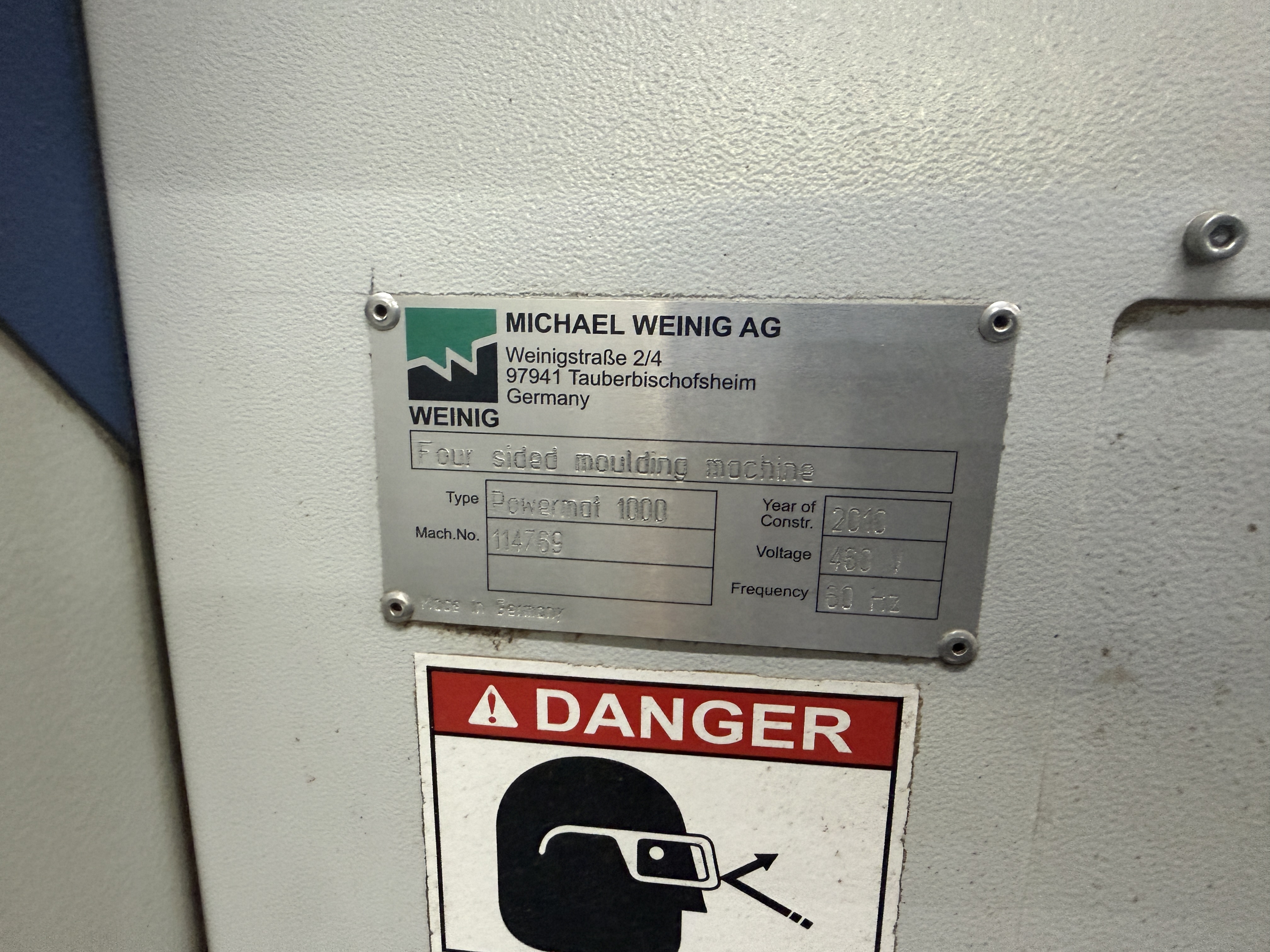

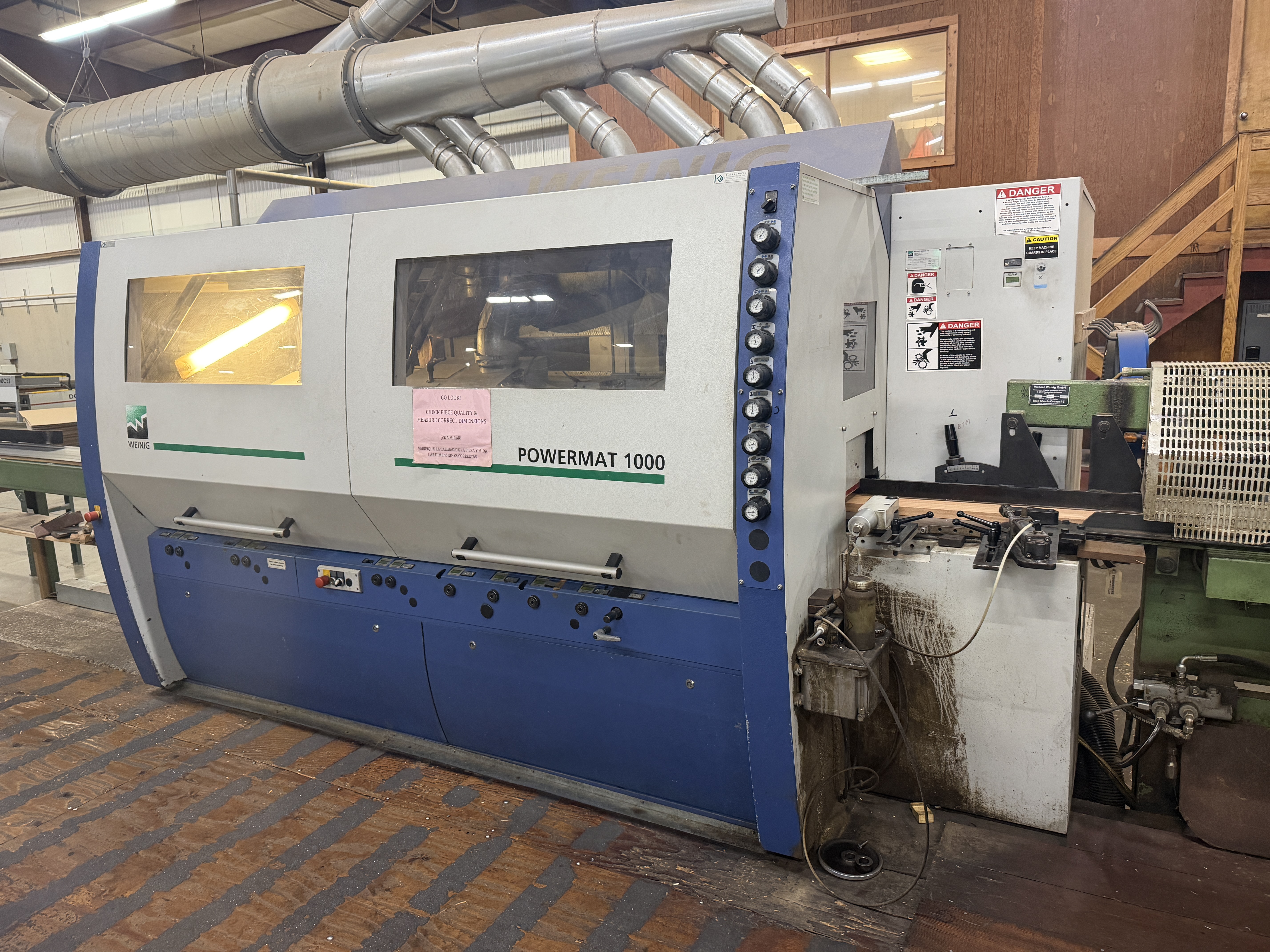

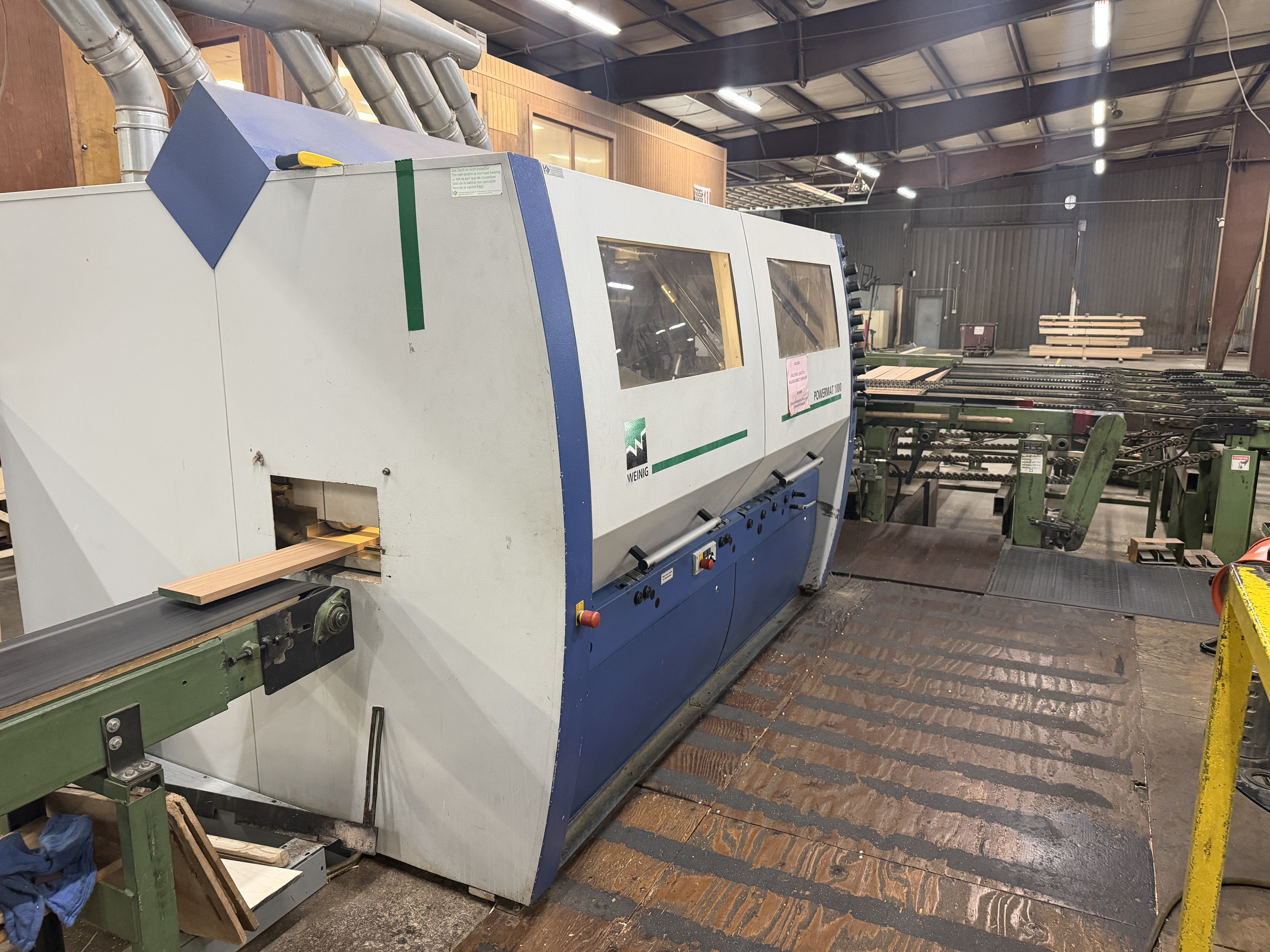

Weinig Model Powermat 1000 Six Head Moulder
Serial #:114769
Year: 2010
460v, 3ph
Width Capacity: 9" X 5"
Configuration: Bottom, Right, Left, Top, Top, Bottom
Cutterhead Motors:
First Bottom - 25HP (18.5kW)
Right Side - 15HP (11kW)
Left Side - 15HP (11kW)
First Top - 30HP (22kW)
Second Top - 40HP (30kW)
Second Bottom - 30HP (22kW)
PowerLock Style HSK Spindles (Spindles #1 is a standard 1-13/16" Arbor)
Head #1 Spindle Speed: 8,000 RPM
Heads #2 - #6 Spindle Speeds: 12,000 RPM

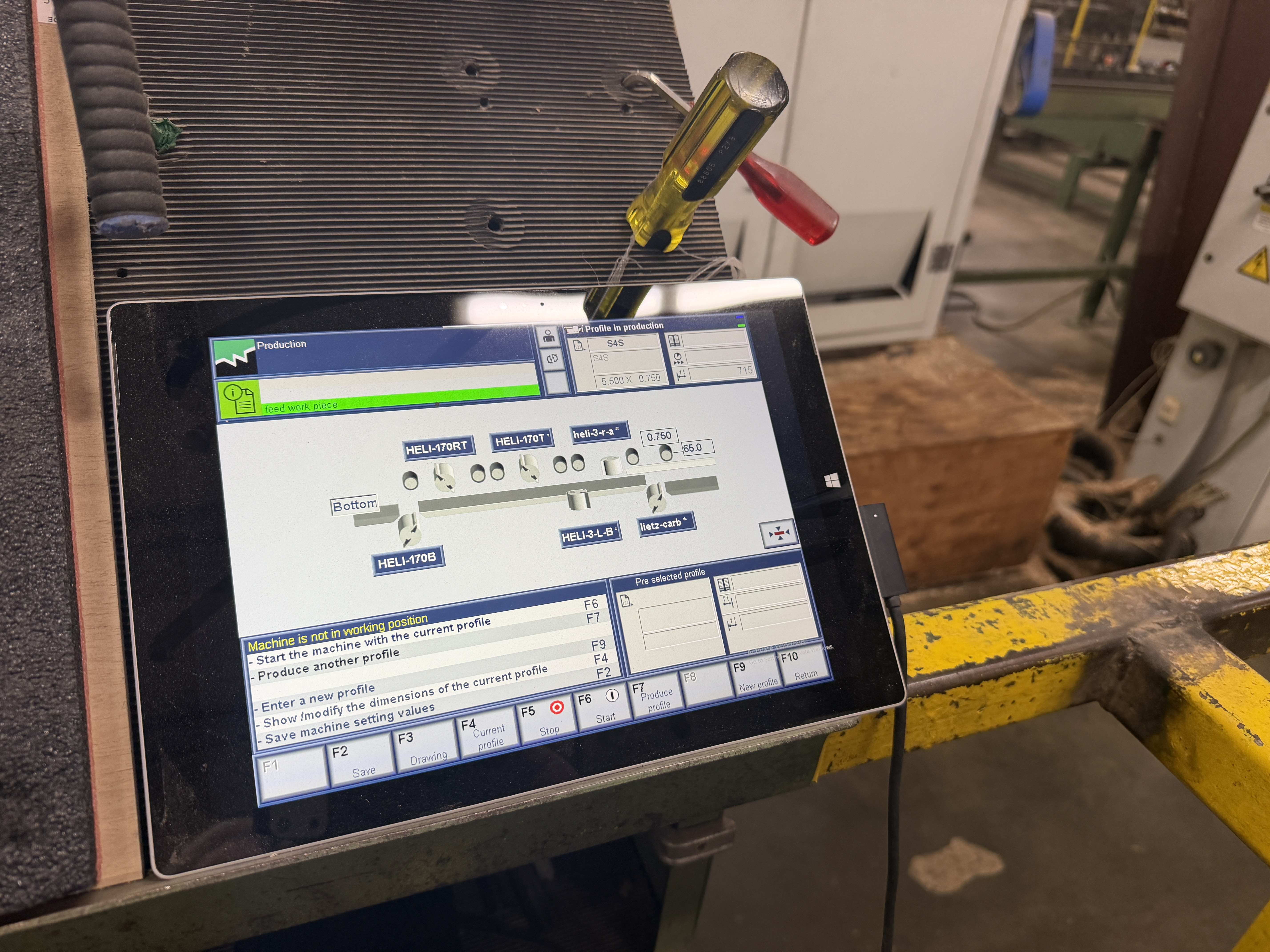

Touch-Screen User Interface
PowerCom PLUS
Feed Motor: 9.5 HP (7kw), Frequency Controlled 5-30 m/min (16-98 FPM)
Short Infeed Table 1.05m with Powered Rollers Above and in the Table
Digital Readouts for Ease of Set-up
Axial And Radial CNC Adjustment on spindles 2,3,4,5,6
Push-Button Controls for Heads & Feed
Sound/Safety Enclosure w/ Lights
- RT Stock Number: 471026
Weinig Model Powermat 1000 Six Head Moulder
