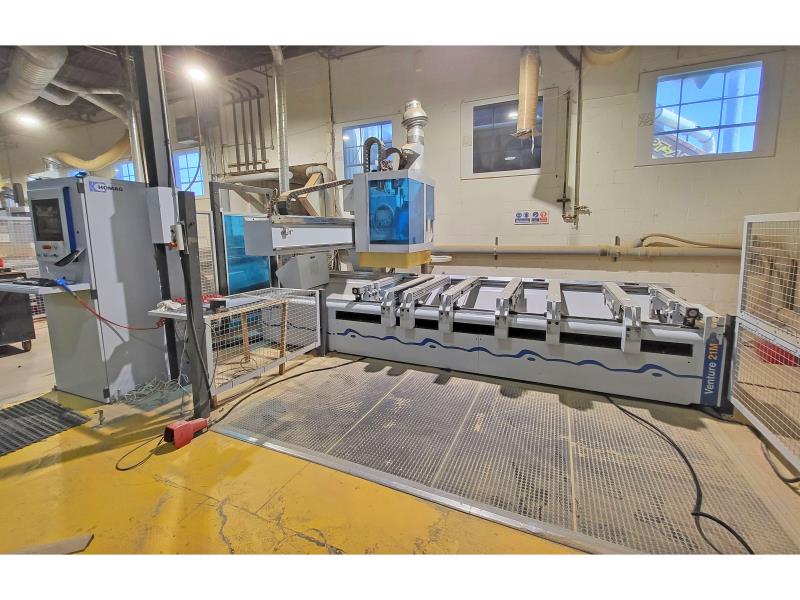

HOMAG BAZ 211 VENTURE 21M Machining Center with ATC & "C" Axis
Maximum Working field: X-Axis 3,225 mm (126.9"), Y-axis 1,500 mm (59"), Z-axis stroke 300 mm (11.8"), max work piece thickness 60 mm (2.4").
X-axis travel speed 80 MPM (262 FPM), Y-axis travel speed 60 MPM (197 FPM), Z-axis 40 MPM (131 FPM), AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration.

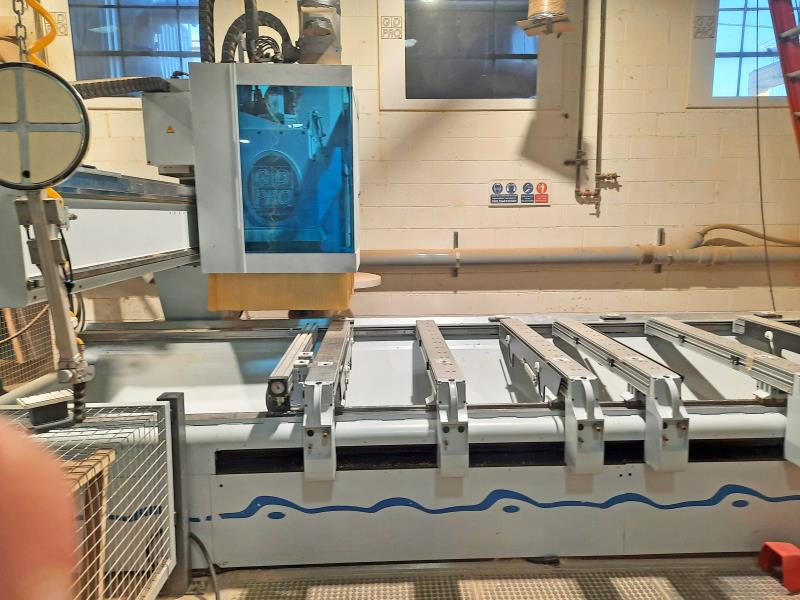

Working area: Working tables consist of (6) adjustable support rails, (2) vacuum cups per rail; laser unit to aid in the quick positioning of the vacuum cups.

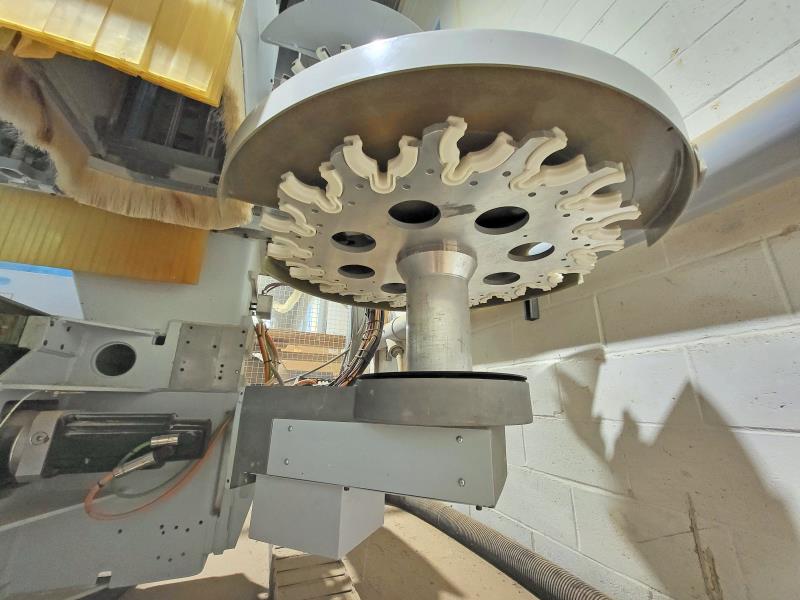

Machining unit: (1) 14.75 HP (11 kW) liquid cooled electro-spindle router (1,500 - 18,000 RPM), "HSK F63" quick change tooling; 12-position ATC automatic tool changer, "C" axis for 360ø horizontal processing.
Drilling Unit: Vertical drilling head with (17) individual vertical spindles, 11-spindles in "X", 7-spindles in "Y", spindles on 32 mm centers.
(1) saw blade aggregate, 125 mm dia; (1) 4-spindle lock case horizontal trimming unit aggregate.

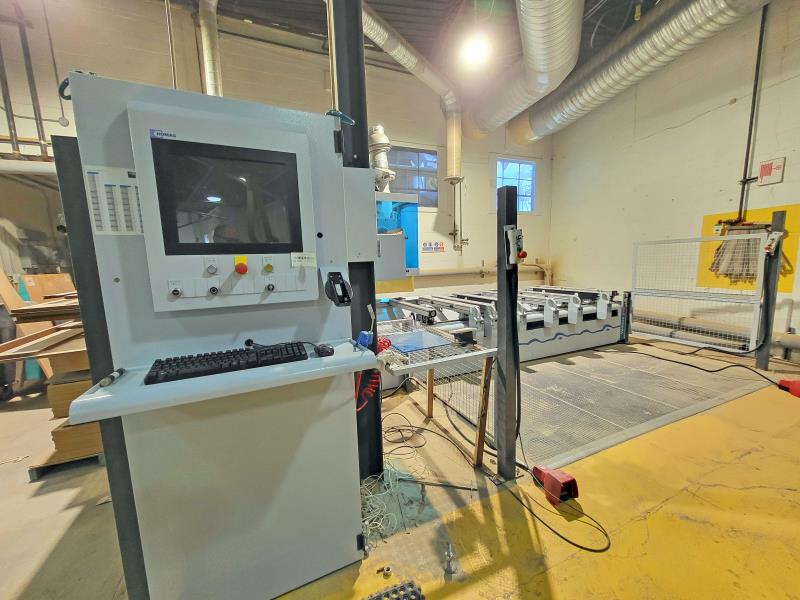

"POWER CONTROL PC 85" Numerical control with: "WOODWOP + BAZ" interface software, "WINDOWS NT"; icon driven with a graphical interface to allow the operator to quickly and efficiently create programs....
