High-Speed bridge type 5-axis CNC router with two moving worktables with an overall 228" x 148" Table size. The tables can be used single or synchronized together with head travel of: X-Axis 258", Y-axis 168", Z-axis 47.25".
Positioning speed: On X- and Y- axis 2,340 IPM, movable tables with loading and unloading on front side end, gantry with head assembly travels in a "shuttle style" across entire table which is divided into left and right working area.
Router head, air cooled 17.5 HP spindle motor with static inverter frequency changer, infinitely variable speed of 1,200 to 18,000 RPM, accepts "HSK 63F" spindle chuck with 1" collets, features C-axis with 360° rotation, rotates at a max. speed of 90ø/Sec, B-axis + or - 110°
(1) 16-Position ATC tool changer, "HSK 63F" for tool holders with tooling and aggregates,(includes 2 90° tools each with 2-spindle that are opposed) 300 mm tool dia. and 12 Lbs max. tool weight, mounted on a traveling gantry for an "on-the-fly" tool change.
Drilling unit: with 17-spindles 9-vertical + 8-horizontal @ 32 mm center distance. Additionally includes (1) drill unit for the underside of the machine. RENISHAW probe for X-Y-Z of the tools in the tool holder & parts location from zero.
*** Pleasee click the link for full description***

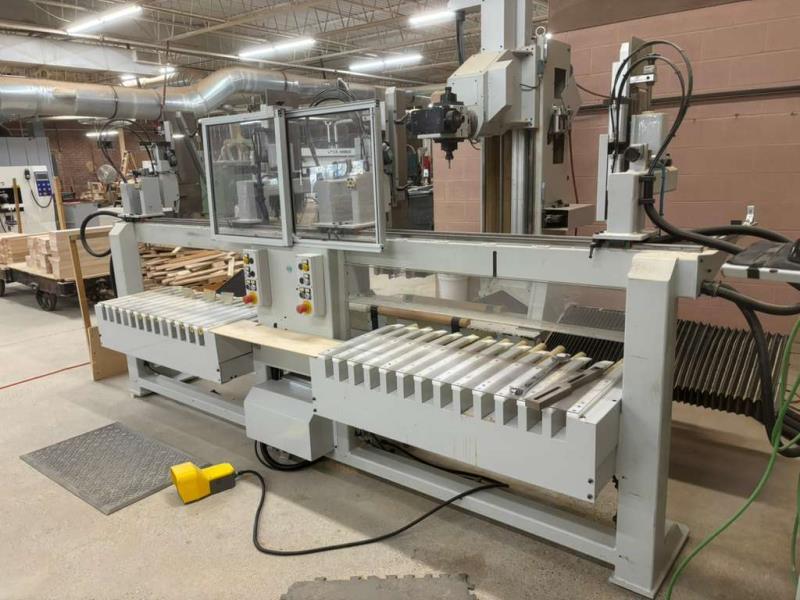

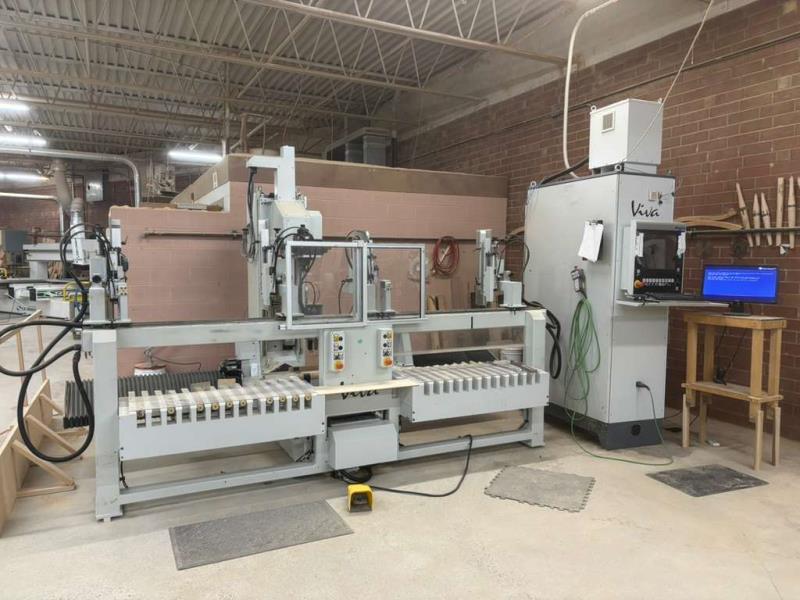

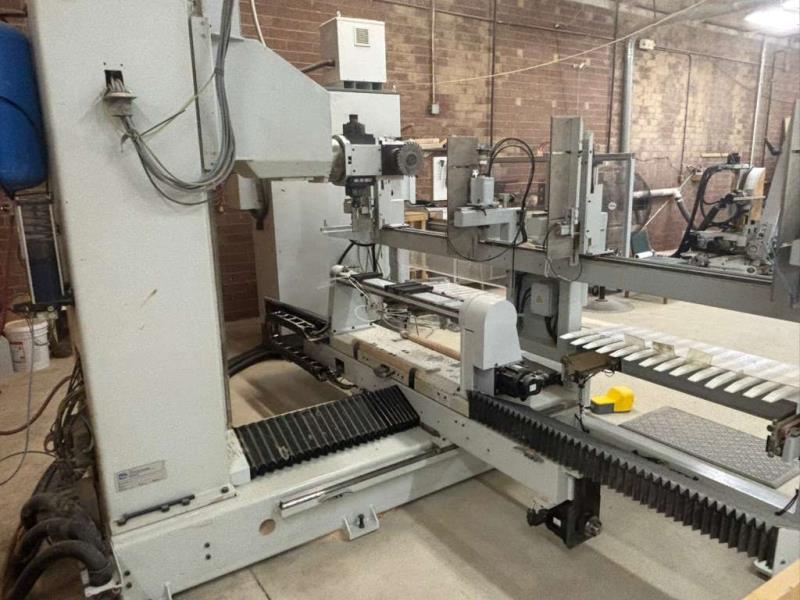

Cms Viva PF 6-B2-TUCU+GF Cnc Router (5-Axis)
