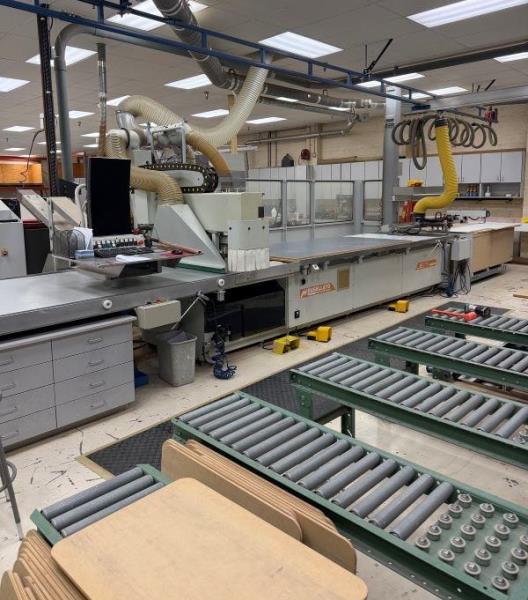

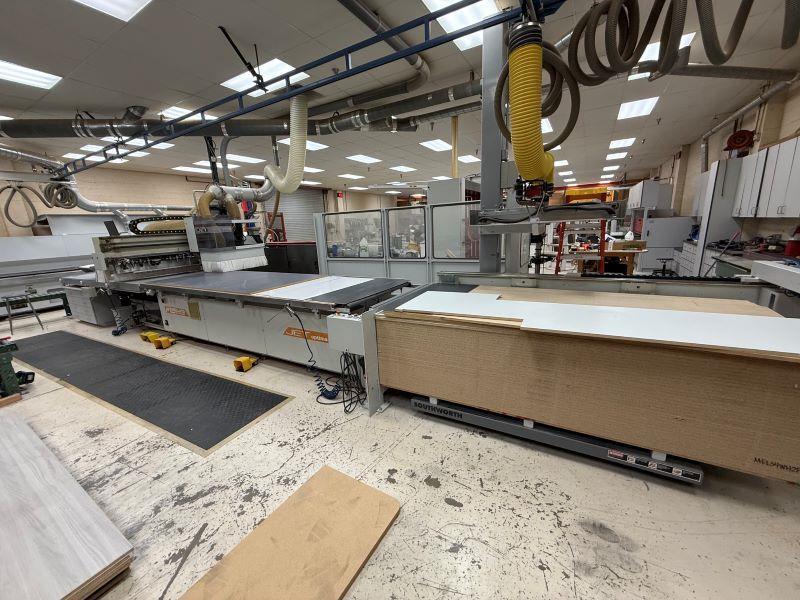

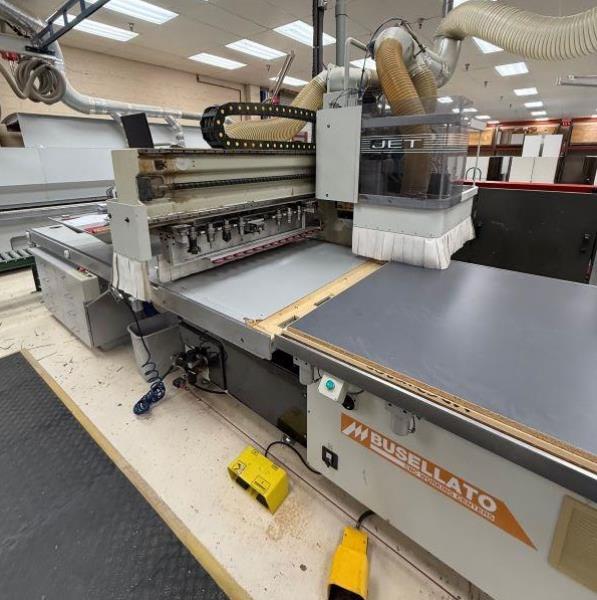

BUSELLATO JET OPTIMA RT21XL Flat Table Machine with Loading & Unloading
4' x 12' "MATRIX" Phenolic Flat Table design for "Nested Base" Manufacturing. ≈≈ Working cap.:
"X" Axis is 145.1" (3,686 mm), "Y" axis is 49.2" (1,244 mm), "Z" axis stroke is 11.8" (300 mm); max. material thickness is 5.1" (130 mm).
Positioning speed: "X" & "Y" axis at 197 FPM (60 MPM), "Z" axis is 49 FPM (15 MPM).
Worktable: "RAKE" sweeping system with an automatic loading/unloading device; staging table & dust extraction system that gives you the total material handling solution with a complete cycle time of under (30) Seconds.
(2) Independent working areas with locating stop pins on the front & rear LH & RH sides for positioning parts on the worktable; prepared for (optional) elevated pods that allow profile & horizontal machining.
Boring Unit: 4 HP (3 kW) motor - 4,000 RPM; (32) Independent vertical spindles, (20) spindles in "X" axis & (12) spindles in "Y" axis.
Machining: (1) 15 HP (11 kW) Vertically mounted electro-spindle router with HSK F63 adaptor, inverter driven 1,000 - 24,000 RPM with max. torque from 12,000 RPM; (1) 8-position automatic tool changer mounted to the "Y" axis beam. Operator Interface: PC Front end with "TRUE PC" + Windows operating system; 15" TFT monitor, full keyboard & mouse; 1.44 MB & CD ROM drives. (4) serial ports, (1) parallel port, and (2) USB ports...
