pine bookcase

Listing #1579 Listed on: 11/20/2008 Name: Viktor

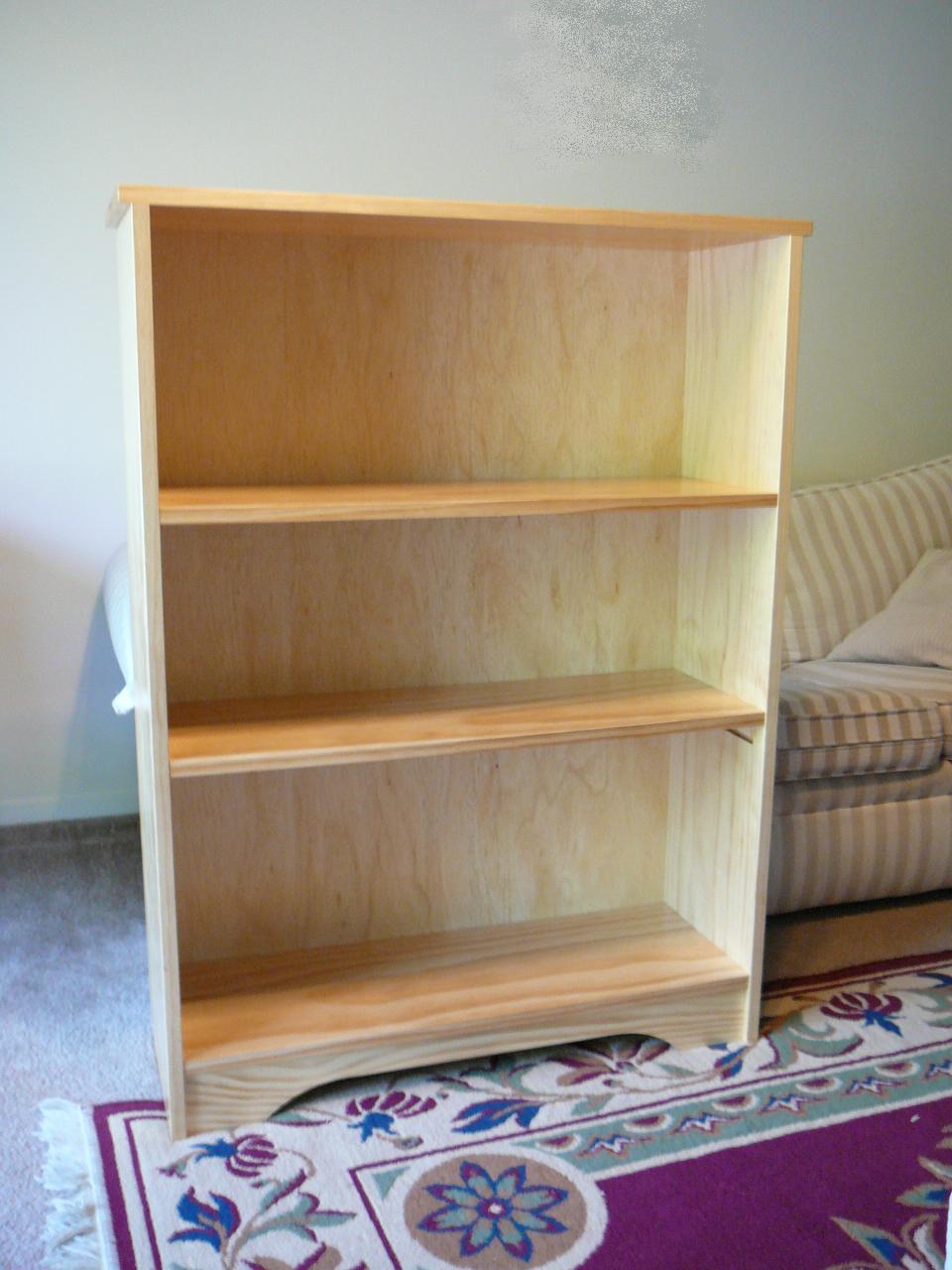

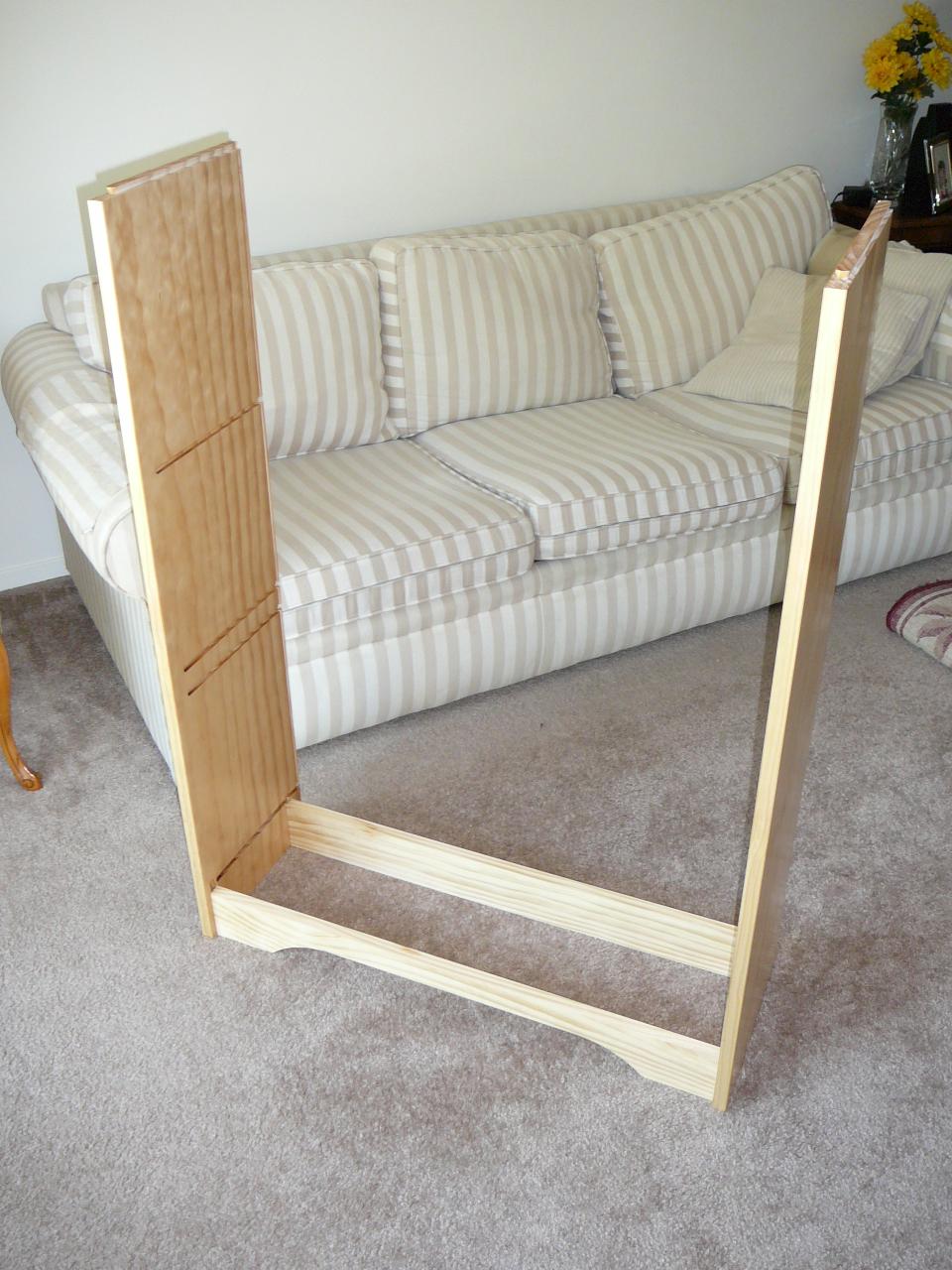

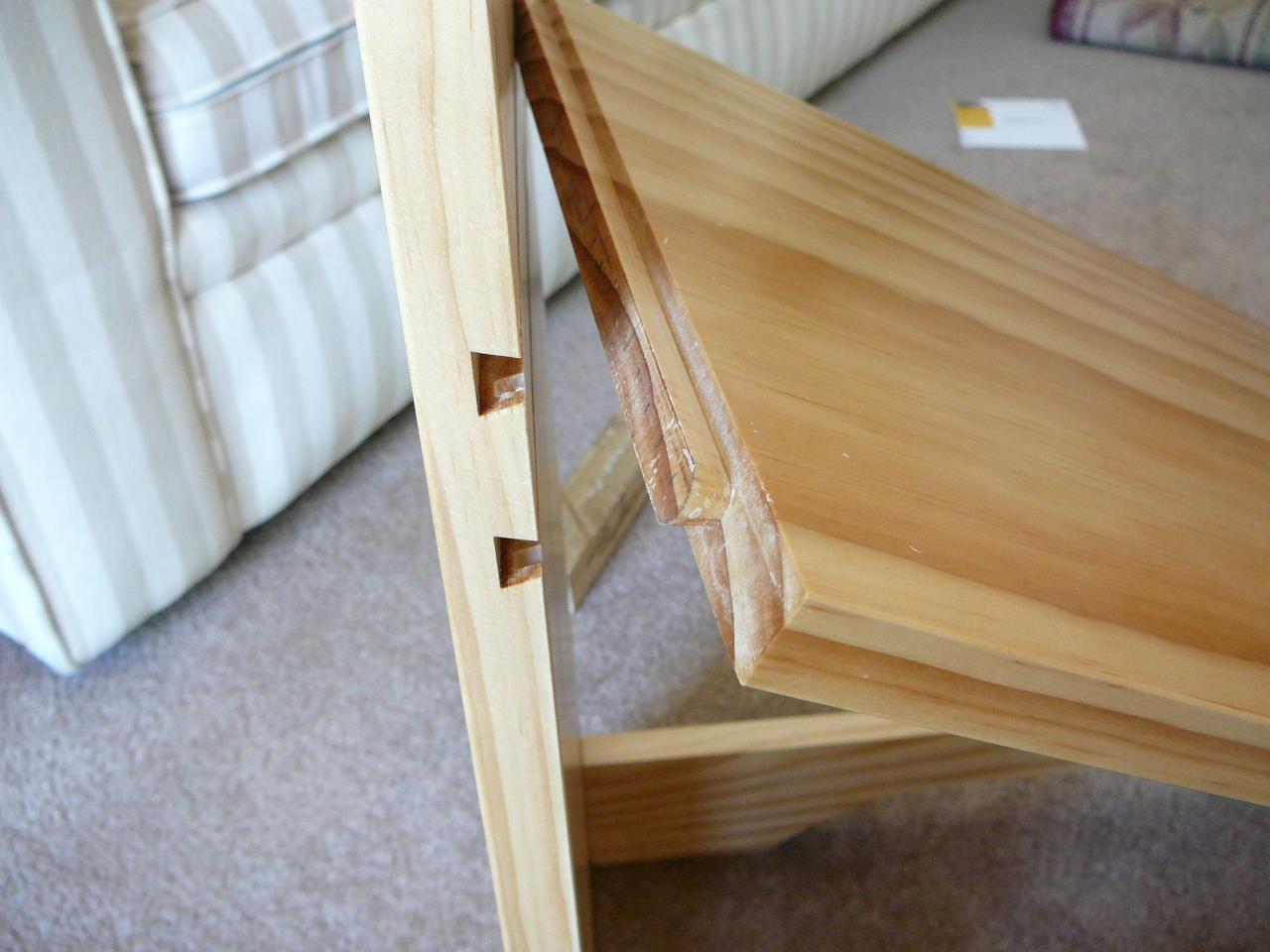

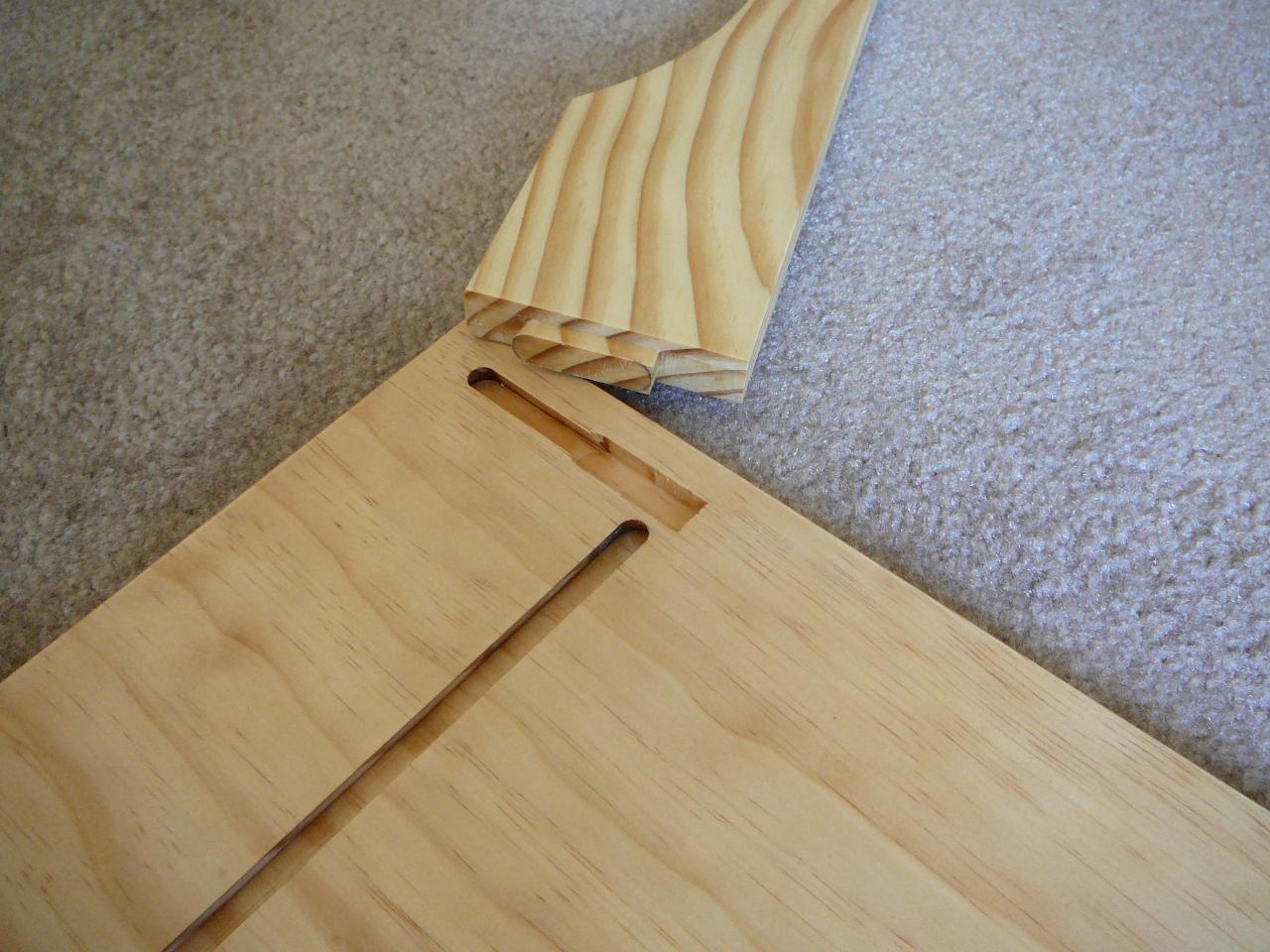

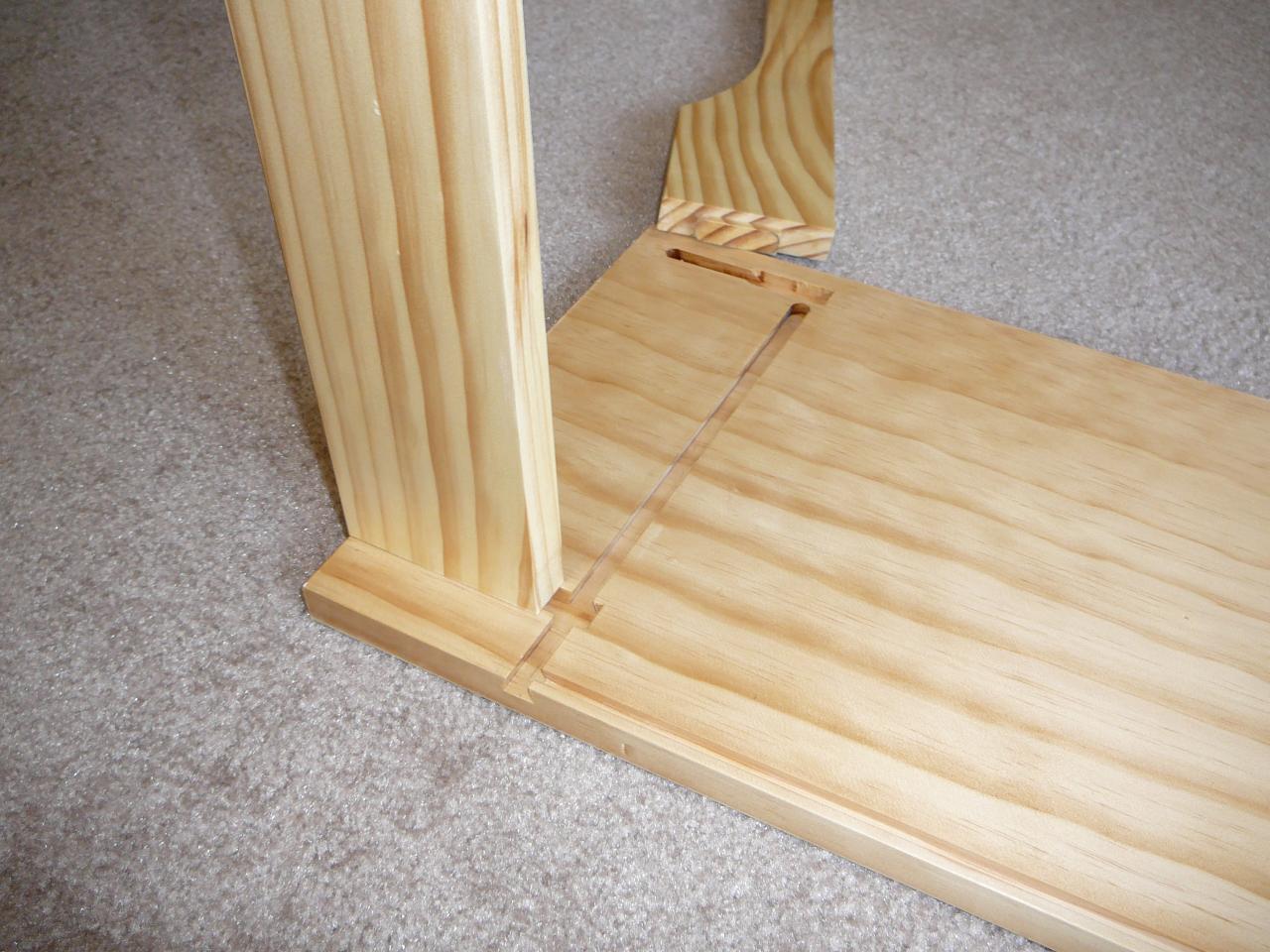

Bookcase is made of solid yellow pine (except the back panel which is plywood). No glue or fasteners are used in the assembly. All joints are sliding dovetails. Parts are interlocking such that the bookcase can be assembled only in a particular order. Back panel sits in a groove around entire perimeter. The only way to disassemble is to slide the back panel up ¼ in (the groove in the top is deeper), that would release the lowest shelf and it can be removed. After this the back panel slides all the way down and out. Then goes the rest. There are extra grooves for the second shelf to be installed higher or lower. I rubbed joints with candle wax for easy assembly. The finish is clear polyurethane. Measures 4ft high, 3ft wide 12in deep.

5 Photos
Social Media:
Viewer Comments:
Posted By:stephen
I like the attachment of the bottom rails. I wouldn't have thought to do it that way. Good job.
