Custom Built Beaded Face Frame Machine

Hello everyone,

I have been working on the design of this machine on and off for about two years.

As of tonight, it is finally operational.

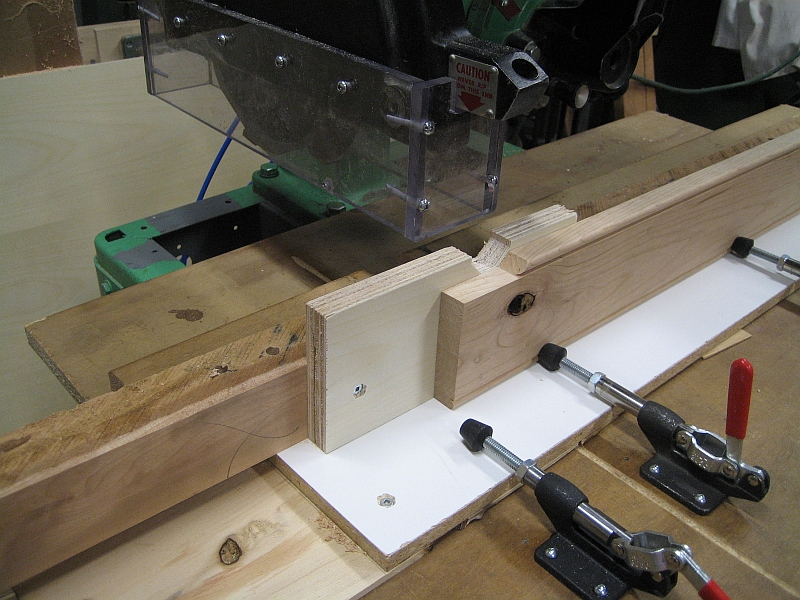

It is a 1975 Delta RAS12 12" radial arm saw with custom notching head that has shear and negative rake. There is a digital height gauge on the side that is accurate to 1/200".

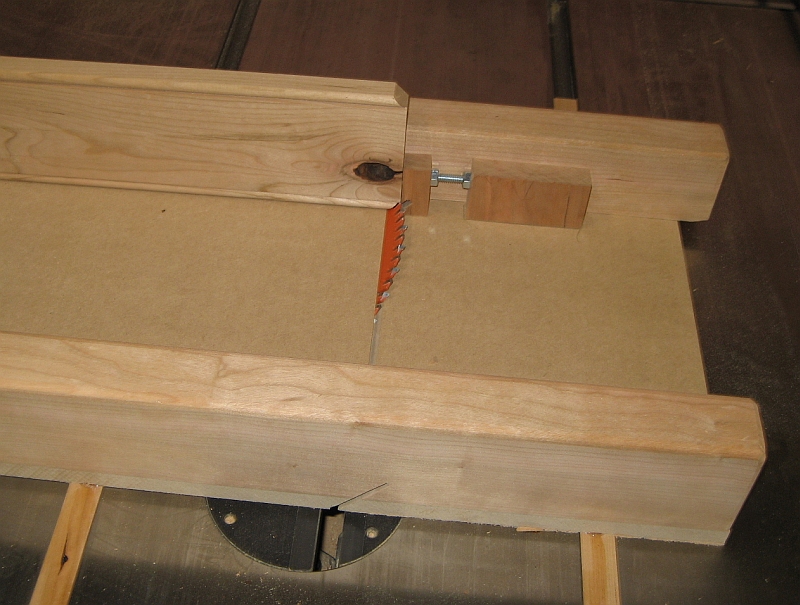

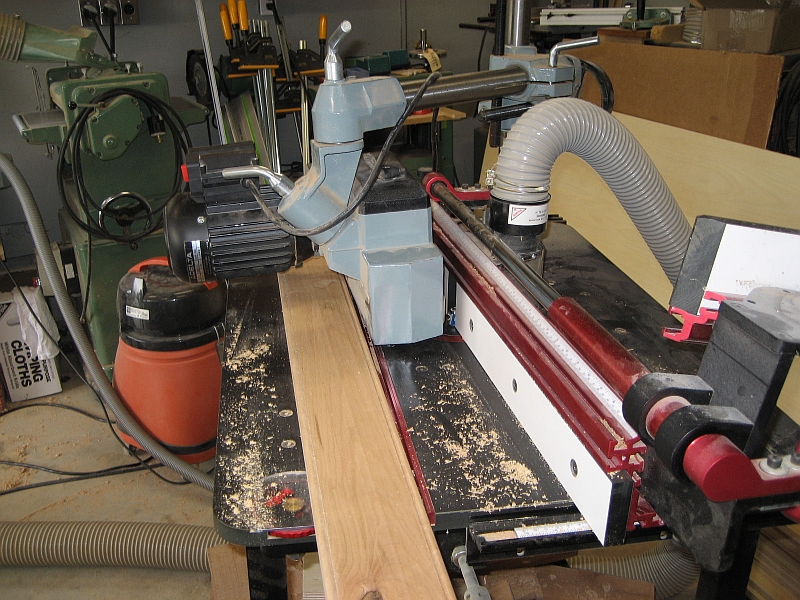

Run the bead on the router table. Knock corner off bead with micro adjustable sled.

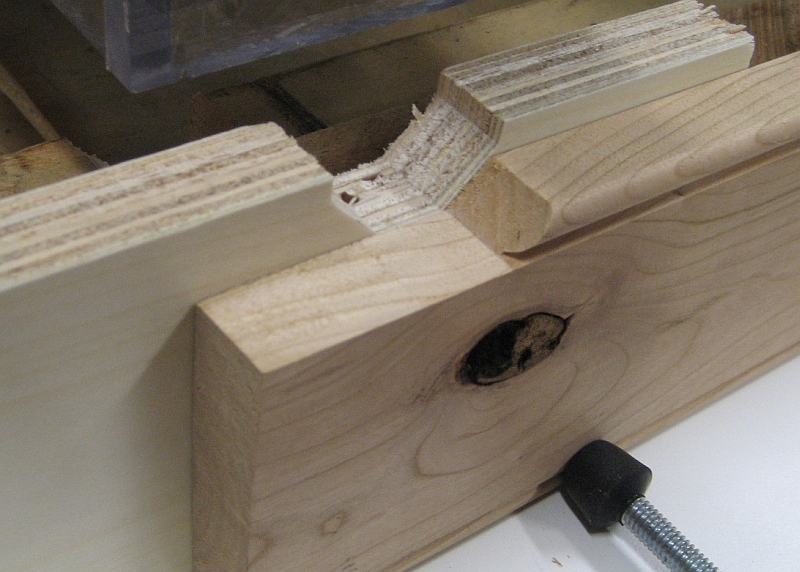

Notch other end with pneumatically operated notcher.

IT'S ALIVE!

Thanks for looking,

David - Tool Guy

Part two,

Here are some shots from today,

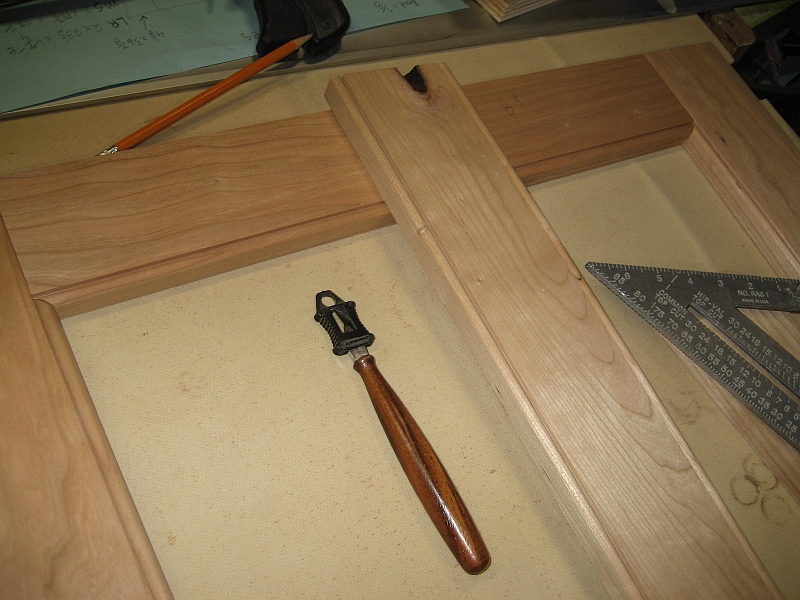

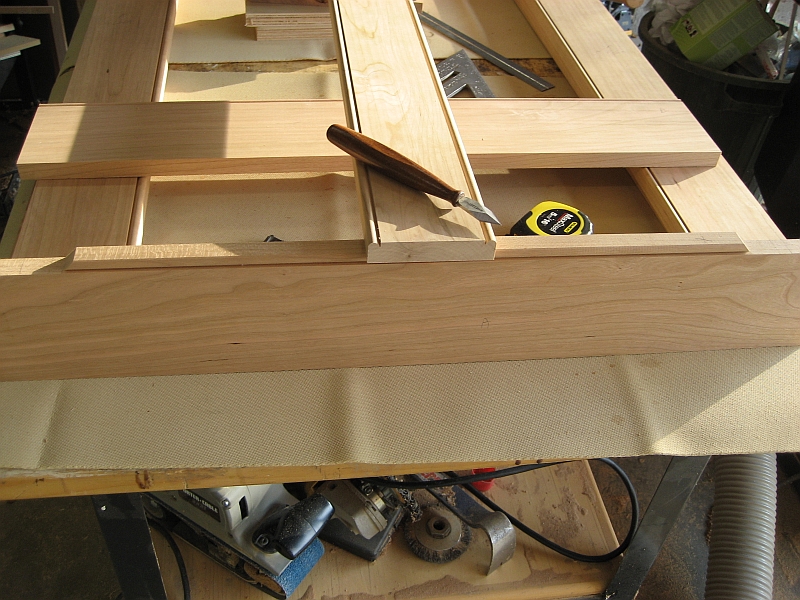

Using a single bevel marking knife, I mark where the middle stile needs to go on the lower rail.

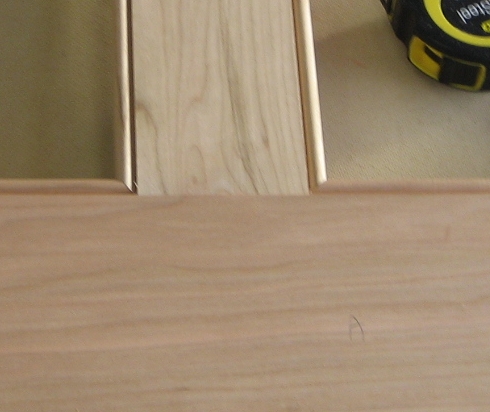

Shot of middle rail now fitting into lower rail.

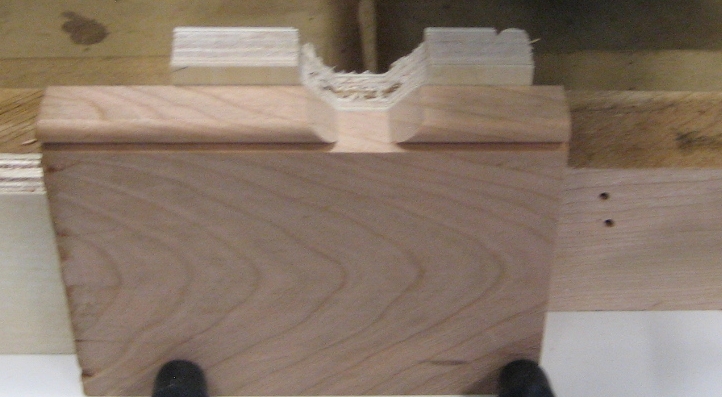

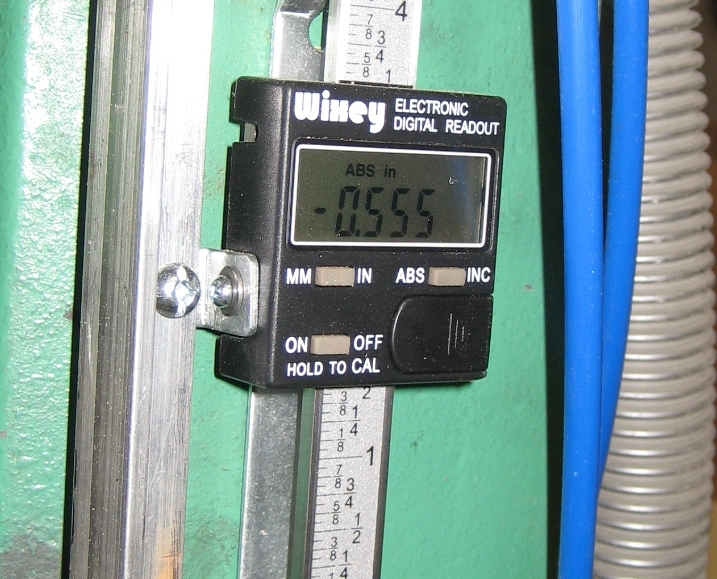

I am switching widths of material, I am going from 4.684" to 4.130" wide material. Doing the math, I need to lower the RAS head 0.554". I reset the digital height gauge to zero and lower the head 0.555. Test cut shows height setting is bang on.

I got most of both sides of the island frames made today. I expect to finish them tomorrow.

This is just too Cool! Two years in my head, now a reality! Works awesome. This is going to make making all the beaded face frames for all my built ins sooooo much easier.

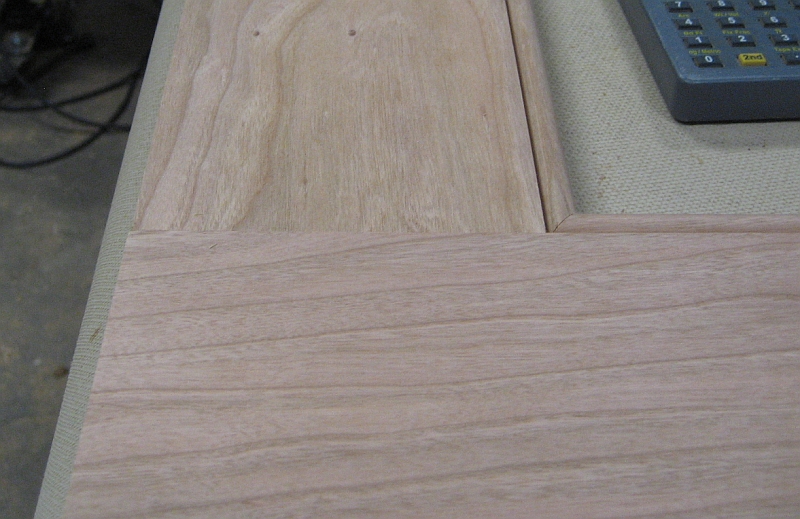

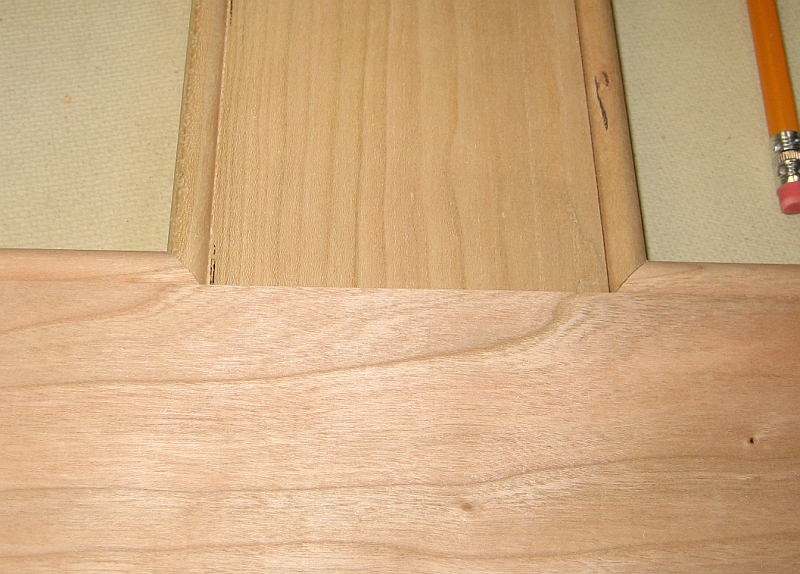

Some final shots of the joints.
