Gear Study

Listing #3104 Listed on: 01/22/2011 Name: Mike Olczak

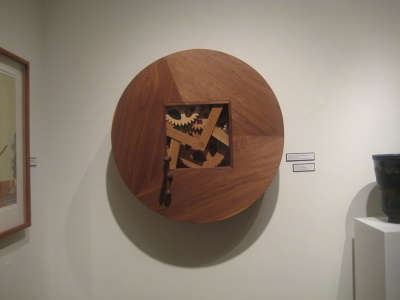

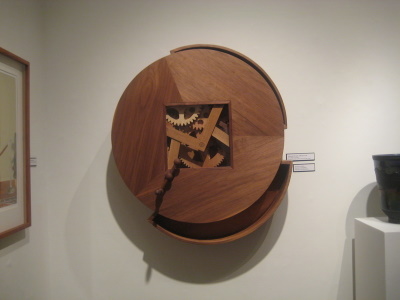

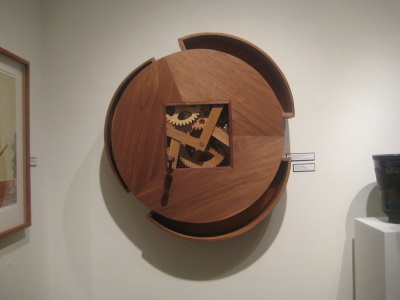

This was a sculpture project for school. I wanted to make something kinetic and to challenge myself. I was curious to see if I could make something open and close with with gearing. It takes a ridiculous amount of turns for it to complete its cycle, a little over two hundred and fifty. I learned a lot. It is all made out of plywood, some mixed hardwoods and walnut veneer.




3 Photos
Social Media:
Viewer Comments:
Posted By:Dennis
Looks impressive.
Posted By:Bear Begelman
Dennis,
are there plans for this? I'm a high school shop teacher and would love to give this a try.
Posted By:Mike Olczak
There are no plans for this I kinda just took a stab at it. If you go to woodgears.com there is a program that will generate gears for you and a lot of other info that might help you out.
Posted By:ken gallant
Mike, could not find an active website called woodgears.com. Could it be something else?
Posted By:Ken Irish
http://woodgears.ca/gear_cutting/template.html
Pretty cool stuff. Thanks
Posted By:Steve Garrison
http://steveg769.bizland.com/spiralsbysteven2/id5.html

If you have ever tried cutting gears using a paper pattern you will find out how monotonous and finicky it can be. I developed a method that makes it a lot more accurate and less time consuming. Check out the link above to learn more about it.
Posted By:Steve Garrison
http://www.youtube.com/watch?v=rqaMBUSs0Uc
