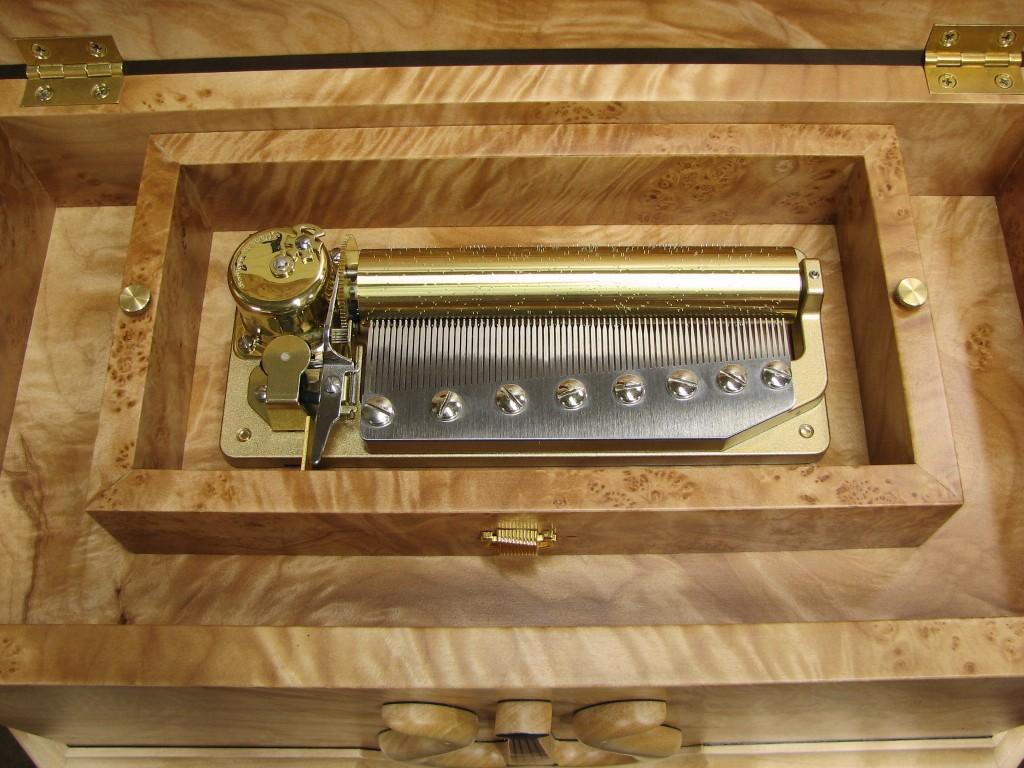

"Music Box," 72 note Movement

Listing #3294 Listed on: 05/10/2011 Company Name: Zongkers Custom Woods Inc
Name: Dennis Zongker

This Music box I designed & made for a customer to advertise on her web site. She sells Music boxes ranging from $500.00 dollars to $90,000.00 dollar music boxers.

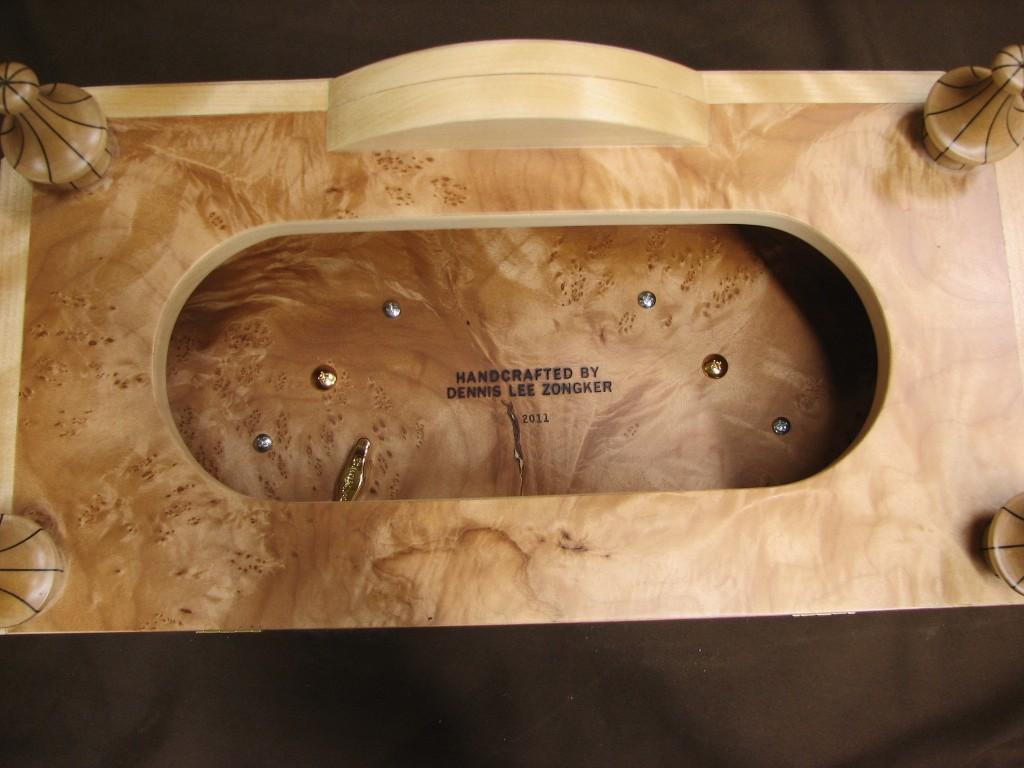

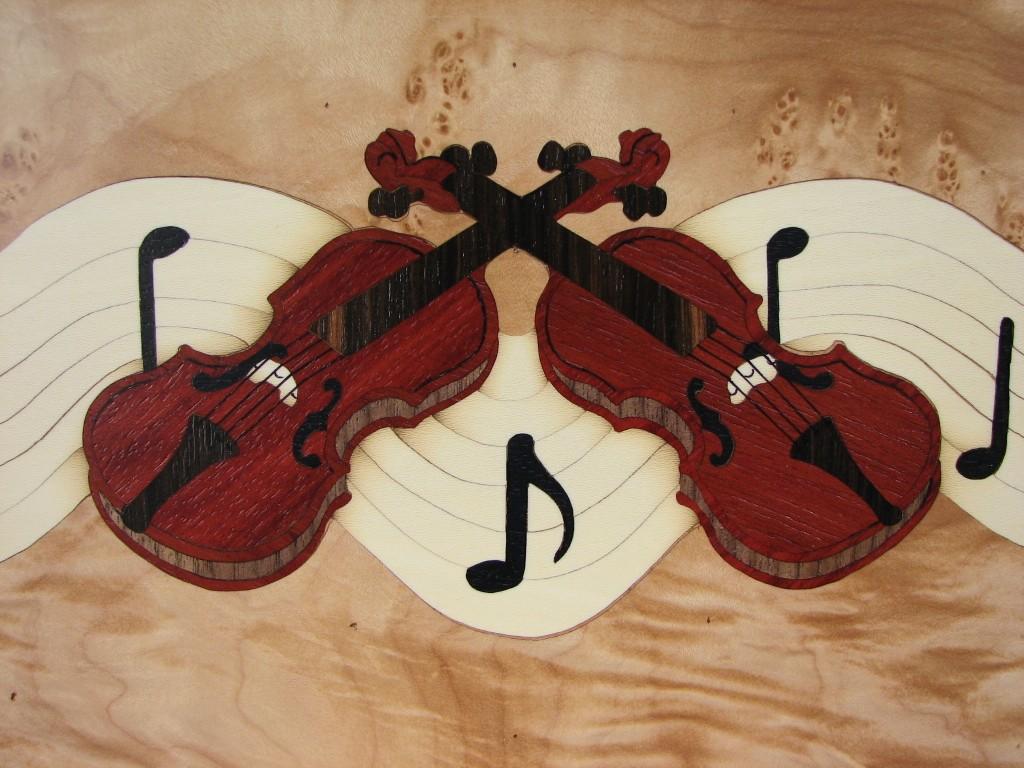

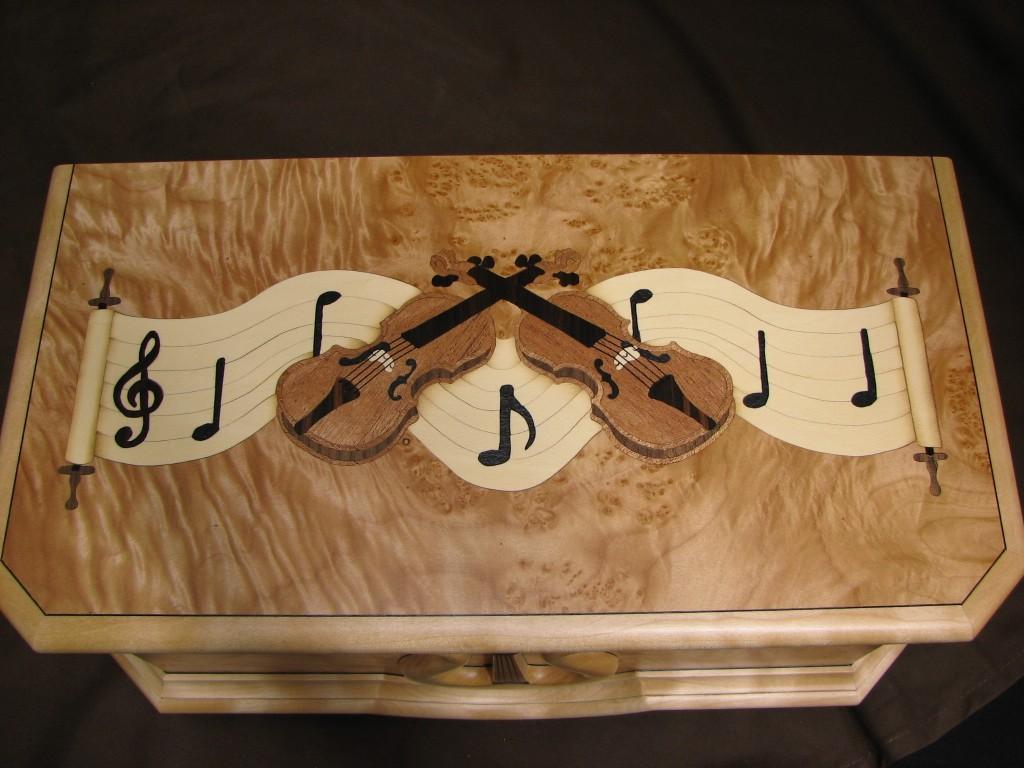

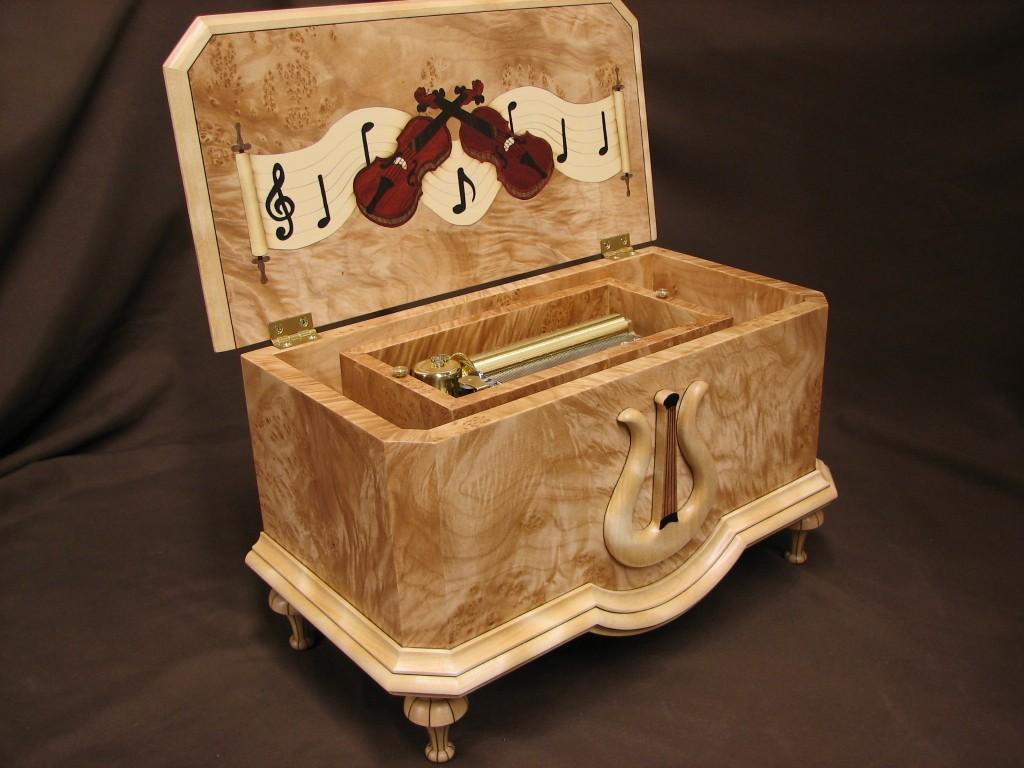

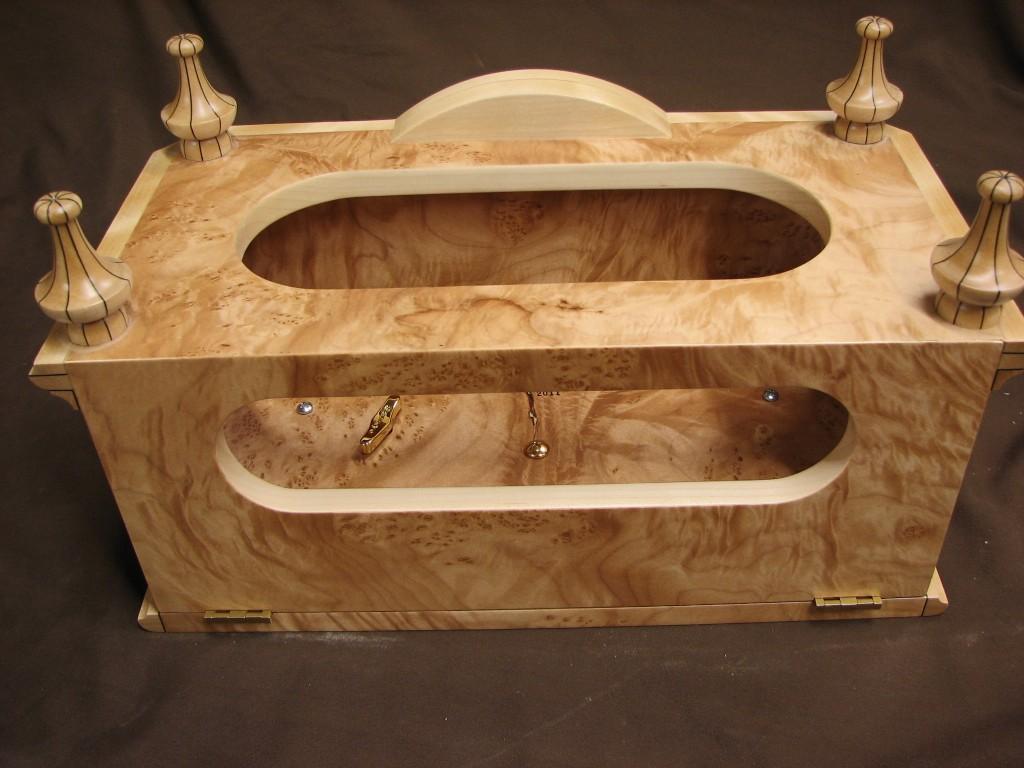

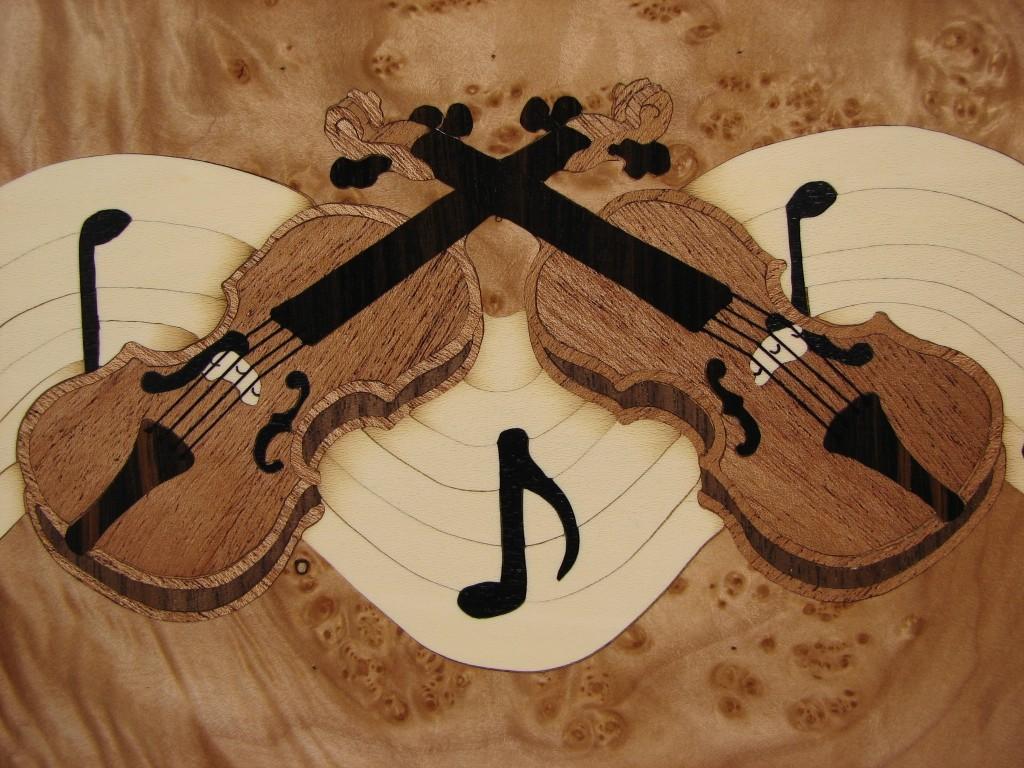

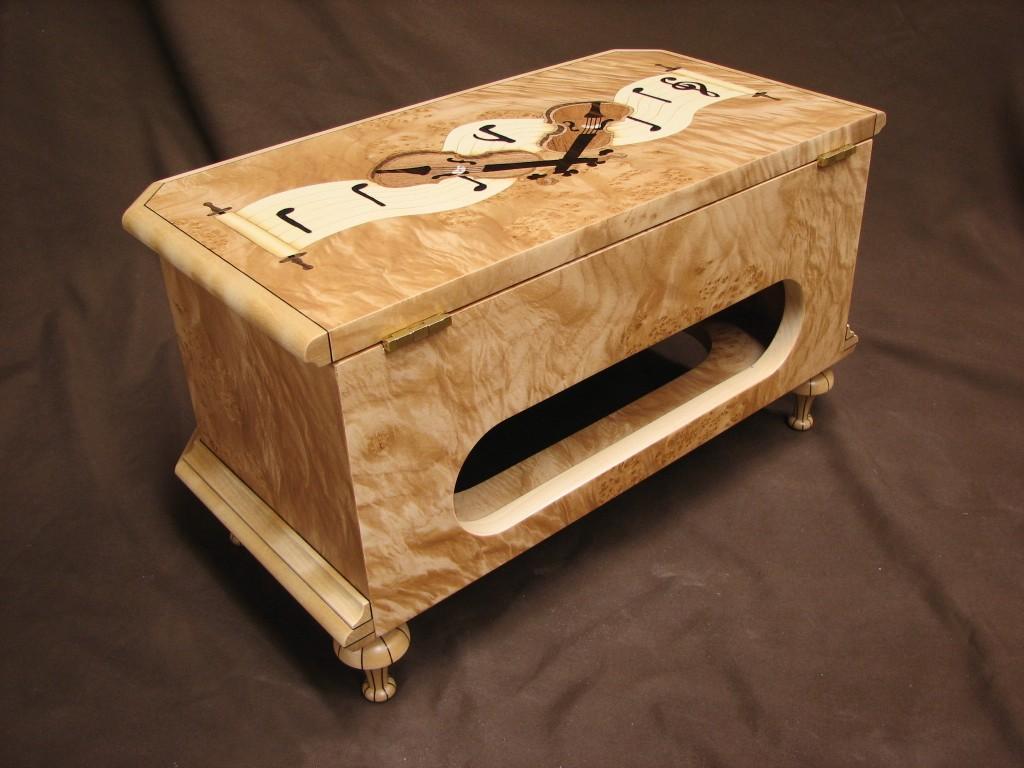

My goals were to have the veneer blend on all sides of the music box. also to have a musical theme throughout and to have the veneers flow nicely from the inside of the box to the outside. I have sound holes in the back and bottom of the box for the treble and base. The marquetry for the violins on the outside of the top I used Flat Cut African Mahogany. The inside of the top I used Bloodwood for the Violins. That way when you open up the lid to hear the music, you can see the same marquetry but in a different color of wood.

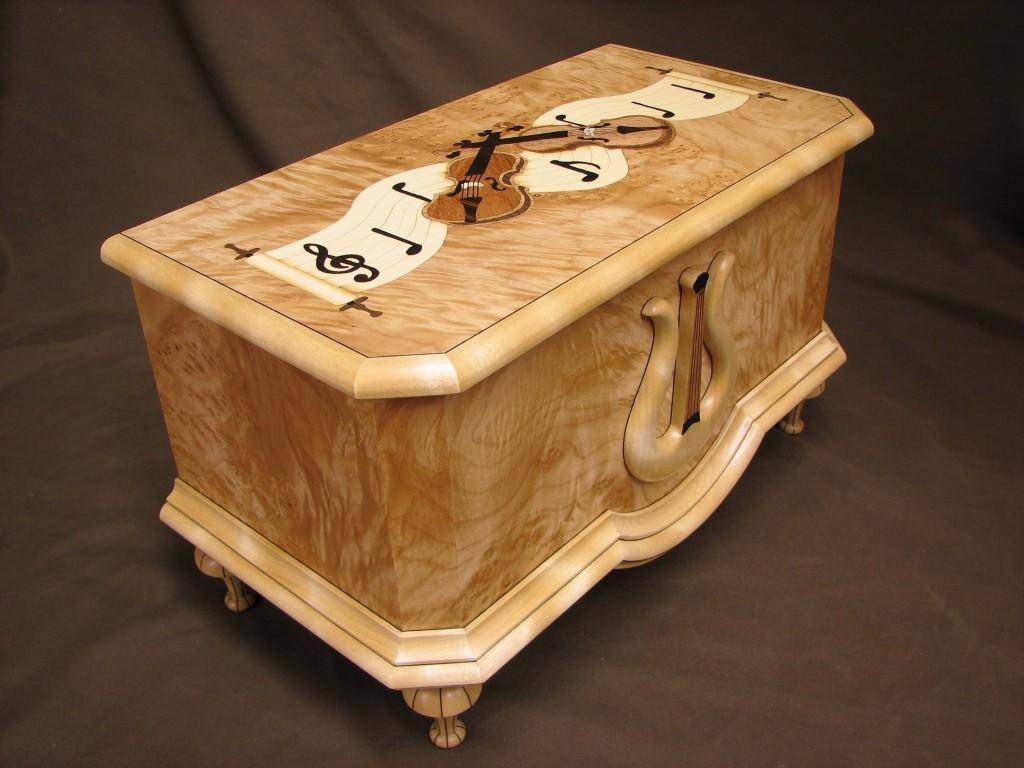

By using veneers and their natural colors and grain, I was able to make the marquetry look as things look in the real world. I use a clear coat natural lacquer to bring out the natural qualities of the wood. By matching up the front and corners and sides and the back with maple burl veneer it looks like one piece of veneer all the way around the music box. The black inlays around the trim and top lid and segmented feet I used Macassar Ebony. Veneers used, "Holly, Macassar Ebony, Dyed black Maple, Flat Cut Walnut, Flat Cut African Mahogany, Bloodwood, Maple Burl." The size is 8 1/2" tall x 8" deep x 16" long. The hardwood is flamed Birch, I worked on this Music Box for six months, in the evenings and weekends. Thank you for looking.

11 Photos
Social Media:
Viewer Comments:
Posted By:Bob Schilke
Nice Work Dennis! So how long did it take? 15-20 minutes? Or days? Love the legs, did you glue em up yourself or outsource? My money says you made em from scratch. And the marquetry. . .Wow! Is that Burl Maple for the main carcass? And, well, I have a lot of questions Dennis, If you could do a brief overview that would be great. Kudos man.
Posted By:Dennis Zongker

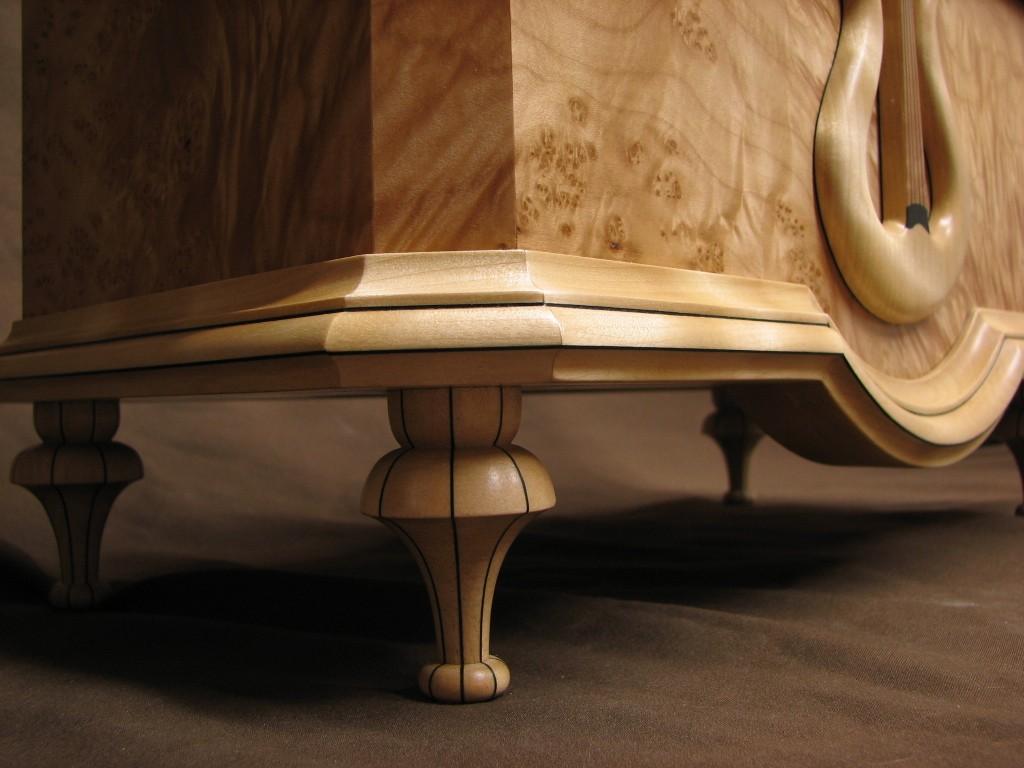

Hi Bob, Thank you. For some reason it did not post all of my writing. I did make everything myself. I made the feet segmented by gluing veneer in-between each solid piece of Flamed Birch.
Posted By:mark
That music box is so beautiful, words can not even describe it. You are truly a great artist. Great work
Posted By:nicko
WOW!!!!!!!!!!!
Posted By:Larry Schweitzer
Beautiful!
Posted By:Kerry Fullington
Dennis,

How did you arrive at the $12,000 price tag to build this?
Posted By:Dennis Zongker
Hi Kelly. It's very simple all material cost x 10%. Then all labor hours times what I charge per hour.
