Bamboo Kitchen featuring Canterlevered Island

Listing #3335   Listed on: 06/05/2011

Company Name: Laguna Bamboo

Contact Name:   Richard Goodman
Member

Recently had an opportunity for some artistic freedom. This is what I came up with.

View Larger, Higher Quality Image

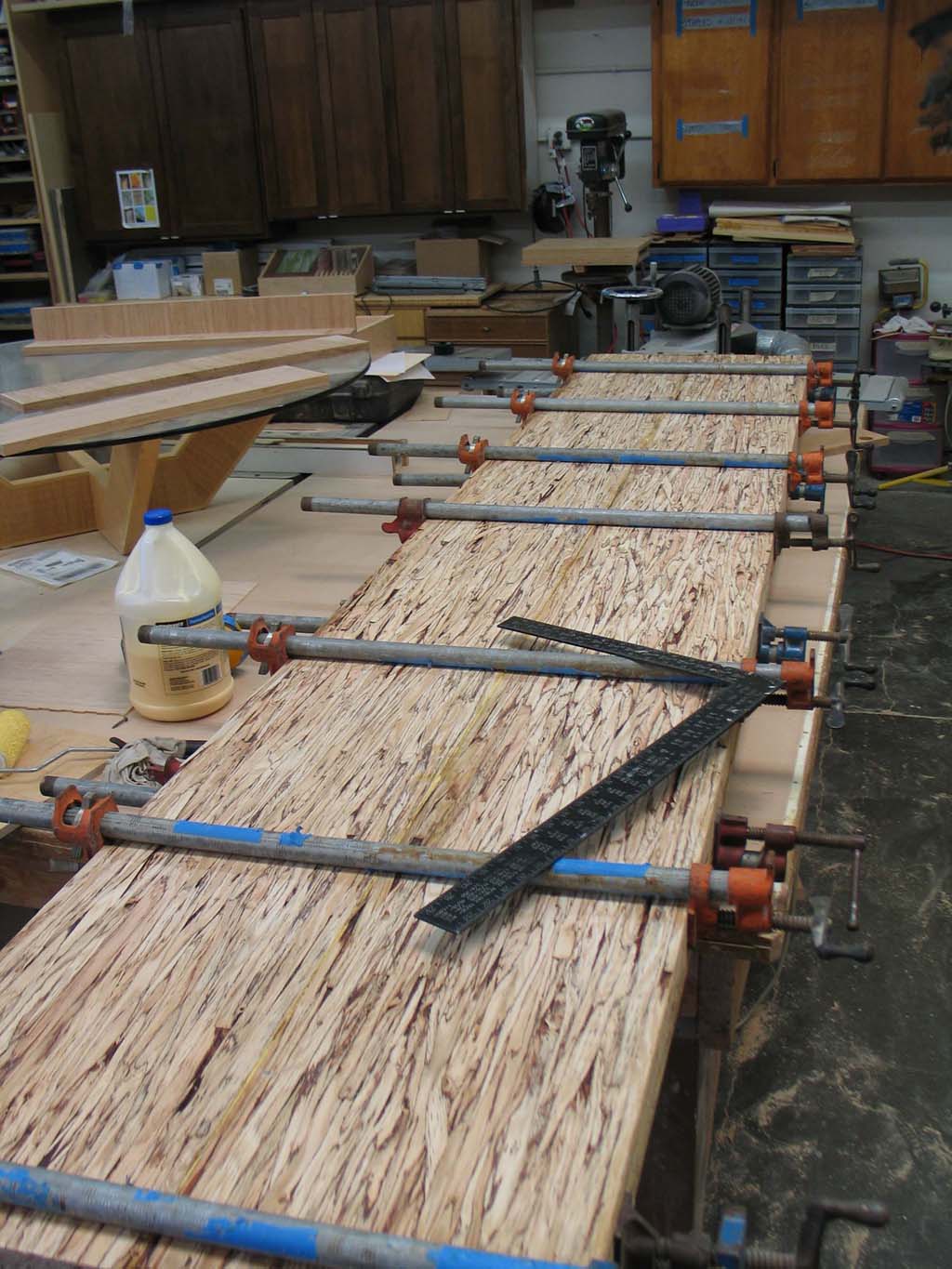

Glued together 3 paralams


View Larger, Higher Quality Image

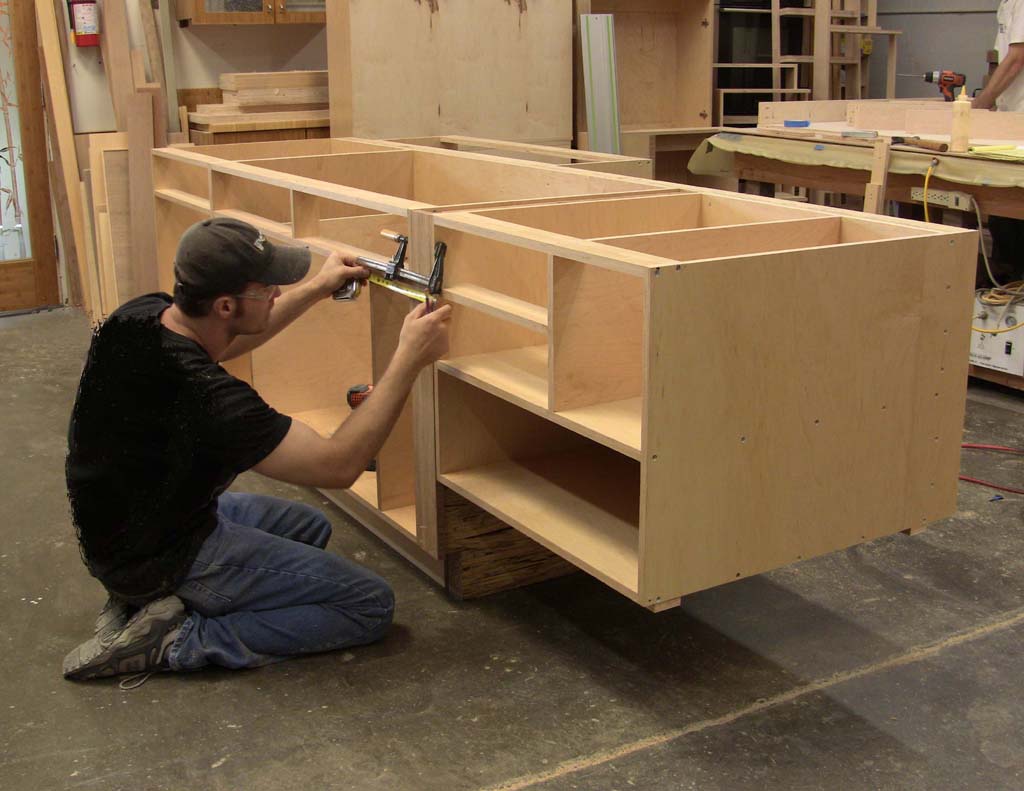

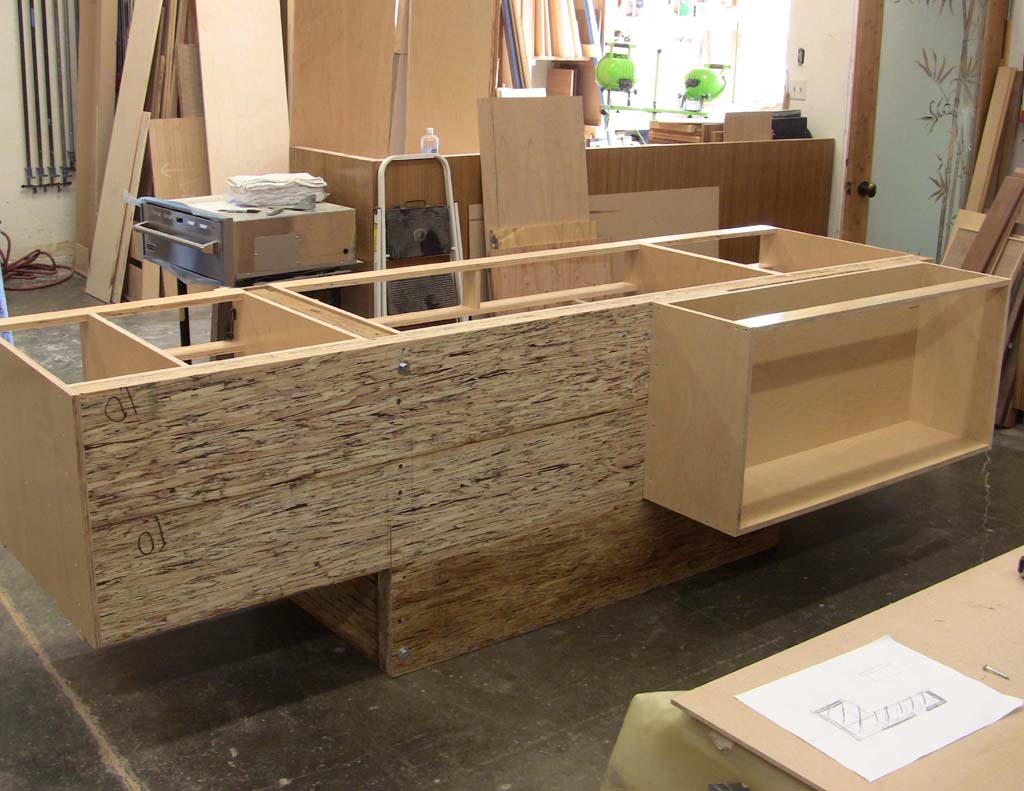

Dry run in shop


View Larger, Higher Quality Image
Keith from KOL Woodworking was lead on project


View Larger, Higher Quality Image
bolted laminated paralams to the floor.


View Larger, Higher Quality Image

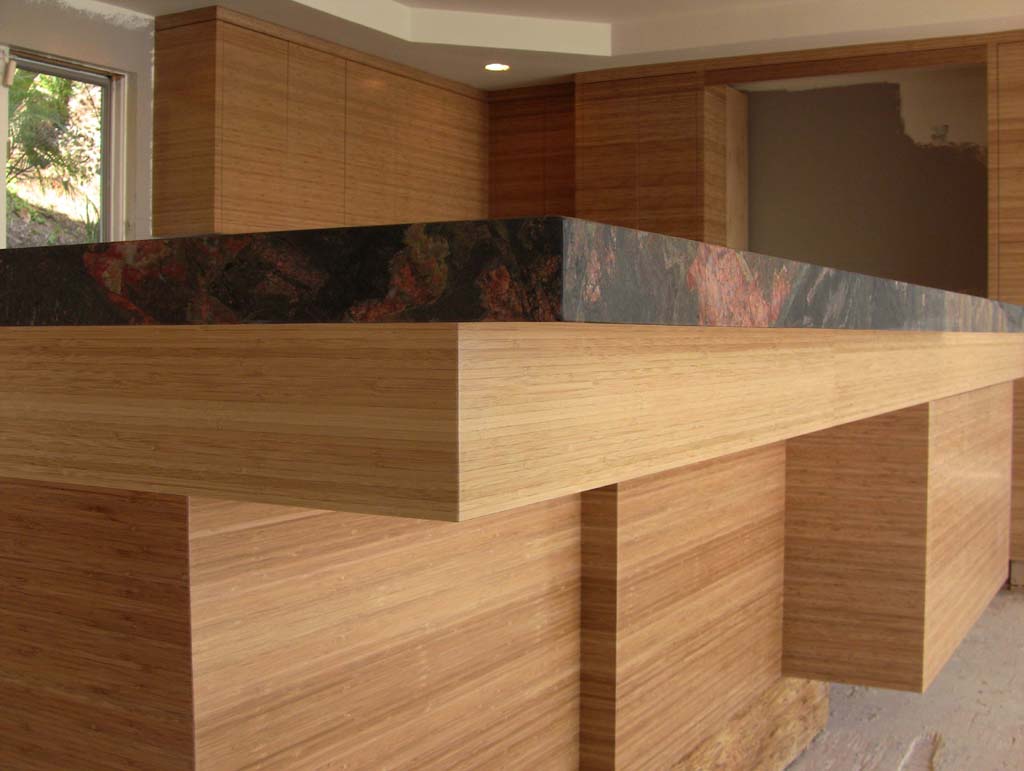

Bolted supports to top of paralam to pick up canterlever on granite tops ( not shown in picture )


View Larger, Higher Quality Image

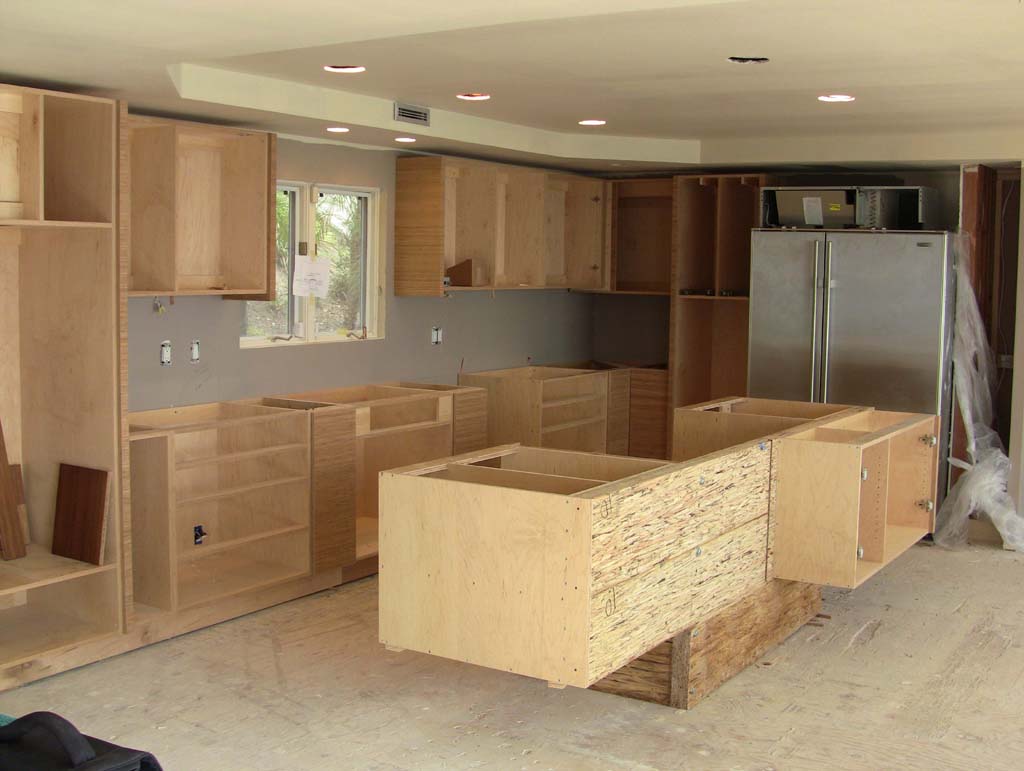

The vision is starting to come together


View Larger, Higher Quality Image

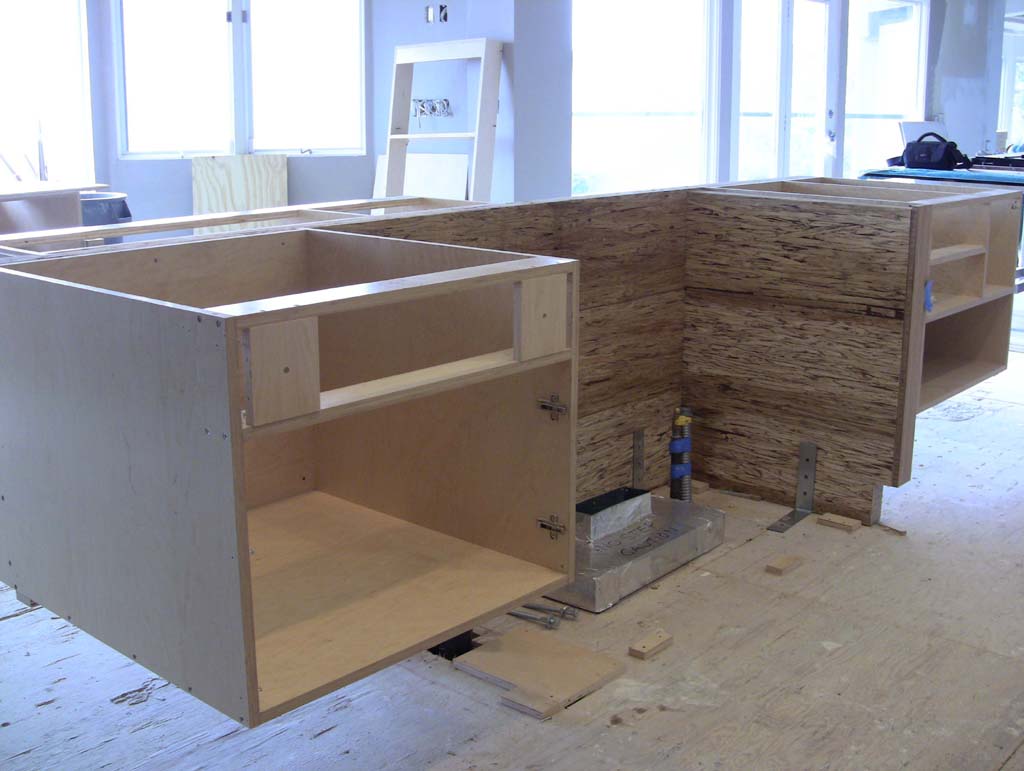

Since the sink cabinet is canterlevered, we ran the plumbing behind the cabinet to the right, which is an 18" full extension pull out


View Larger, Higher Quality Image

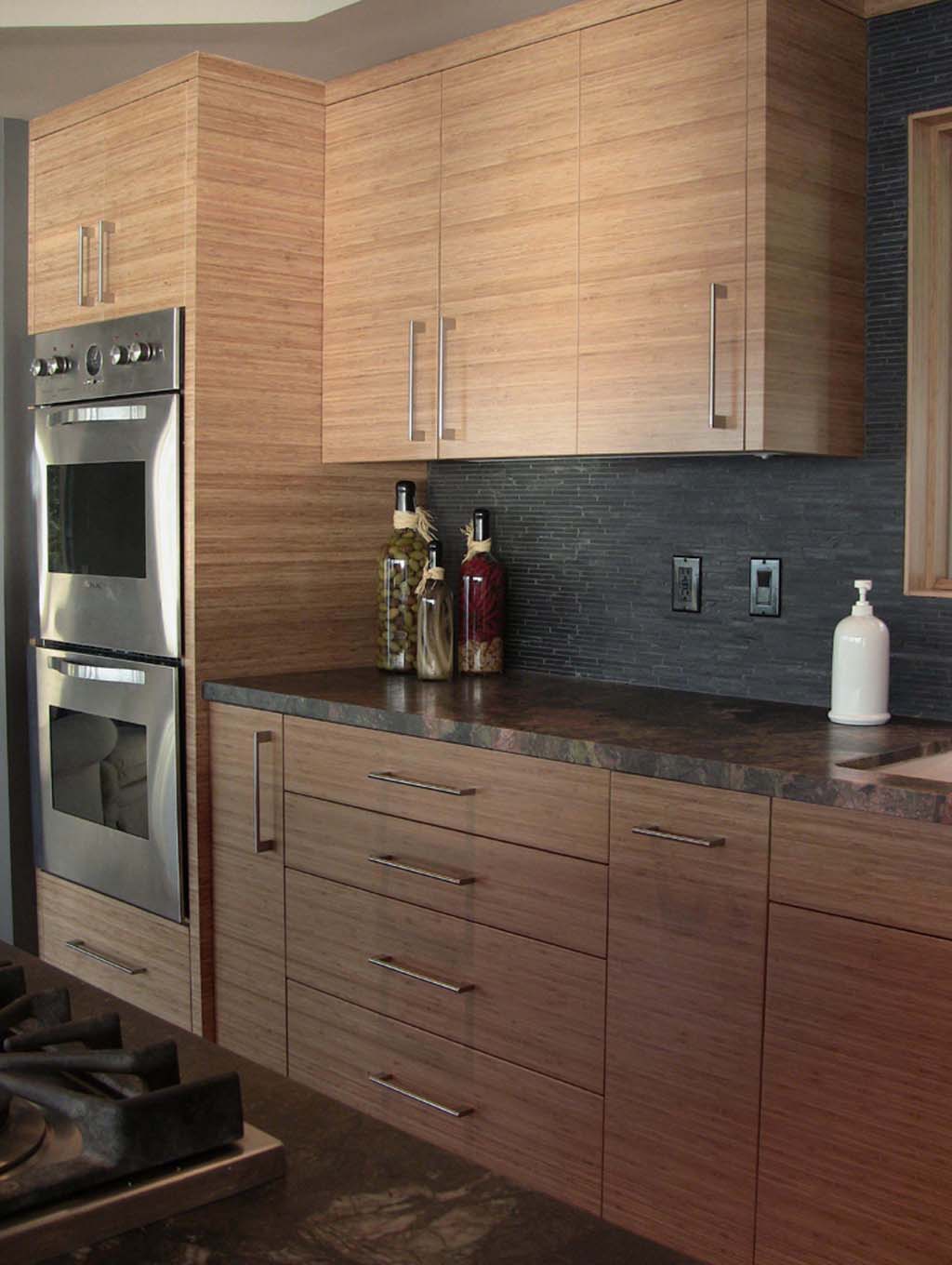

I build my tall cabinets 26" deep so counter top has a place to die into


View Larger, Higher Quality Image

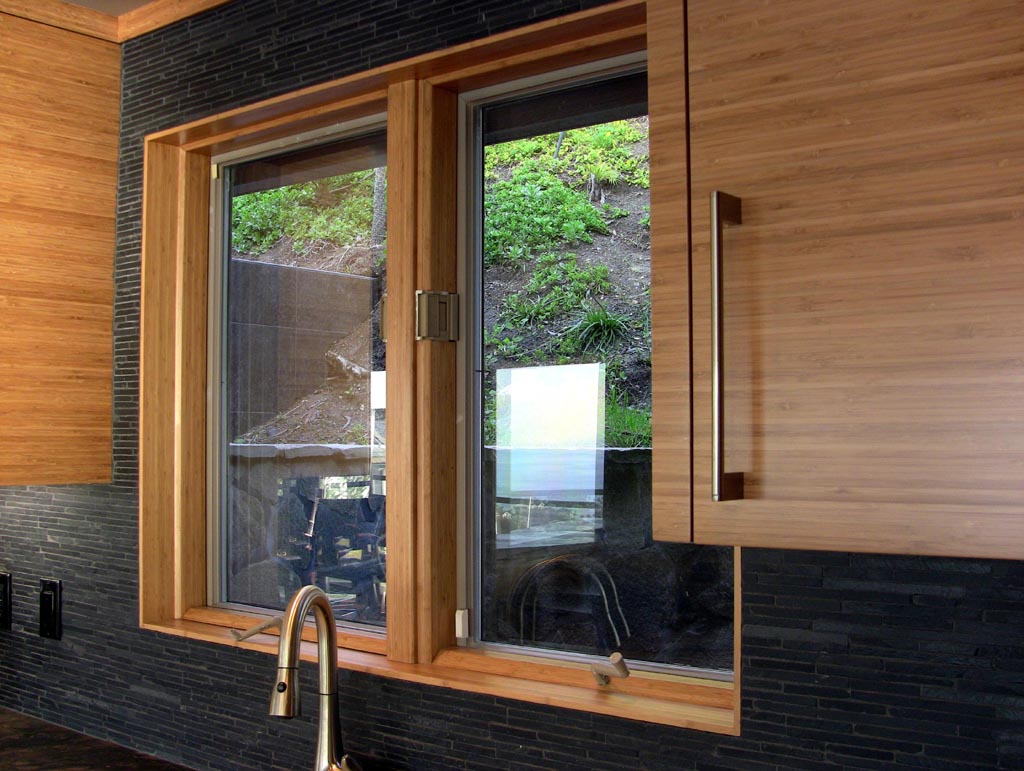

To hide the existing white window and frame we made new moldings and trim from matching bamboo


View Larger, Higher Quality Image
If you look closely, you can see we carried the bamboo crown over the window to tie it all together


View Larger, Higher Quality Image
Notched back of cabinet and wall so I could install longer undermount guides, so pull out would extend out further


View Larger, Higher Quality Image

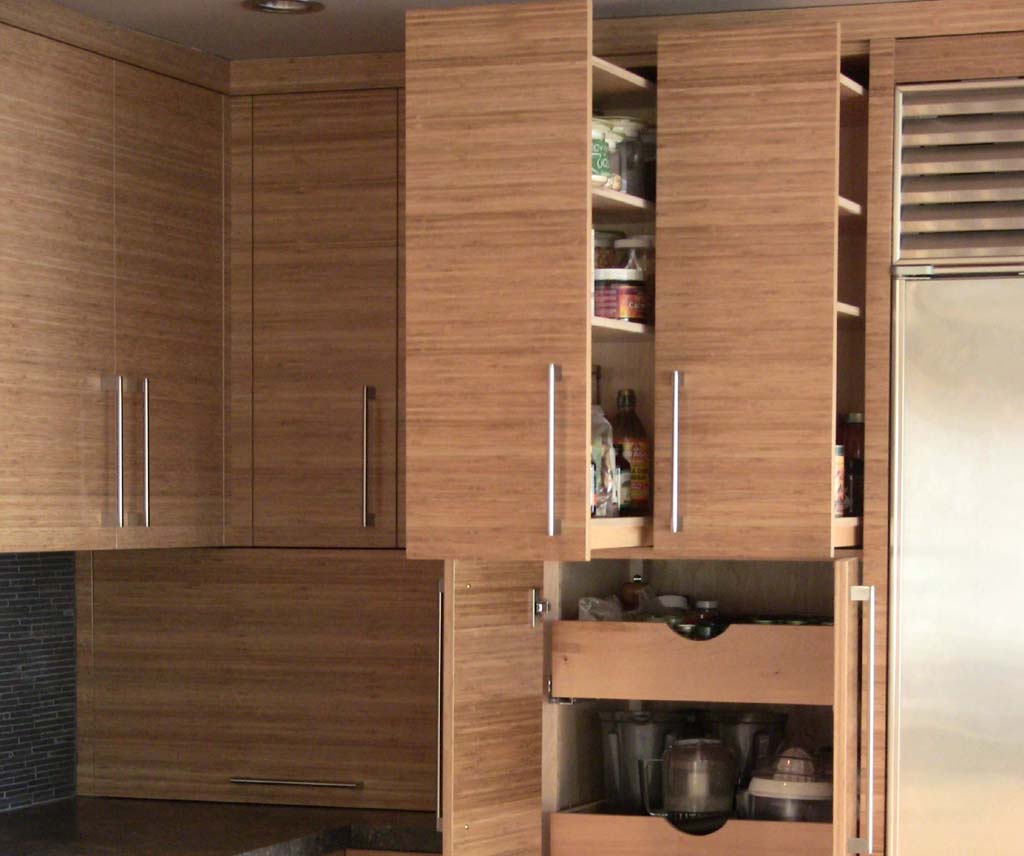

I like to use full extension pull outs above ovens, refers and the upper part of pantry units


View Larger, Higher Quality Image

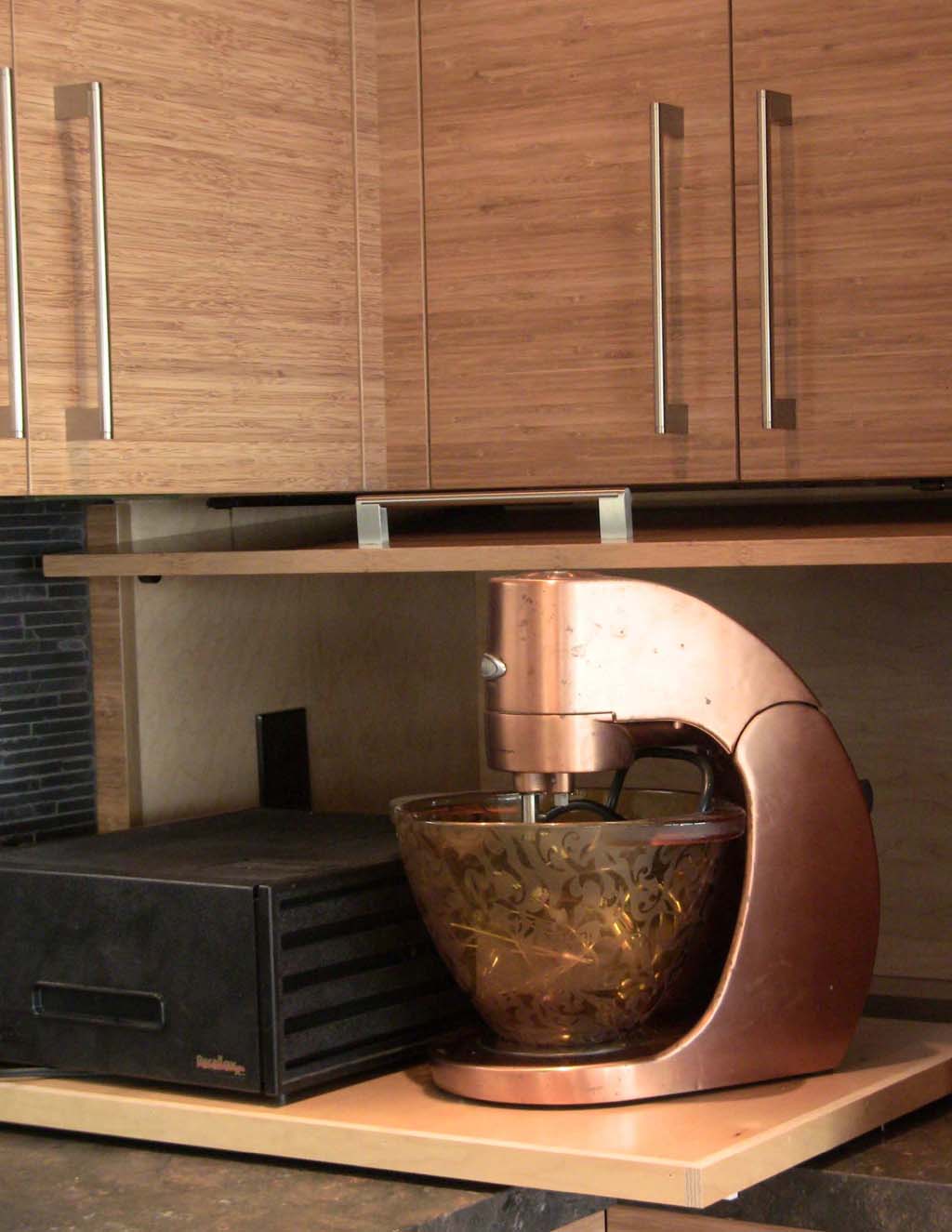

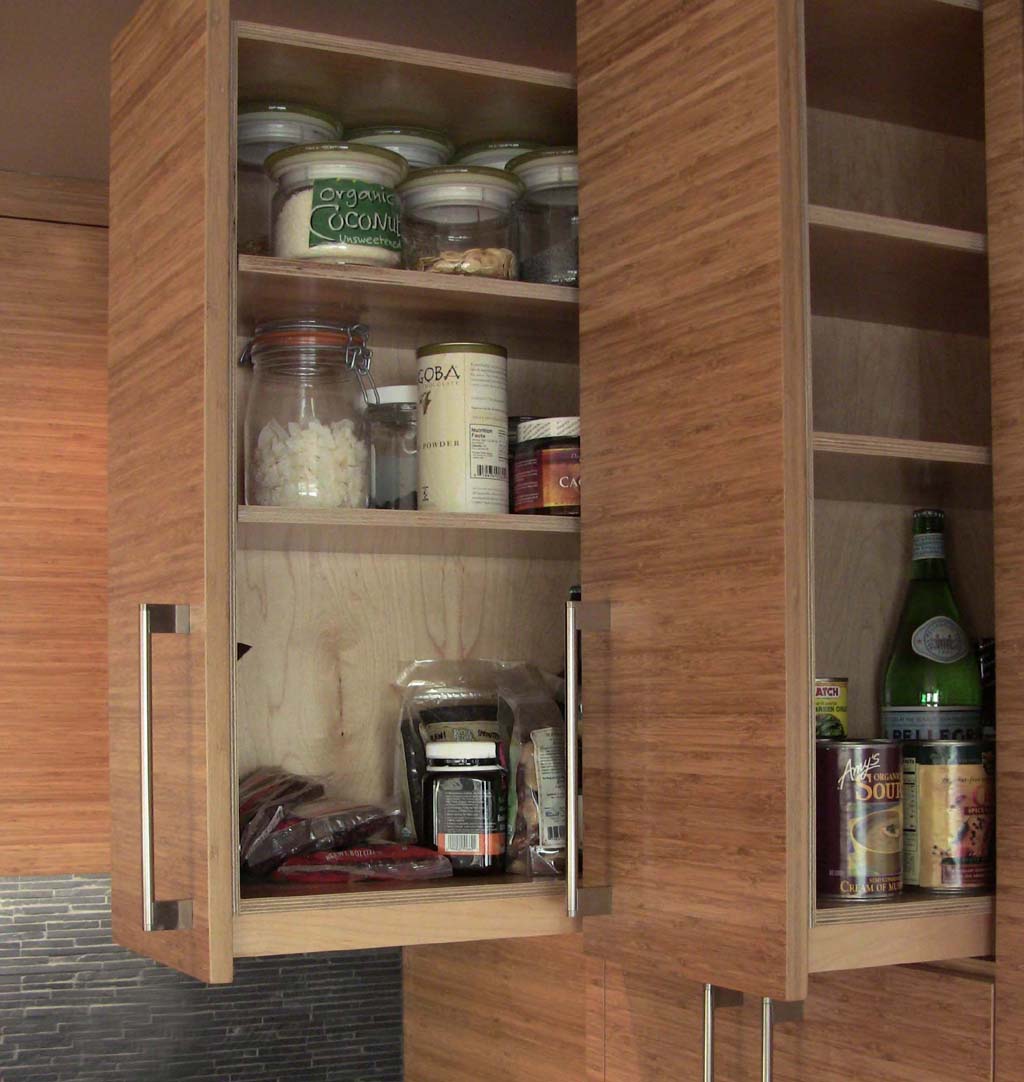

Not sure you can see, but we use an adjustable roll out system


View Larger, Higher Quality Image

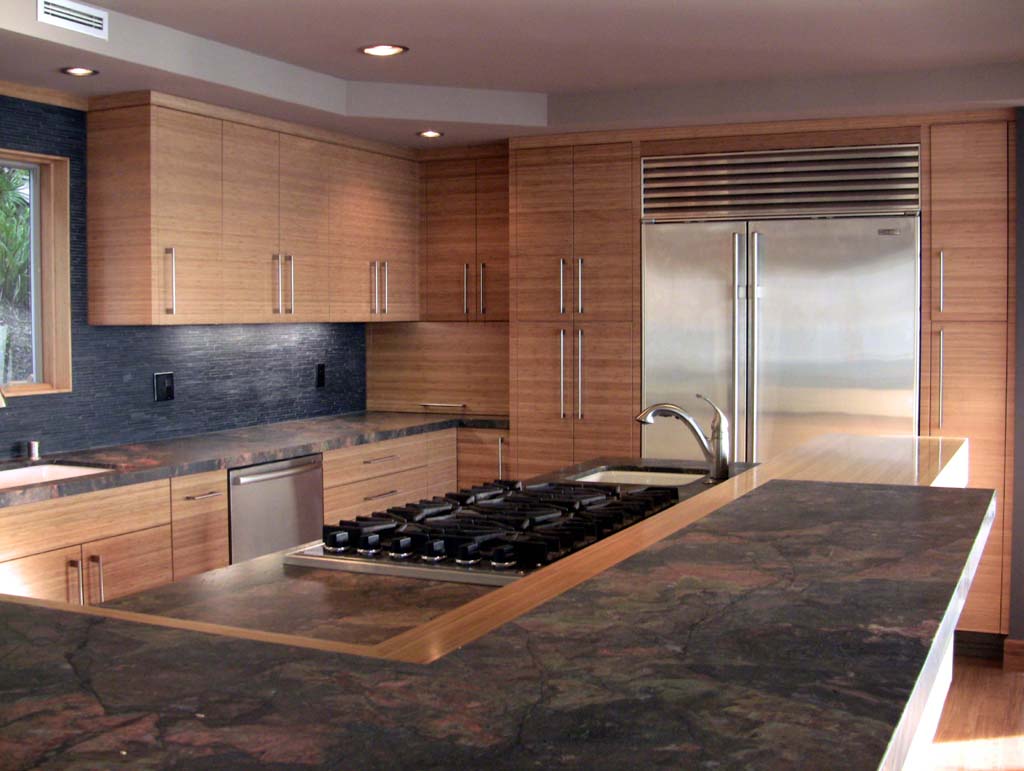

I love photography and Images like this put a smile on my face


View Larger, Higher Quality Image


View Larger, Higher Quality Image
Hope you enjoyed viewing this project - It reflects 28 years of home building and 7 years of bamboo cabinet making


Viewer Comments:


Posted By: Bobbie     [06/06/2011]
Wow! Looks really nice and with Kieth being involved on this, I am sure there are some very nice touches.


Posted By: Wha?     [06/06/2011]
Excellent design, awesome execution.


Posted By: Dan     [06/09/2011]
Very nice work Richard! What is the countertop?


Posted By: Tom     [06/17/2011]
Looks great Richard. What hardware are you using for your upper box/pantry roll-outs?


Posted By: Richard Goodman     [06/20/2011]

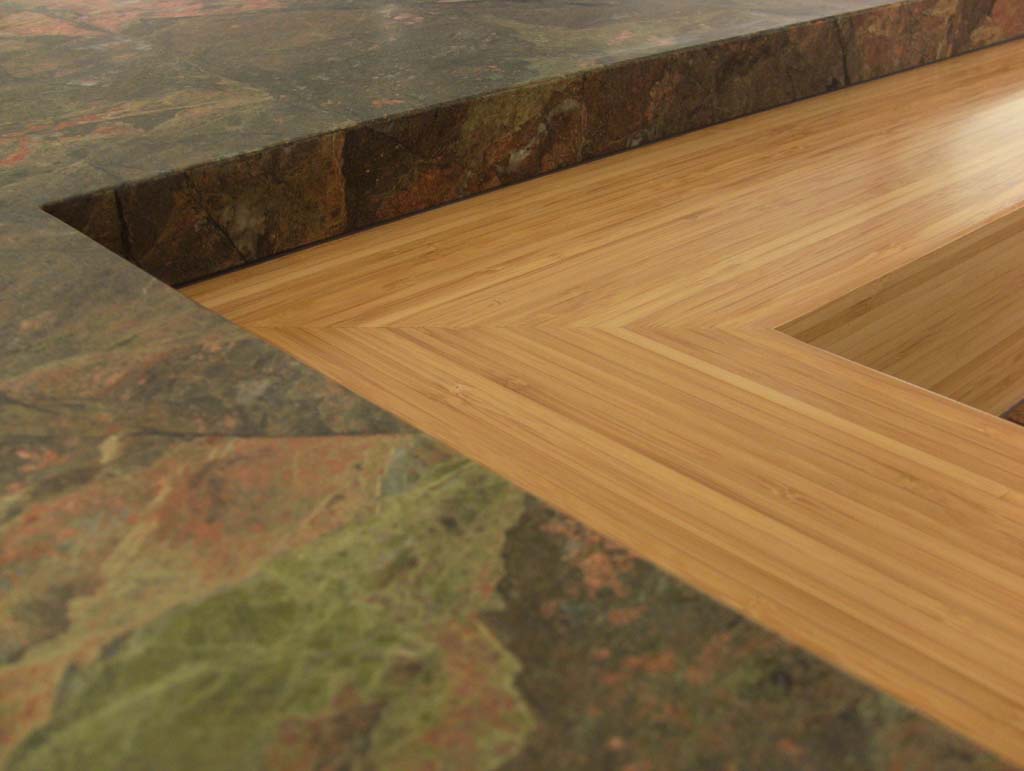

Dan - The material is a granite called Capolovaro with a leather finish. I had never seen a leather finish before and I really liked it. It doesn't have that high polished look ( so it seems much warmer ) plus it has a slight texture to it


Posted By: Richard Goodman     [06/20/2011]
Tom - we used a kv 8800 on the bottom and kv 8400 on top for alignment.


Posted By: Sameer     [04/19/2012]
Amazing work right there. The island blows my mind!


Posted By: Julie Wysocki     [02/11/2019]

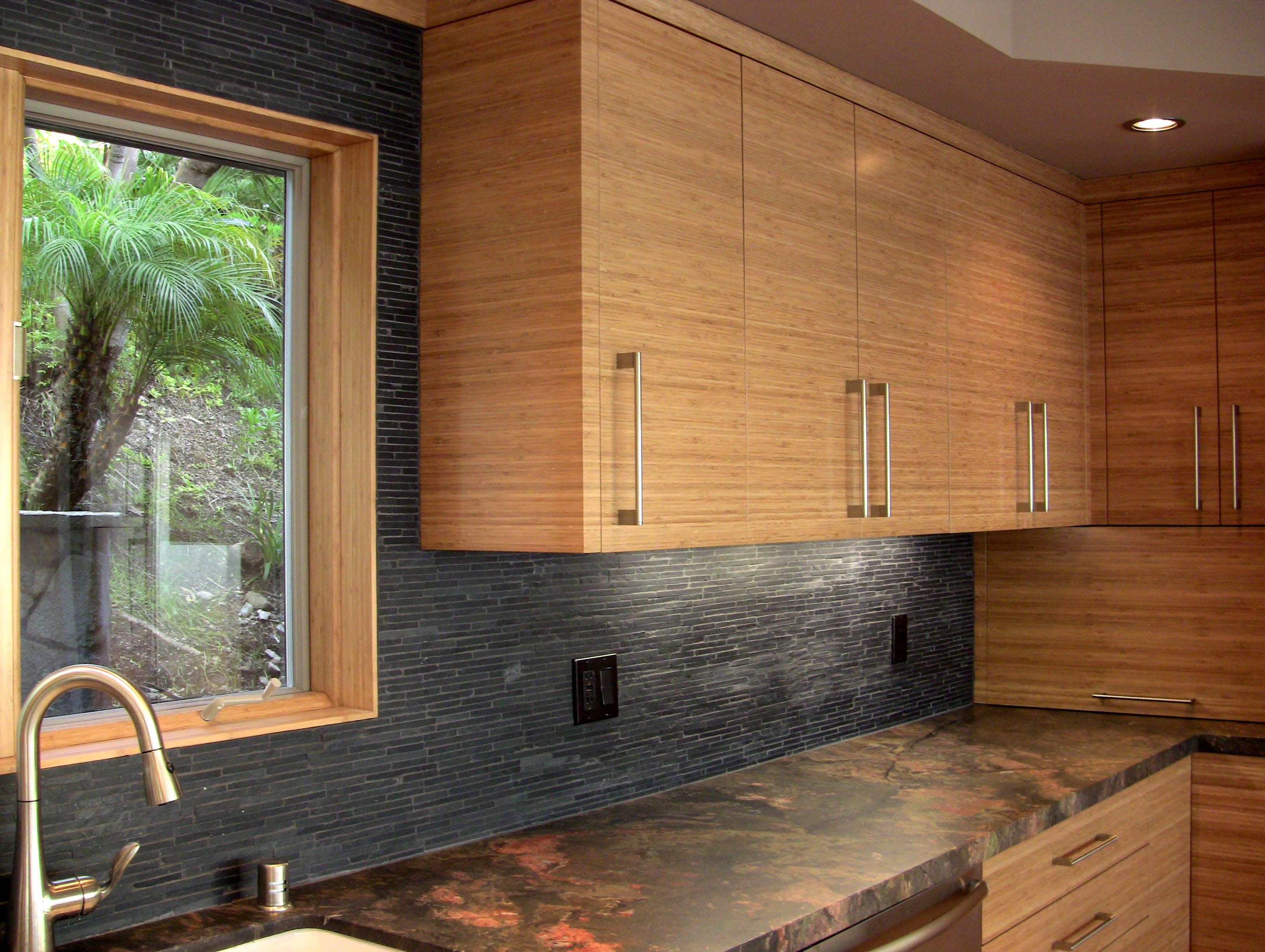

What is the backsplash you used? Phenomenal combination with the bamboo!
