CNC Sculpted Panel Wall

Listing #4444   Listed on: 08/24/2014

Company Name: Mcgrew woodwork

Contact Name:   James McGrew
Website:   www.mcgrewwoodwork.com
Member

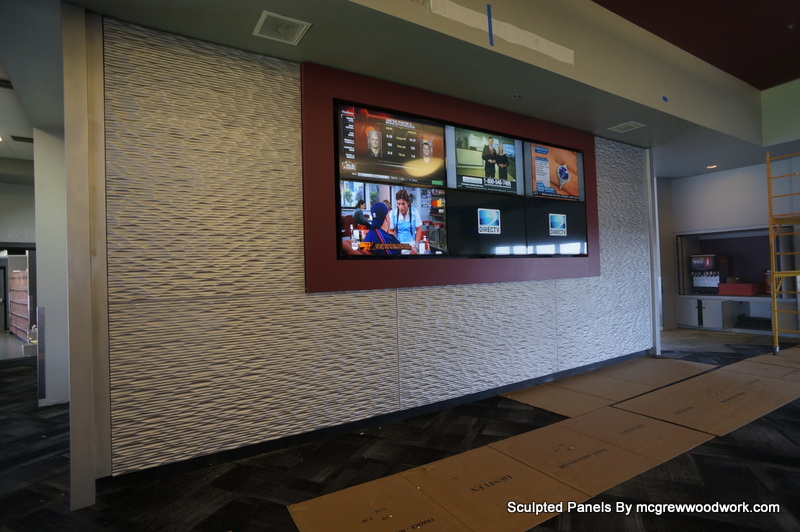

Sculpted paneling cone on my CAMaster ATC 508 using the Vectric Aspire Texture Toolpathing.

View Larger, Higher Quality Image

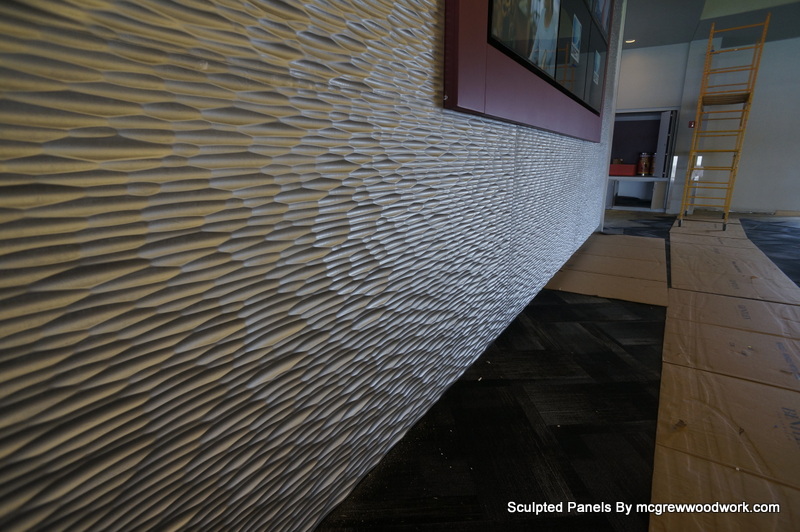

Close up


View Larger, Higher Quality Image

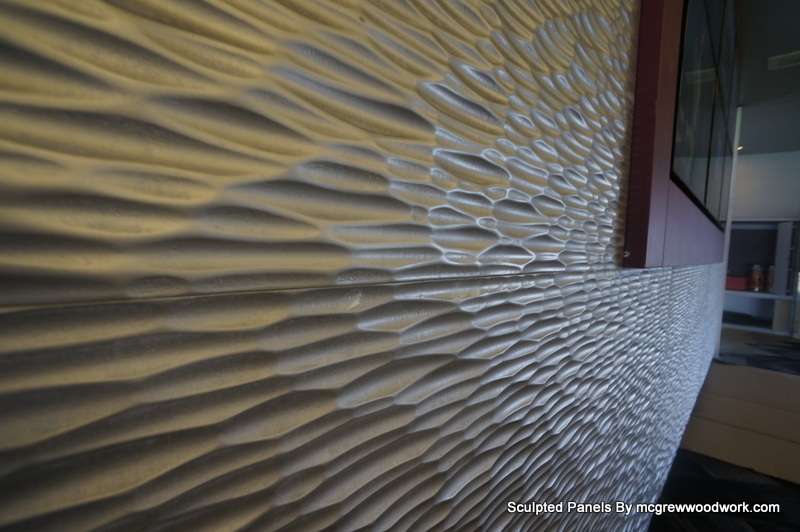

Texture


View Larger, Higher Quality Image

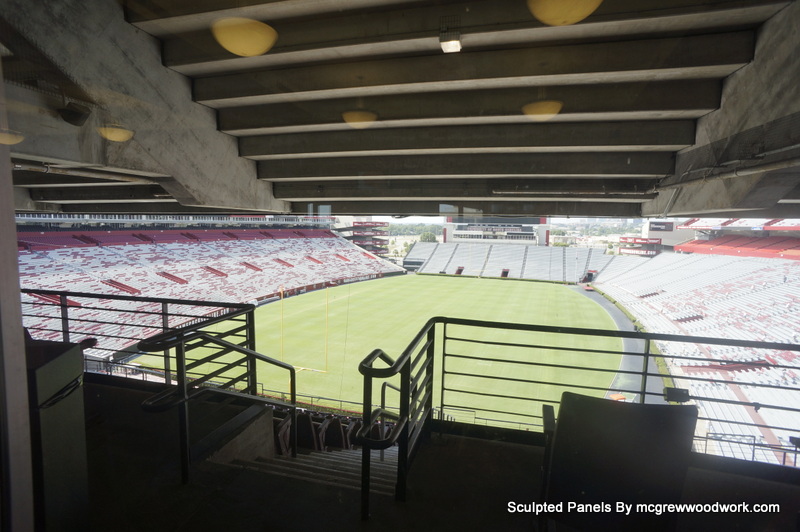

Williams Brice Stadium USC


View Larger, Higher Quality Image
End Zone Wall


Viewer Comments:


Posted By: Esl     [08/24/2014]
The joints where the panels meet are way too obvious - the software should take into account the overall size of the wall and each panel should be individualized so that the joints are less noticeable.


Posted By: James Mcgrew     [08/24/2014]
All real well and Good Unless specified exactly as shown and Installed.

Software had no input other than each panel is the same machining file repeated. If I were to spec I would tile and match. Aspire has all this capability as well. I wanted .25 reveals at the horizontal "Joints" same as the verticles which I had to prove to her were needed, showered her the horizontals Client did not the reveals


Posted By: Robert     [08/24/2014]
That's a pretty cool look James. What kind of material was used for the wall panels?


Posted By: James Mcgrew     [08/24/2014]
.75 HD F "door core" 2 " ball nose bit bout an hour a panel


Posted By: James Mcgrew     [08/24/2014]
.75 HD F "door core" 2 " ball nose bit bout an hour a panel


Posted By: Jeremy Talbot     [08/24/2014]
Very nice! We make those at work using Alphacam, they do take some time to run.


Posted By: Charles     [08/28/2014]
Aspire is great. I have Vectric VCarvePro and have also used the Texture Toolpathing for similar backgrounds between raised objects in carved panels. Virtually everyone who walks by the panel hanging on a wall in my shop is compelled to touch the background with a finger. Vectric really makes it easy.

How did you sand the panels?


Posted By: James McGrew     [08/28/2014]
we sanded these by hand


Posted By: ejlat     [09/15/2014]
Looks great, You should try Valchromate, thru color MDF, eliminates need for sanding.


Posted By: James McGrew     [09/15/2014]
I just contacted them Thanks !


Posted By: Sodamn Insane     [09/17/2014]
Very very nice! Thank you for taking the time to post and to inspire.


Posted By: Kerry Fullington     [09/23/2014]
Thanks ejlat, I have been looking for that material.
