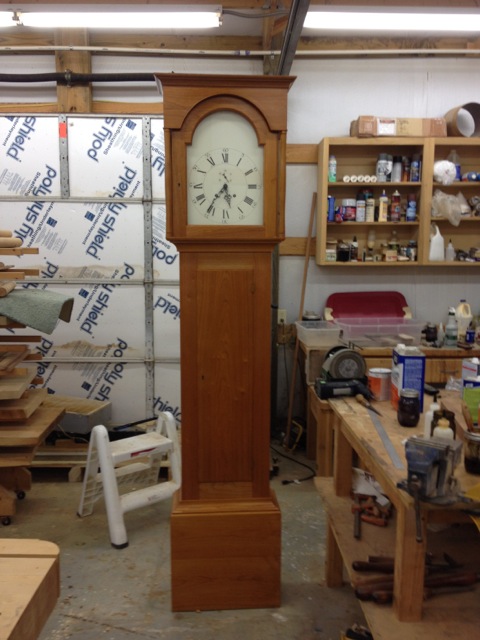

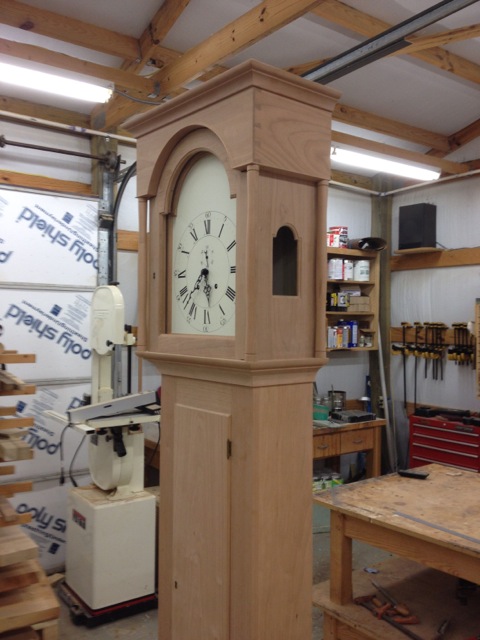

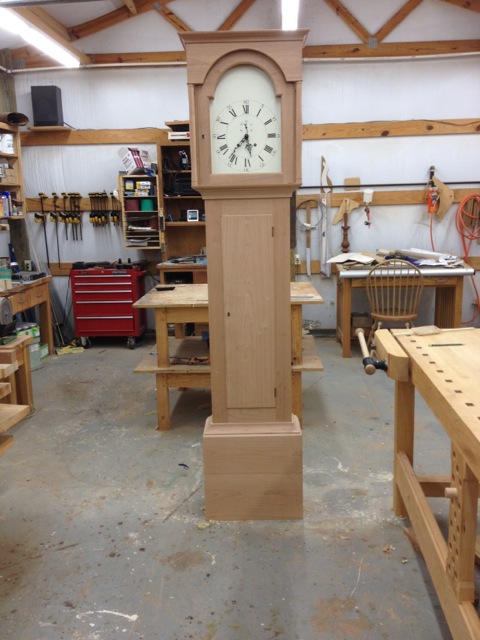

Shaker Tall Clock
Listing #4641 Listed on: 08/13/2015
Company Name: R Scaffe Cabinetmaker
Contact Name: Rob
|
 Member
|
|
|
Viewer Comments:
Posted By:
Dave Sochar [08/17/2015]
Very nice work.

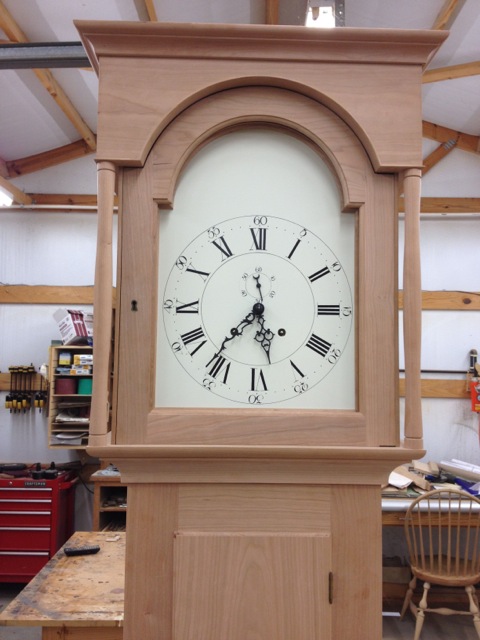

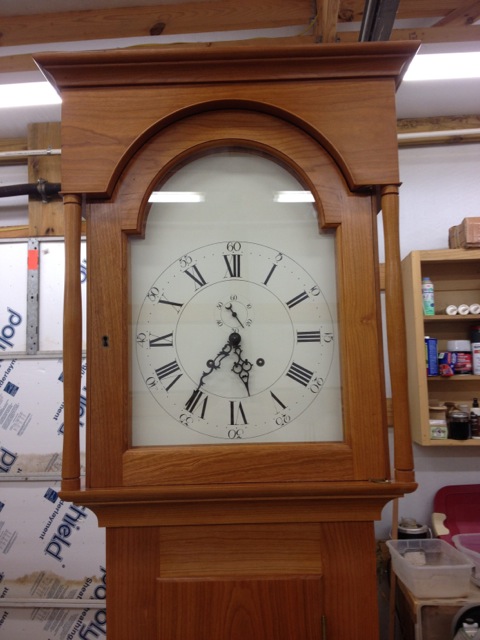

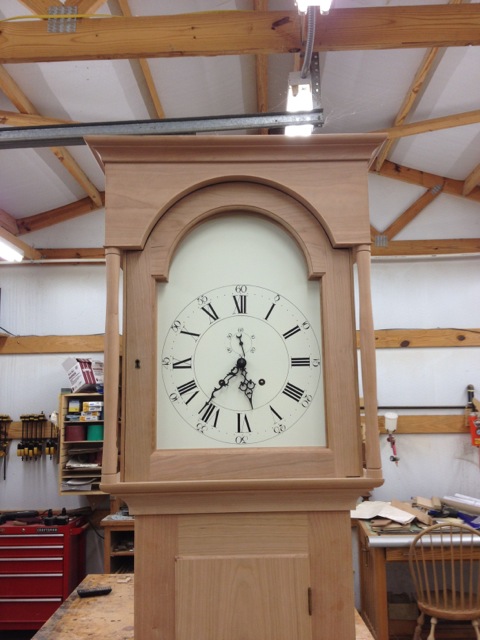

How does the front clock face door open when it is recessed under the arched bonnet? Seems like it would not clear it. I have seen it happen several times in architectural doors set into curved ceilings.
Posted By:
Rob [08/17/2015]
Hi Dave
The hinges are reproductions designed for that application by ball and ball,http://www.ballandball-us.com/hinges_clock_tallcase.html.
they are offset and perhaps that helps in that respect, first time I have used them. In any event, I simply mounted the doors and drove the single pin in part way so I could remove it easily. Then beveled from the center of the arc and down the vertical side with a spokeshave and plane remounted and repeated until it finally just cleared the opening.
Posted By:
Pinetree [10/26/2015]
Nice job, man that does look close what about seasonal change you think it will get caught up then or has it gone through the seasons.
Posted By:
Rob Scaffe [10/27/2015]
Thanks. Dimensional changes at the area around the door will be minimal and will not affect the function. In areas where movement might be a problem such as the large cove mold that runs across the sides, the solid 1 piece back and some interior case fastenings, i have used a variety of techniques that allow for free movement.
|
|
