Listing #4704   Listed on: 01/09/2016

Company Name: R Scaffe Cabinetmaker

Contact Name:   Rob Scaffe
Member

Cherry chest of drawers, Poplar secondary wood and White Pine drawers.
The Appalachian Cherry was from very old stock

View Larger, Higher Quality Image

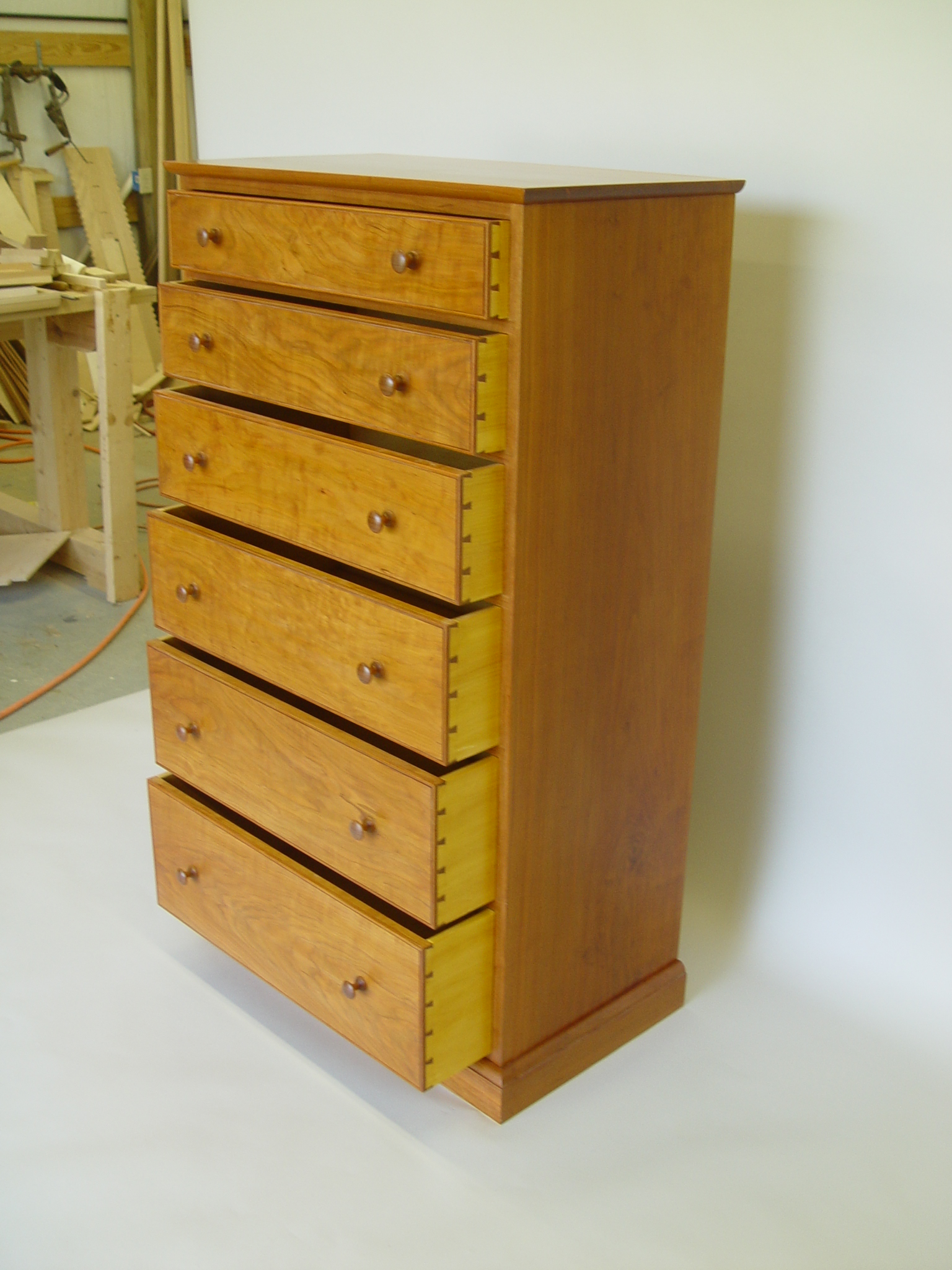

drawers


View Larger, Higher Quality Image

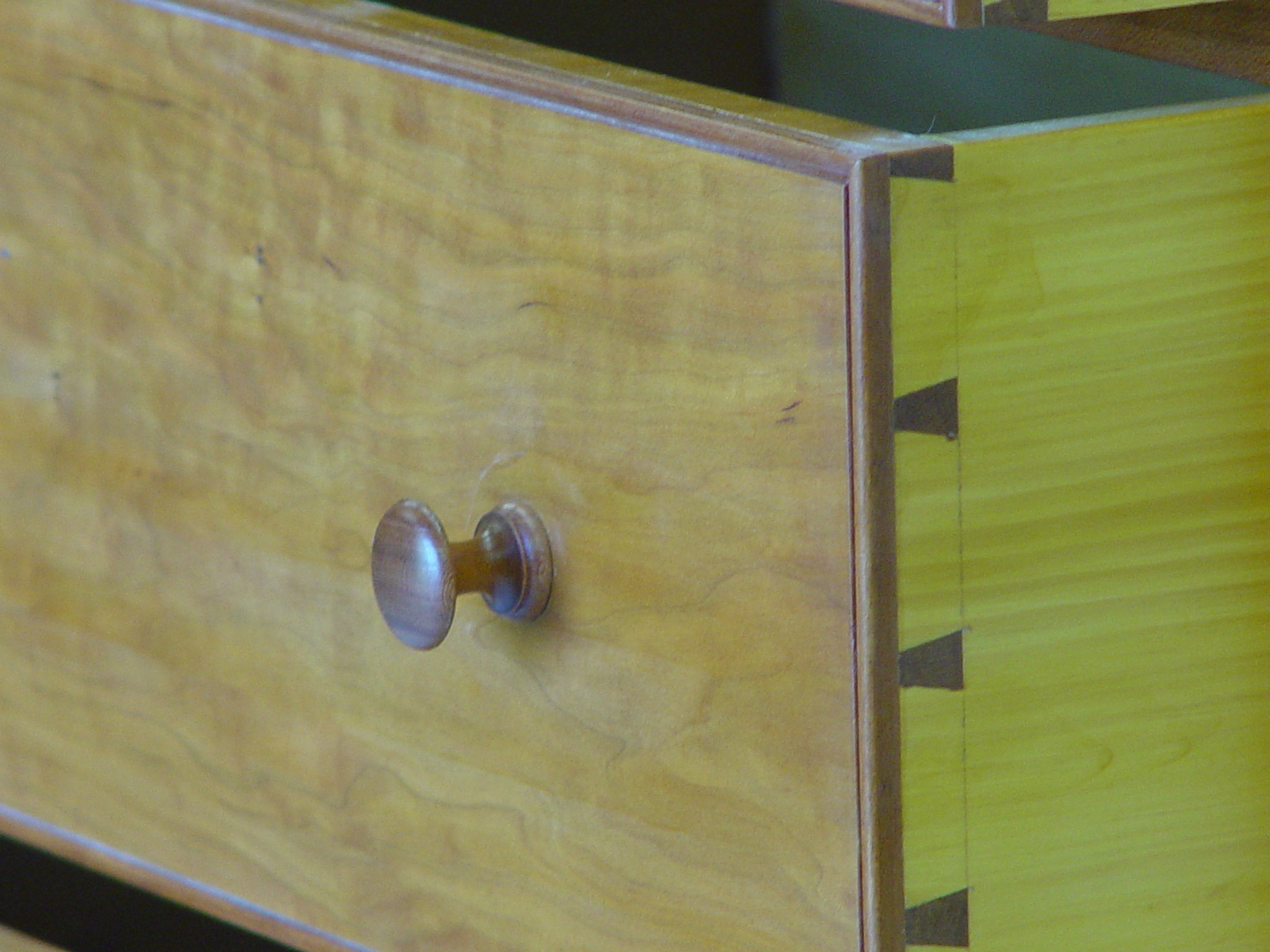

1888


View Larger, Higher Quality Image

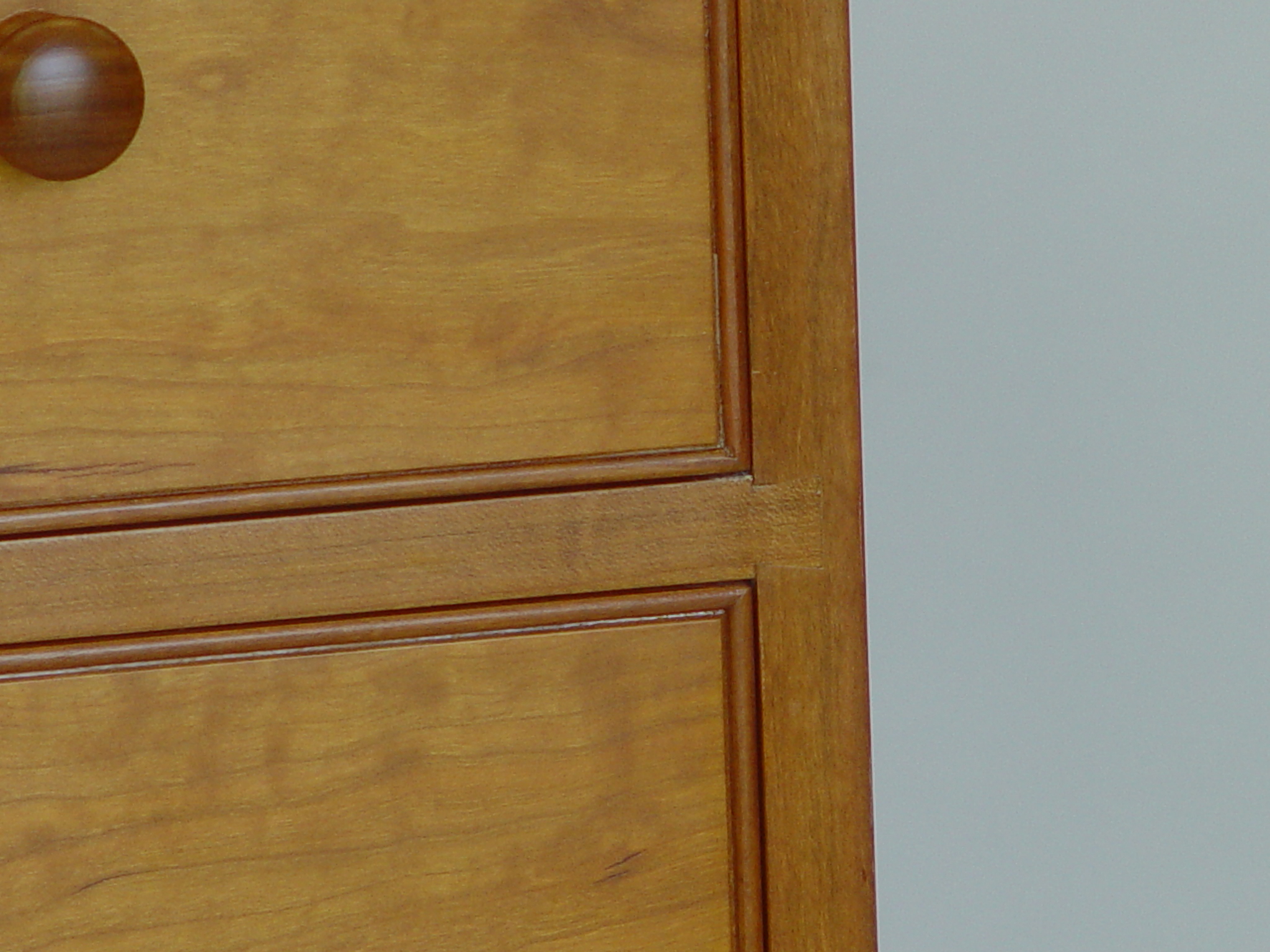

1889


View Larger, Higher Quality Image

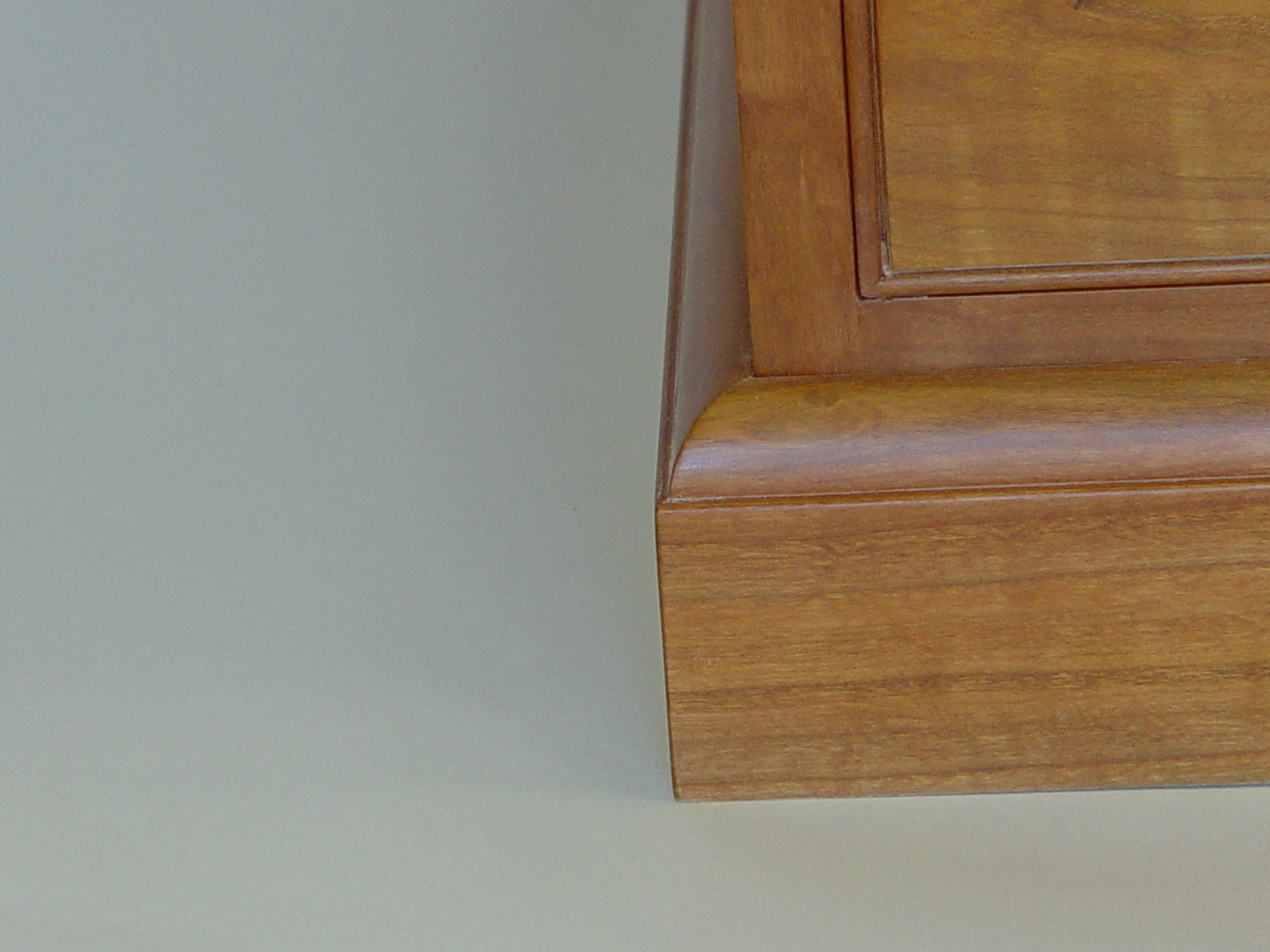

1893


View Larger, Higher Quality Image

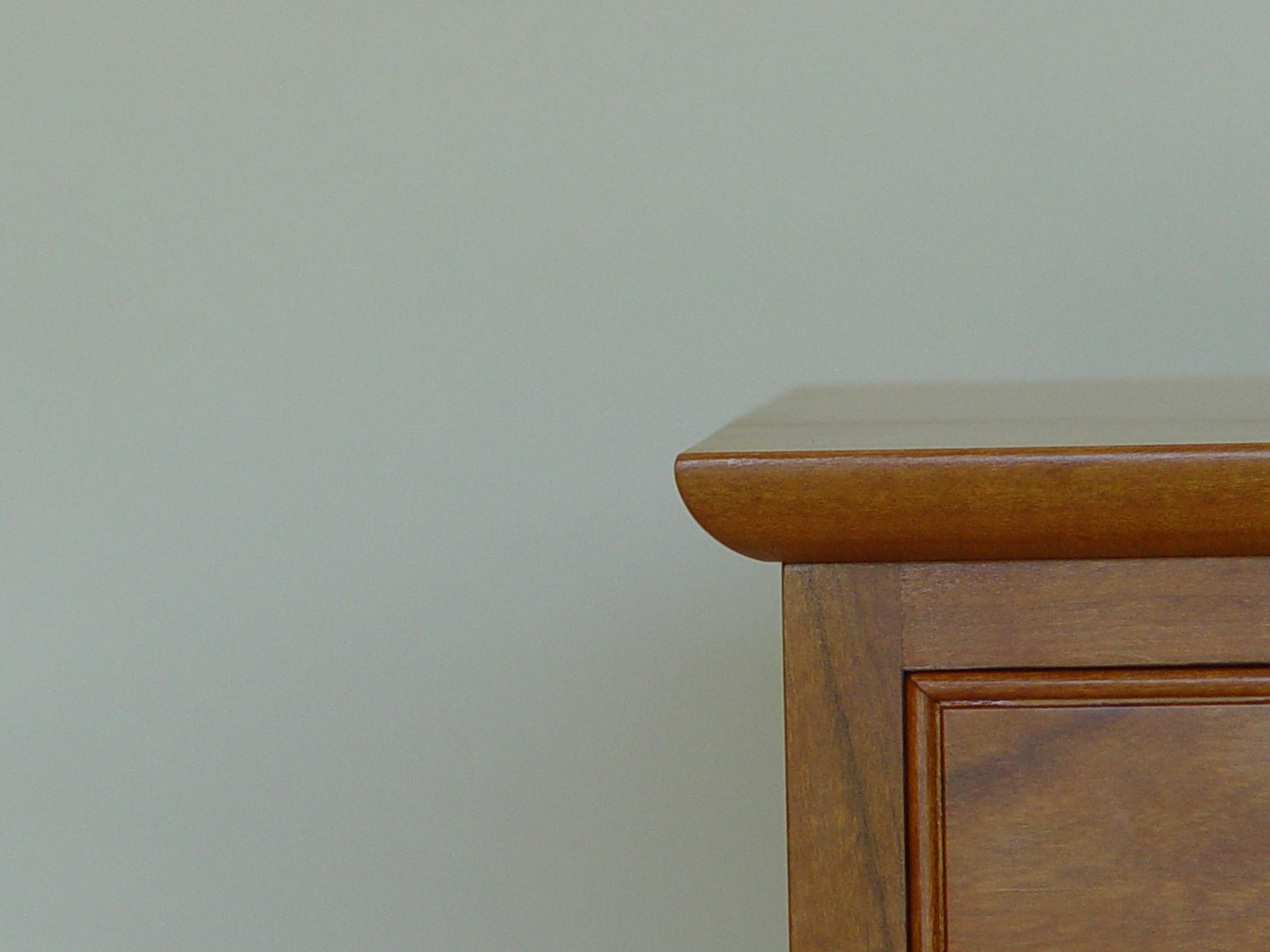

1894


View Larger, Higher Quality Image

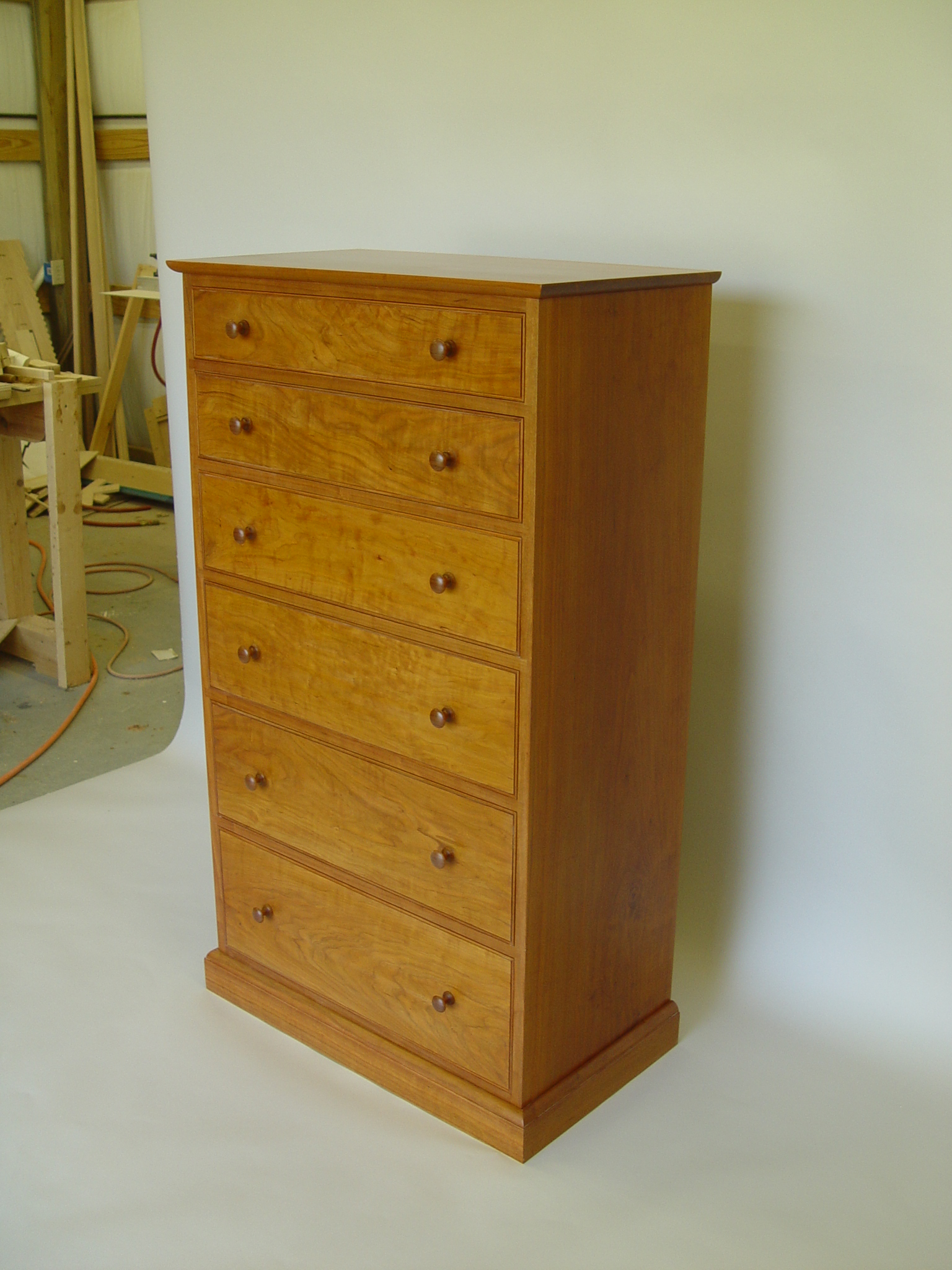

side


View Larger, Higher Quality Image

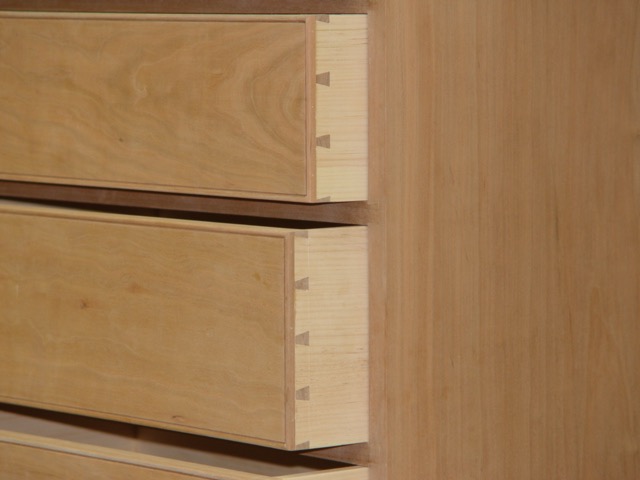

22


View Larger, Higher Quality Image

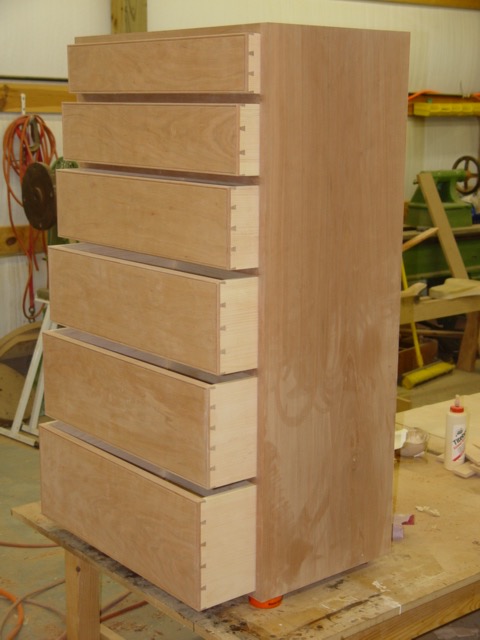

21


View Larger, Higher Quality Image

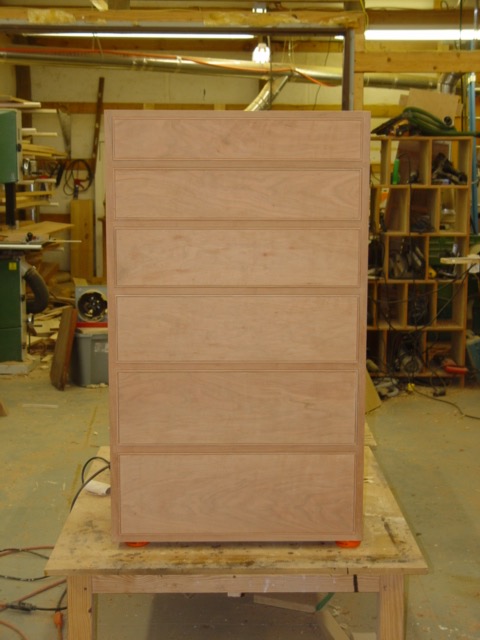

20


View Larger, Higher Quality Image

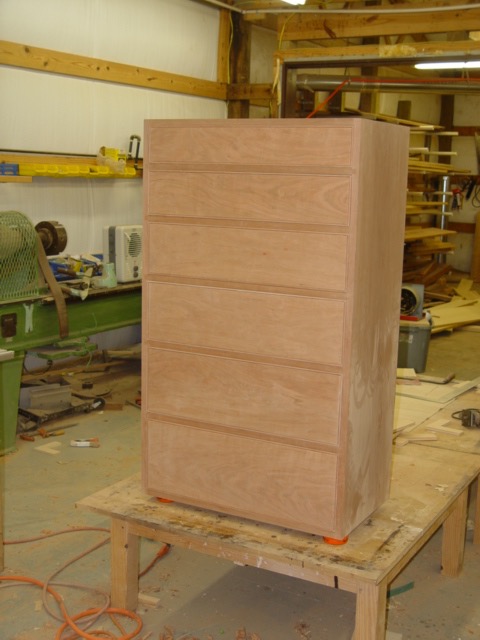

19


View Larger, Higher Quality Image

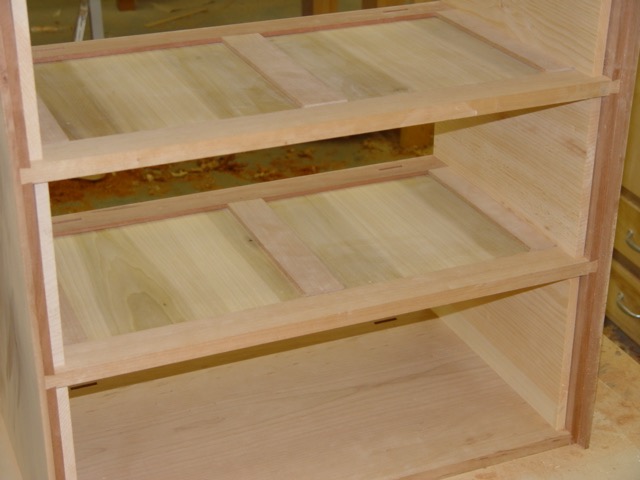

18


View Larger, Higher Quality Image

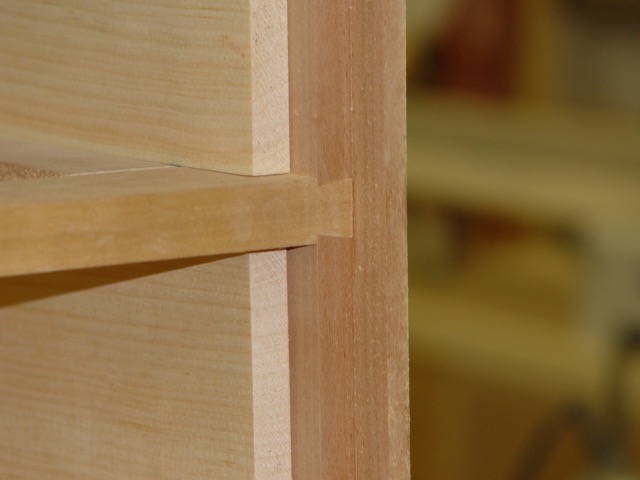

17


View Larger, Higher Quality Image
16


View Larger, Higher Quality Image

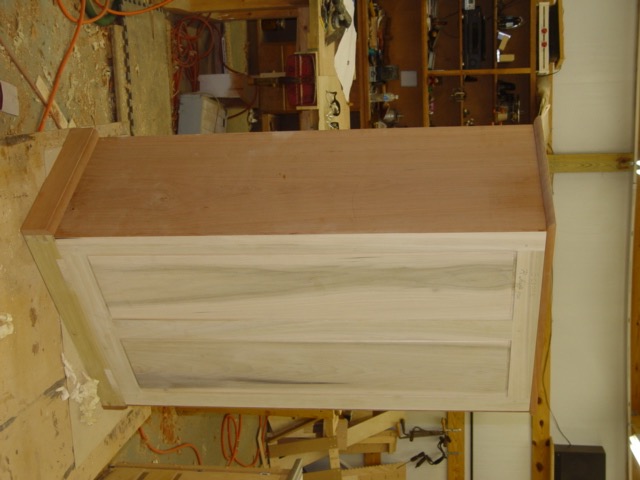

15


View Larger, Higher Quality Image

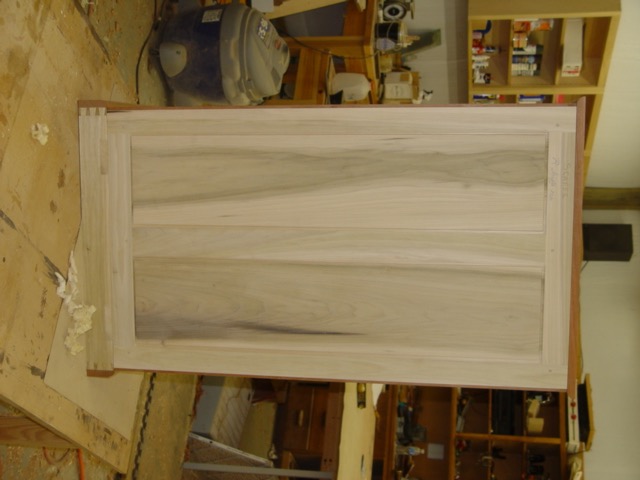

14


View Larger, Higher Quality Image

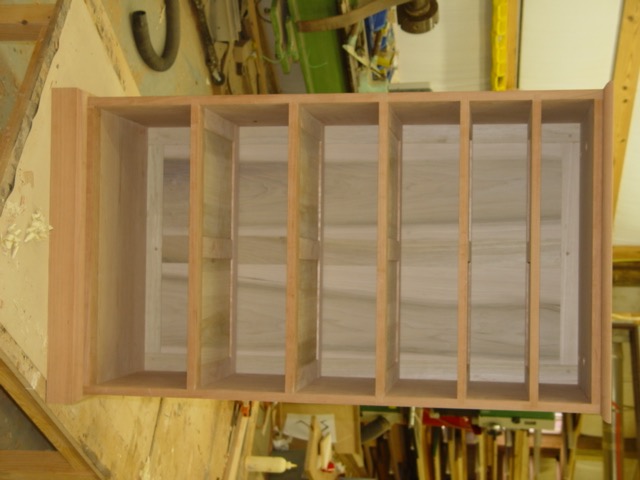

13


View Larger, Higher Quality Image

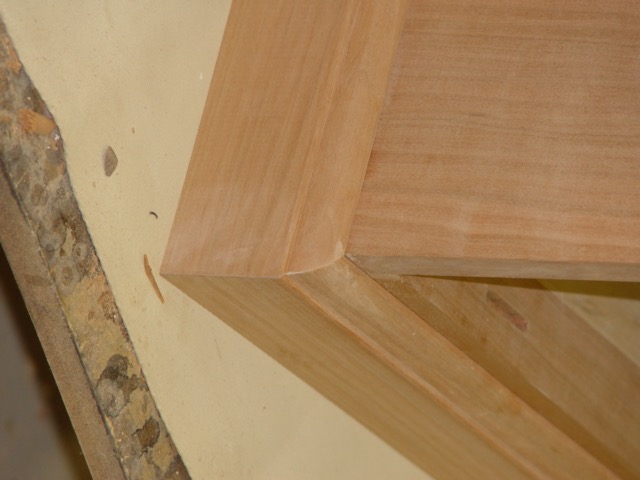

12


View Larger, Higher Quality Image

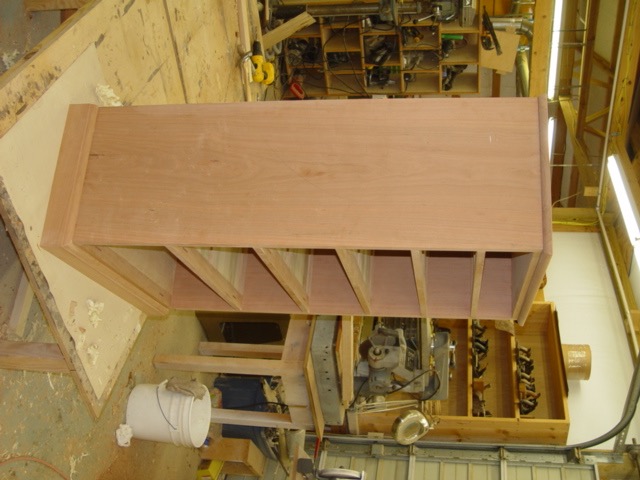

11


View Larger, Higher Quality Image
10


View Larger, Higher Quality Image

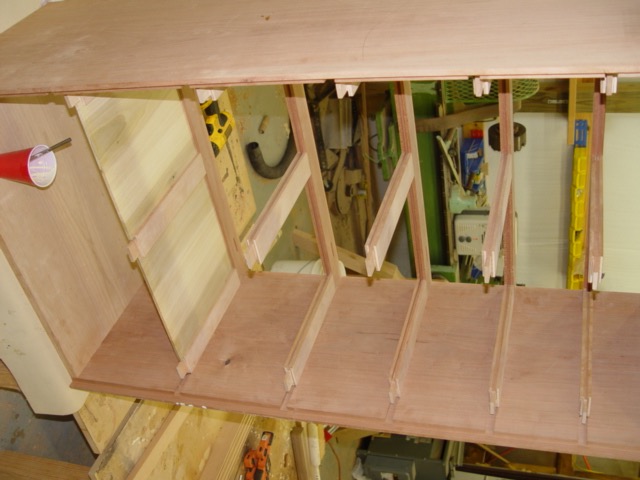

9


View Larger, Higher Quality Image

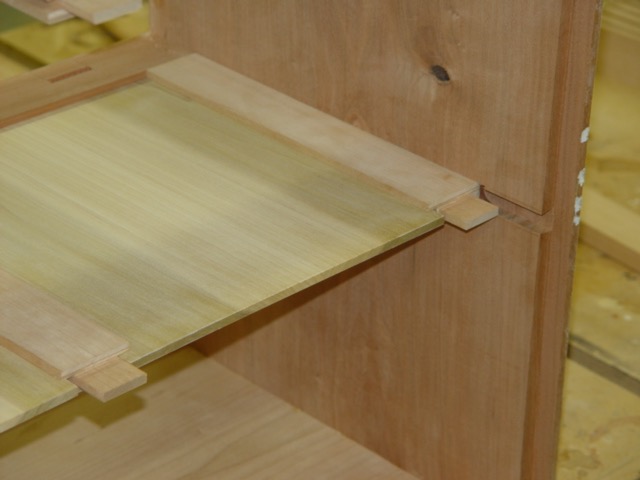

8


View Larger, Higher Quality Image

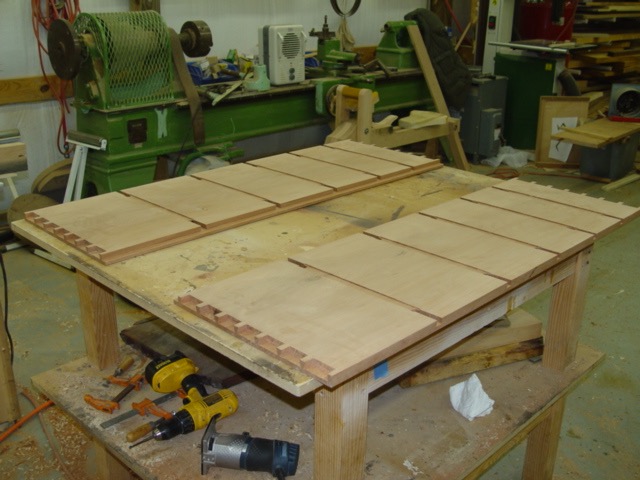

7


View Larger, Higher Quality Image

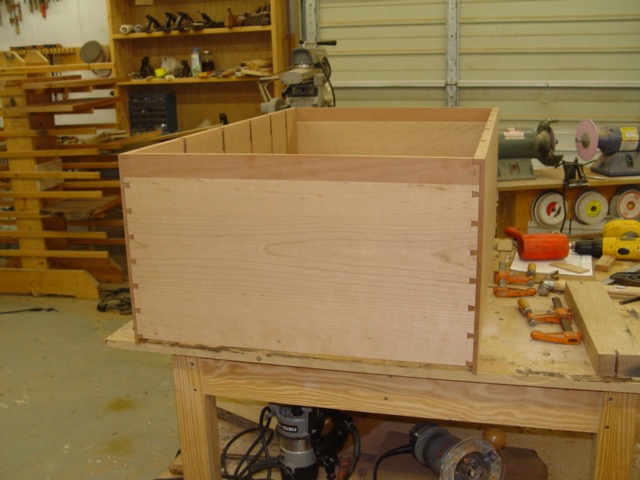

6


View Larger, Higher Quality Image

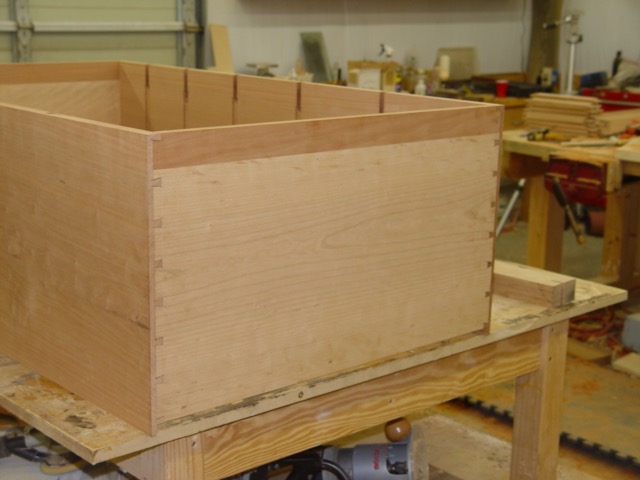

5


View Larger, Higher Quality Image
4


View Larger, Higher Quality Image
3


View Larger, Higher Quality Image

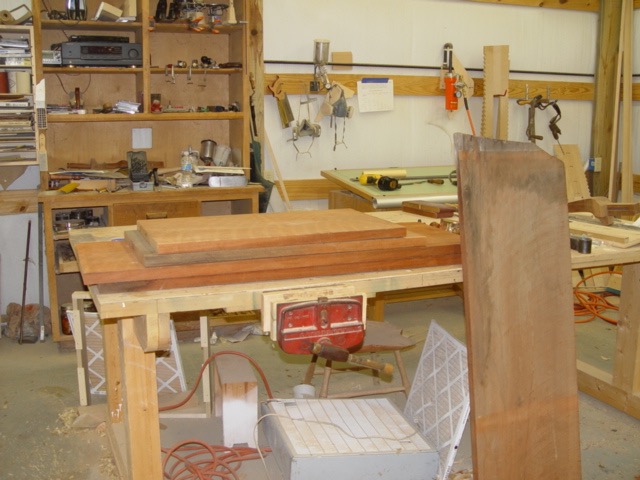

2


View Larger, Higher Quality Image

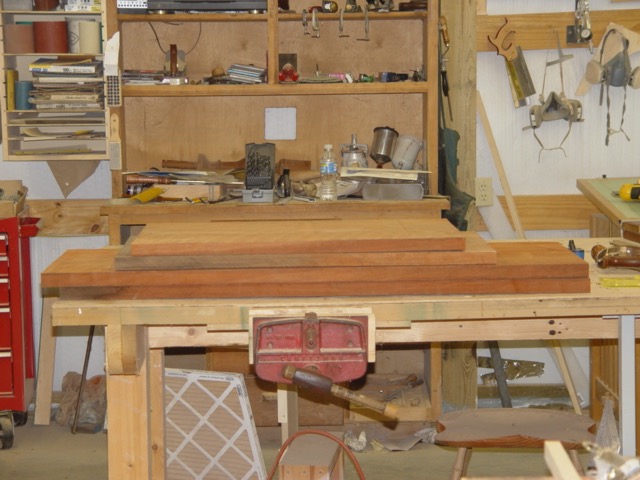

1


Viewer Comments:


Posted By: Max Neu     [01/13/2016]
Very nice!That is a true heirloom piece,not many people use that kind of quality anymore.What was your method for the sliding dovetails,hand or machine cut?


Posted By: Rob     [01/13/2016]

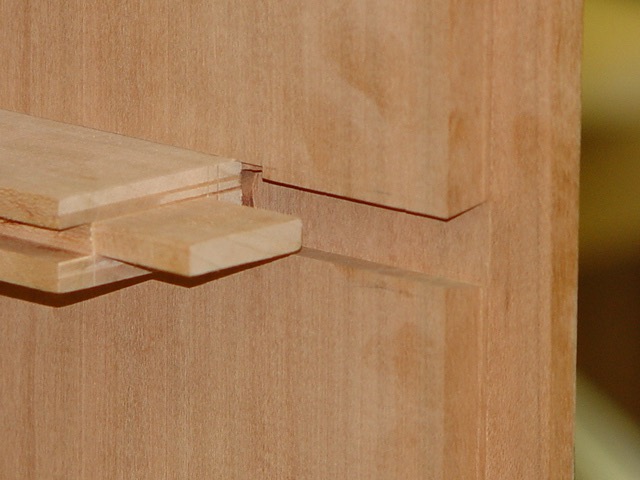

Thank you. I use the same shop made jig with router for the sliding dovetails and dado that connects them. The rails are glued into them. The cross tenoned pieces are glued and pinned in the front rail mortise.at the back rail there is a gap at the shoulder and the tenon floats in the mortise and dado. This allows for movement of the sides without cracking. All other dovetails I cut by hand.
