Message Thread:

Impact door

5/1/19
Ben Whaley Member

I have been asked to build an entry door for a customer in FL. I was curious what constitutes an impact door. I know that they need 3 point locks, what else? Thanks in advance

5/3/19       #2: Impact door ...
doug mclaren  Member

1/ if u have to ask dont quote it
2/ doesnt really have to be an " impact " door?
3/ often houses that are co'd already can be a typical entry door.
4/ typical requirements- laminated not single piece anything.

2 1/4 inch thick

Solid 1 3/4 jambs anchored to buck and concrete every 12 inches with tapcons

7/16 +impact glass

Tested by lab with 2x4 cannon impact test

Approved engineers deawings

Some entries need 5 point locking system

Typical doors can be 400 +lbs so need commercial grade closers

Heavy duty hinges like 5 each 3/16 nickle chromed bronze hinges with bearings at the knuckles


View higher quality, full size image (1536 X 2048)

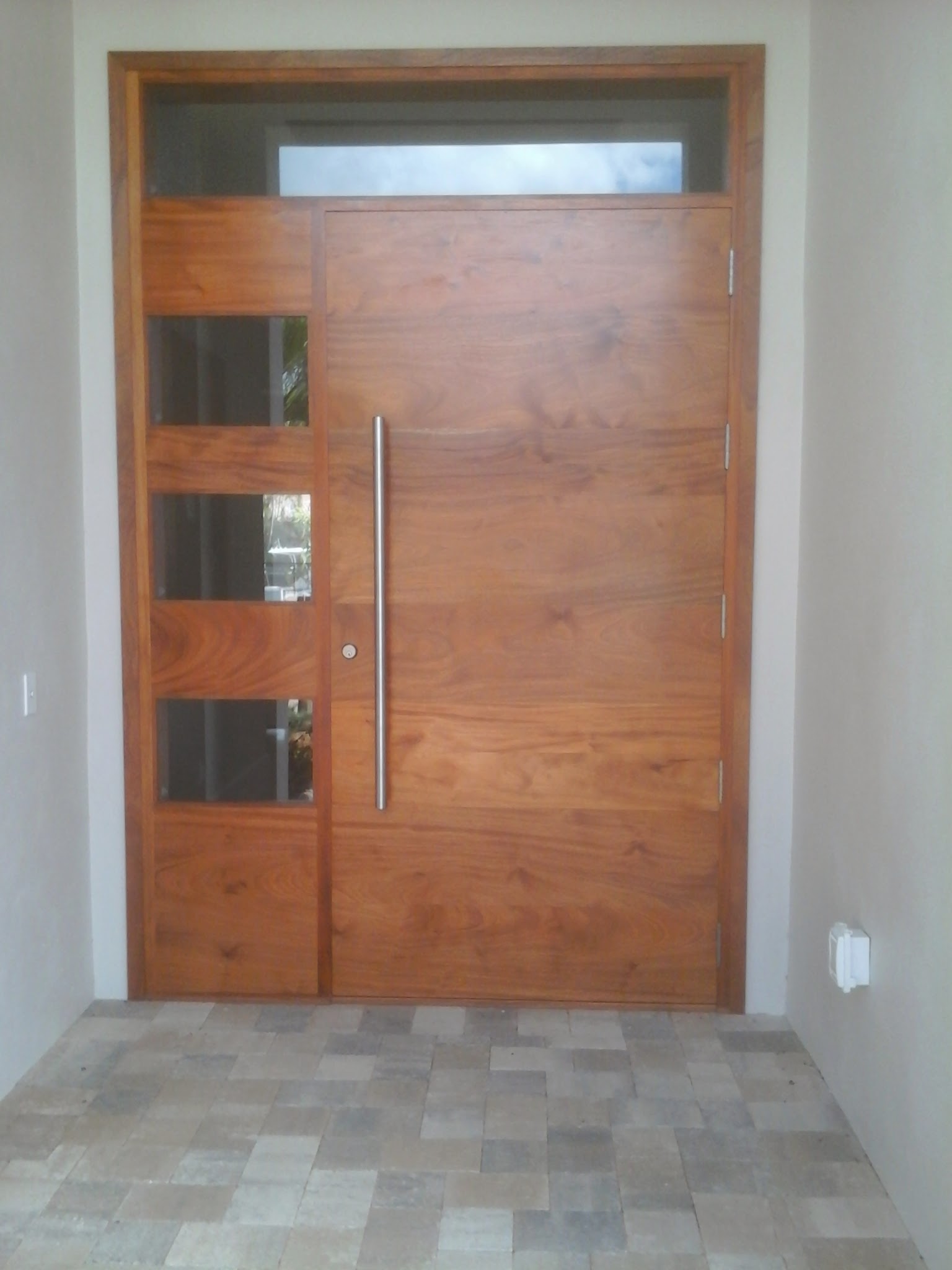

View higher quality, full size image (2048 X 1152)

5/3/19       #3: Impact door ...
David R Sochar Member

If you sell doors subject to Coastal storms., They have to go thru rigorous tests, and you provide the doors and pay for the staff to test them.

I'll bet lunch at a nice place that the customer is hoping to end run around the regulations and save money by getting a novice to build a door.

Good luck.

5/3/19       #4: Impact door ...
Ben Whaley Member

I have built over 75 custom doors, just never an impact door. My customer wants drawings to submit for an engineers stamp. The door I was planning on building would be 2 1/4" thick with stave cores, double
Pre finished raised panels, 3 point lock and ball bearing hinges. I think this will be approve I just wanted to see if I was missing anything. Thanks for the feedback

5/10/19       #5: Impact door ...
Steve Juhasz  Member

Website: http://www.centrestreetmillwork.com

The arrogance and hubris that comes across from your posts David is starting to really wear on me. You are a great builder no doubt, but really you need to check your ego. And it sounds like you owe Mr. Whaley lunch at some nice place?

5/10/19       #6: Impact door ...
Joe Calhoon  Member

Ben, If you search around the Dade county gov site there are great shop drawings for companies that have tested impact doors.

Miami-Dade Impact Door Testing
