mdf interior doors

3/11/20
gary

Has anyone tried making paint grade one piece 1 3/8" thick interior doors out of mdf on the cnc? Shaker or raised paneI. I know the hinge screw area will have to be dealt with but that is an easy fix.We have made many cabinet doors this way without a single call back. Other then the perceived low quality what else might one need to adress?

3/11/20       #2: mdf interior doors ...
Mark  Member

Not only the hinge area but the lock set area also
Never made an interior door of MDF but have installed a few locksets in them.
It doesn't bore well on the edge and mortising the latch is a mess also as whats left of the door edge is easily broken.
As a result of those experiences, I will usually refuse to hang or install locksets on them

3/11/20       #3: mdf interior doors ...
Adam

The edges will be very fragile. They will be insanely heavy. They will take on moisture like a sponge. The finished dimensions may change with the moisture.

3/12/20       #4: mdf interior doors ...
Mark B Member

yeah... what he said, yuck. But I dont doubt you'll probably make millions from the loser HGTV flipper crowd.... Im always on the fence with the Dave S/moving with the times thing but this notion is a concept that is a straight path to the ditch.

3/13/20       #5: mdf interior doors ...
Mark  Member

Oh yeah, if you can do them cheap enough, flippers will buy them in a heartbeat. Actually had a guy ask me to glue the cabinet doors from the tear out to sheet MDF for two interior doors. I refused and he has been running his mouth about me since. Says I can't make doors......

3/13/20       #6: mdf interior doors ...
Scott

I don’t know of anyone who has done a one piece mdf door but there was a guy building 3 piece mdf doors and selling them to house builders.
He would take 3 pieces of mdf, usually 1/2 inch thick, machine two pieces for whatever panel or door look you wanted,
Glue the three pieces together, he would also dato the two edges on the cnc at the same time so when he glued them up he could glue in a piece of solid on both edges . Size them on the cnc, break the corners and done.
They looked nice, I have no idea on how they stood up?
I imagine you could do a. door on the cnc out of a single piece as well, but no idea what you would end up with.

3/16/20       #7: mdf interior doors ...
Tom Goodman  Member

What about the doors from Tru-Stile?

3/16/20       #8: mdf interior doors ...
BradS

And what would these things weigh? I would not want to be the installer.

3/16/20       #9: mdf interior doors ...
David R Sochar Member

Junk. Heavy junk. No edge integrity.

5/26/20       #10: mdf interior doors ...
Melvin Chupp Member

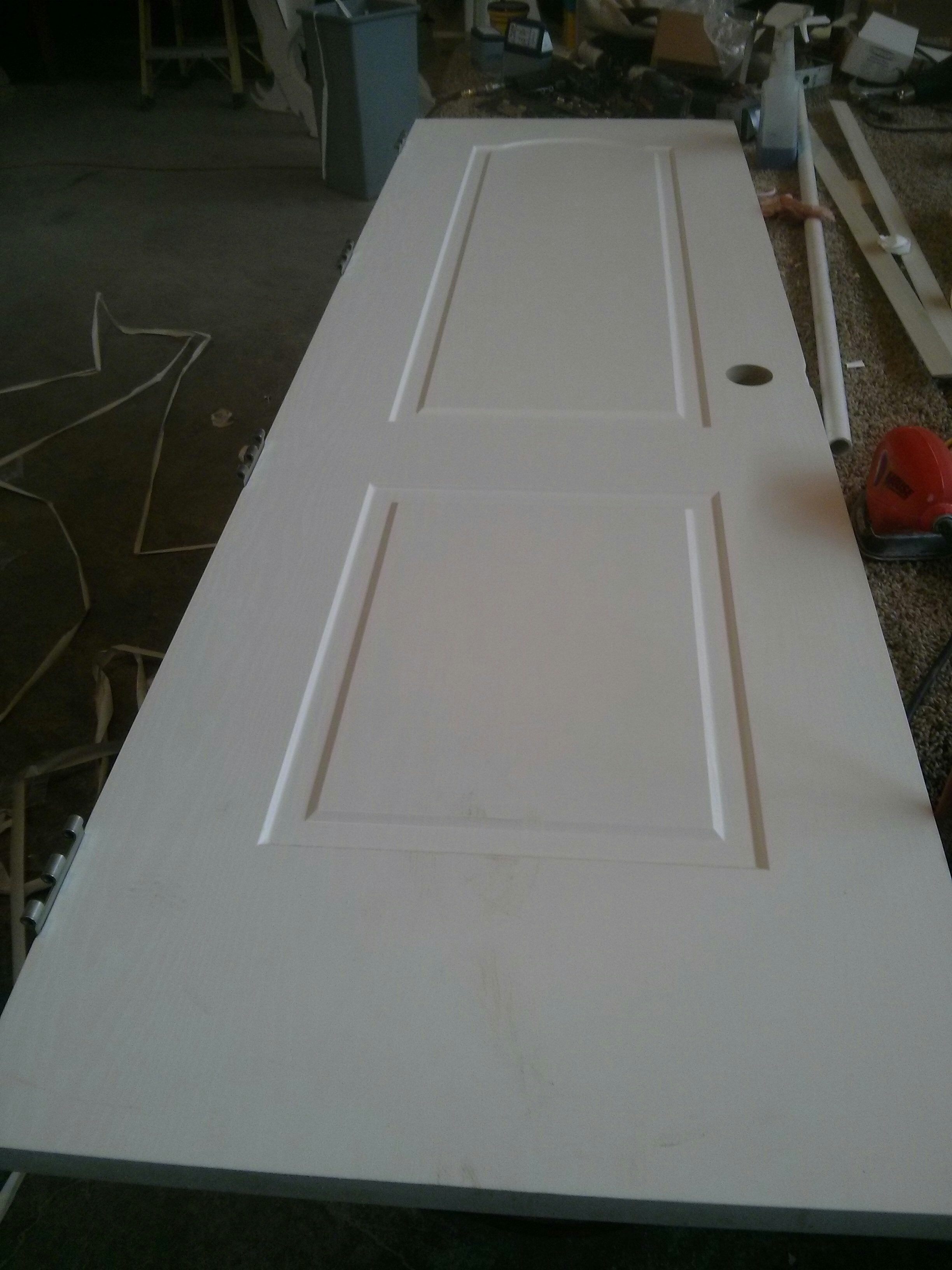

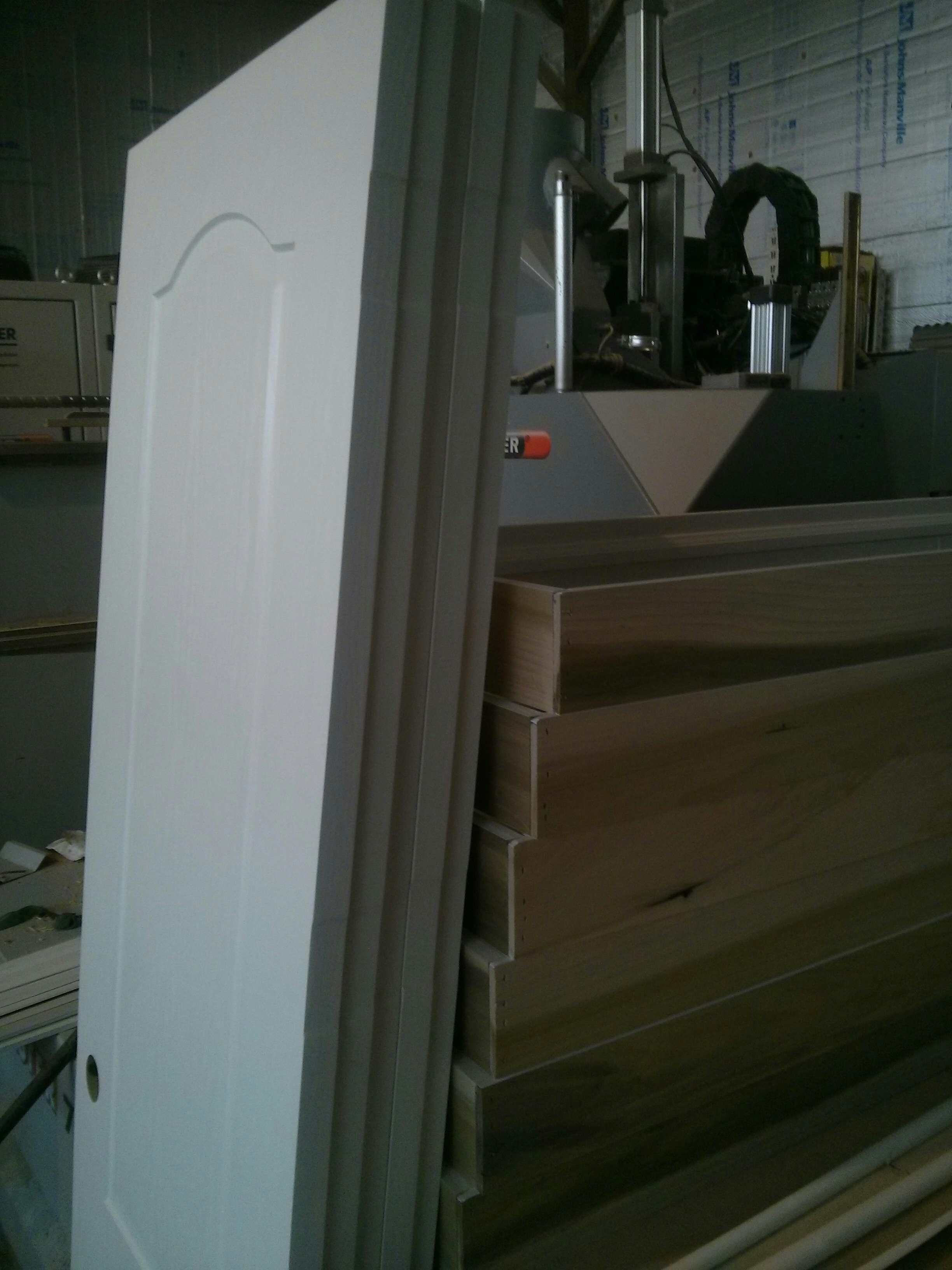

I have done what you are asking about. We just completed an order for 30 prehung doors. We used 1 1/4" LDF machined on both sides. We used 2" flat head sheet metal screws for the hinges. I then 3D laminated them with a white woodgrain. (thermal-foil) We tested these doors by saoking them for 3 1/2 days in a tub of water and surprisingly had only a very slight swelling in the one edge.


View higher quality, full size image (2448 X 3264)


View higher quality, full size image (2448 X 3264)
