Curved Ranged Hood

11/9/21
Peter Member

Hey guys,

I've got an interesting hood to build for a customer and I was just trying to see if anybody had any better ideas than me ..

Where I'm at range hoods must have an access to the piping for inspection (i.e. no solid front), until now I have been solving this by making a door in the shape of the hood as the "front panel" that operates on hinges or is wedged into place by some kind of trim. Because of this reason we try to stay away from doing hoods that are curved on three sides, but of course that's the hood I need to build now.

I can't come up with a good way to make a curved front panel removable without having a terrible joint where the three curves come together, and I have to mount the curved portion to a cabinet box that will support it.. I was thinking I could make the three curved section separate from the box part of it, but I'm not sure how that's going to look when it's trimmed out, etc.

Any ideas?

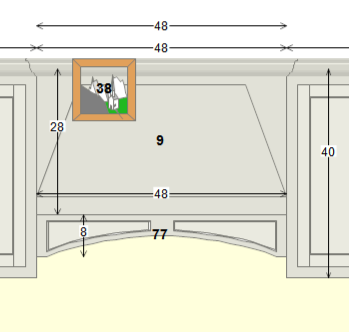

I've attached a picture of the version I have on my plans.. it doesn't reflect the curved part but where it's angled it will be curved.

11/9/21       #2: Curved Ranged Hood ...
Quicktrim

Perhaps you can get the appliance guys to preattach the piping to he blower and then push the whole assembly up through the ceiling to the attic space.

Then you make the final connection there with plenty of room to work. Flue then through roof, done.

Has worked for me in the past.

11/10/21       #3: Curved Ranged Hood ...
james e mcgrew  Member

Website: mcgrewwoodwork.com

Are you thining Arch or curve ? We use Star hangers to snap any panel on flush which needs or not to be removeable. next week i am using them to attach my cushions on my sailboat which i am convinced is far better than snaps or velcro.

Ask about the new gemini system, Kip Porter (Founder of Southern Architectural Waoodwork, For those who remember that far back) Kip's a genious who intends to set the new standard in fastening from his experience. I do many of his prototypes and am convinced he is spot on with the best there is in fastening.


View higher quality, full size image (604 X 810)

https://www.starhanger.com/

11/10/21       #4: Curved Ranged Hood ...
nicko

Could you cut a hole in the cabinet next to the hood with a removable access panel to inspect the pipe? Or a small hole and inspect it with a small flexible inspection camera.

Nicko

11/10/21       #5: Curved Ranged Hood ...
Peter Matos

I would think it would be fairly easy to make the curved section removable and make a little frame that it attaches to that stays on the box cabinet using neo magnets or something similar. Then you can trim out the entire curved portion and make it part of the removable section. We have done similar before. We have also made inspection panels on either side of the fan units. Good luck man.

11/11/21       #6: Curved Ranged Hood ...
Nick

I’m not sure how relevant this is, but I built one recently that was similar except free-standing on the wall. The installers had to play around with the piping to be able to push it up and have it connect, I also remember the blower motor coming out so they could reach up through the pipe.

I’ve also heard of using flex duct, which is not ideal but would work.

I would agree that it should be accessible if possible, but I’m not sure of the legitimacy of that as a code issue as there are stainless hoods that accept the liners that are definitely not accessible.


View higher quality, full size image (4032 X 3024)


View higher quality, full size image (4032 X 3024)

12/22/21       #7: Curved Ranged Hood ...
D. Onti

The issue here is getting the piping inspected by the hvc building inspector. Try telling him to look through a hole or use a camera and he will tell you to just take it down or he won’t sign off.
No flex hose is allowed on vent hoods. They have gotten lot stricter lately
