Cabinet pocket doors

11/22/21
Mike D

Does anyone have a successful pocket door solution? We have used Accuride Pro-Pocket system for many years. The last few years the product has taken a nose dive in quality.
Still have the issue of the doors scarring on the rail when slid in.
We have tried the Salice Excedra. Much too costly and time consuming to use for coffee bar doors however.
So wondering if there are any other products available or has anyone successfully used the pro-pocket with painted doors?
thanks

11/22/21       #2: Cabinet pocket doors ...
duster

The Accuride 1432 is a better piece of hardware than the Pro Pocket. Takes a little longer to install, but they work better with no sag. The KV 8092 is also an upgrade in quality for a bit more money. I use those for large entertainment center doors.

11/23/21       #3: Cabinet pocket doors ...
Mike D

Thanks, I did use the 1432 probably 20 yrs ago. Have to give it another try. The Knape and Vogt product seems to be tricky to get in Canada.
Back to prototyping.

11/23/21       #5: Cabinet pocket doors ...
james e mcgrew  Member

Website: mcgrewwoodwork.com

We use 8092s a decade ago and have used them ever since

11/23/21       #6: Cabinet pocket doors ...
Mike D

I'm having trouble located some in Canada. Website says Home Hardware and Rona are Distributors but only for certain products (not these)

11/23/21       #7: Cabinet pocket doors ...
Scott Markwood

Website: http://www.hafele.com/us

Allow me to suggest the Hafele XL pocket door system. It's a 2 hinge system, so it's not for massive doors, but up to 60" tall and up to 35lbs it's a nice solution. I've always found it easy to install and adjust and nothing rubs against the door.

I just looked it up on our website and have learned that we have changed the name for the complicated "XL Pocket Door System" to the much more intuitive "Slido F-Park 71 16A". Ask for it by name. :-)


View higher quality, full size image (1280 X 1280)

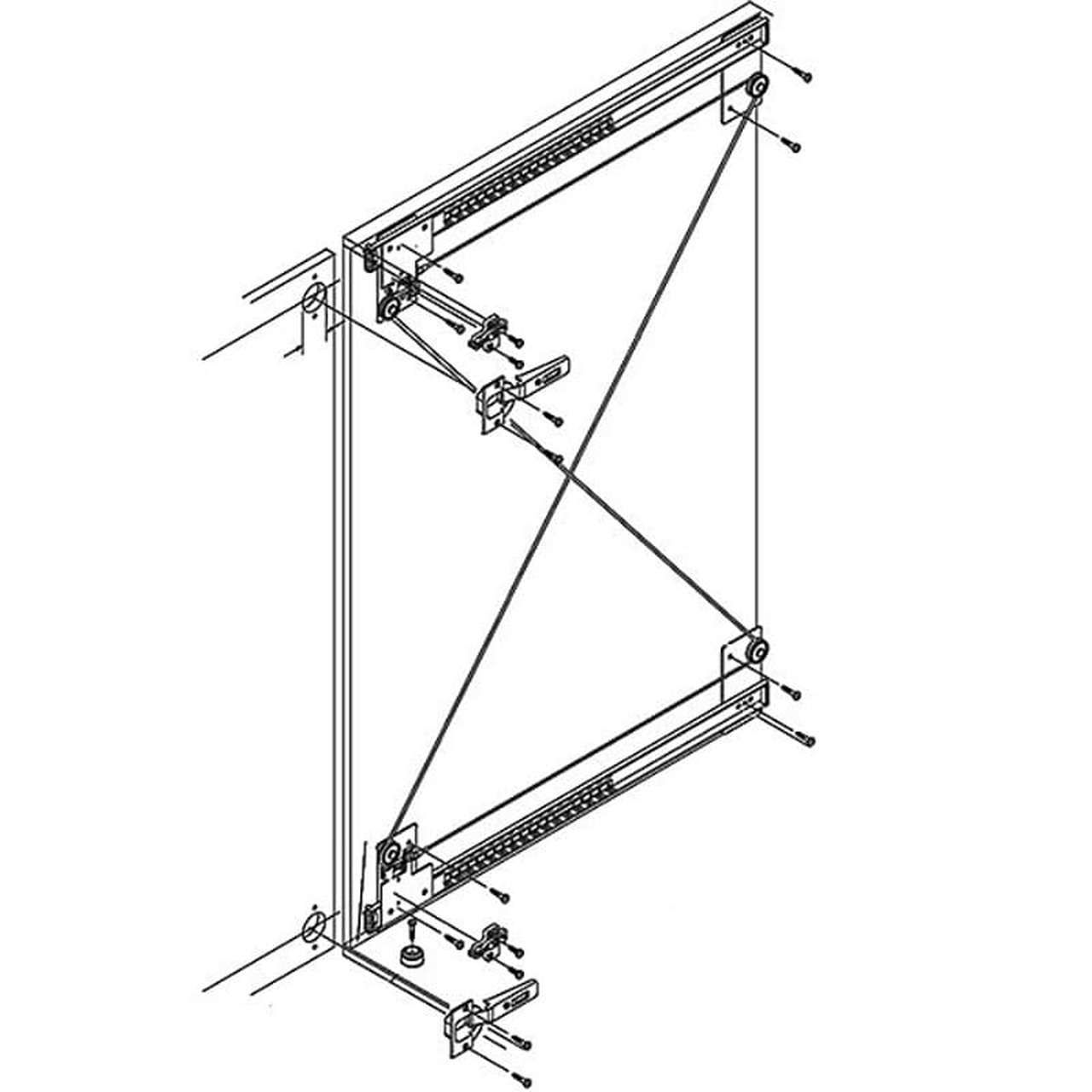

Häfele Slido F-Park 71 16 (Was "XL")

11/27/21       #9: Cabinet pocket doors ...
Thomas Gardiner

Try McFadden for the KV
