Full overlay pocket door hardware

8/26/24
Matt Calnen

Hello all, I have a cabinet door that is 47” tall, 20” wide, 3/4” thick. I need to set it up as a pocket door with full overlay on a 3/4” cabinet side. The door weighs 20 pounds.
I was looking at the Accuride 1321, but it says the door must be 42” or less in height, 24” or less in width, and under 30 pounds. Has anyone ever pushed the manufacturer parameters and had success using a taller door with this hardware?
My other option is KV 8091 with the rack and pinion system. It looks to be not fun to install as it has to mount to the side of the partition to get full overlay.
Would anyone recommend a different system for my needs? Thanks in advance, Matt

8/28/24       #3: Full overlay pocket door hardware ...
Dennis Bean  Member

Website: http://www.saliceamerica.com

Hello Matt,

The Salice Exedra pocket door hardware is perfect for this application. Exedra is exceptionally smooth in operation. Salice will assist you every step of the way to insure you make the correct selection.

Please see the link below to detailed specs for Exedra. I have also included an "order" form that you can complete. This will allow our engineers to fully understand the details of your project.

You are welcome to contact me any time with questions

Regards,

Dennis Bean
Salice America
Technical Support/Customer Service

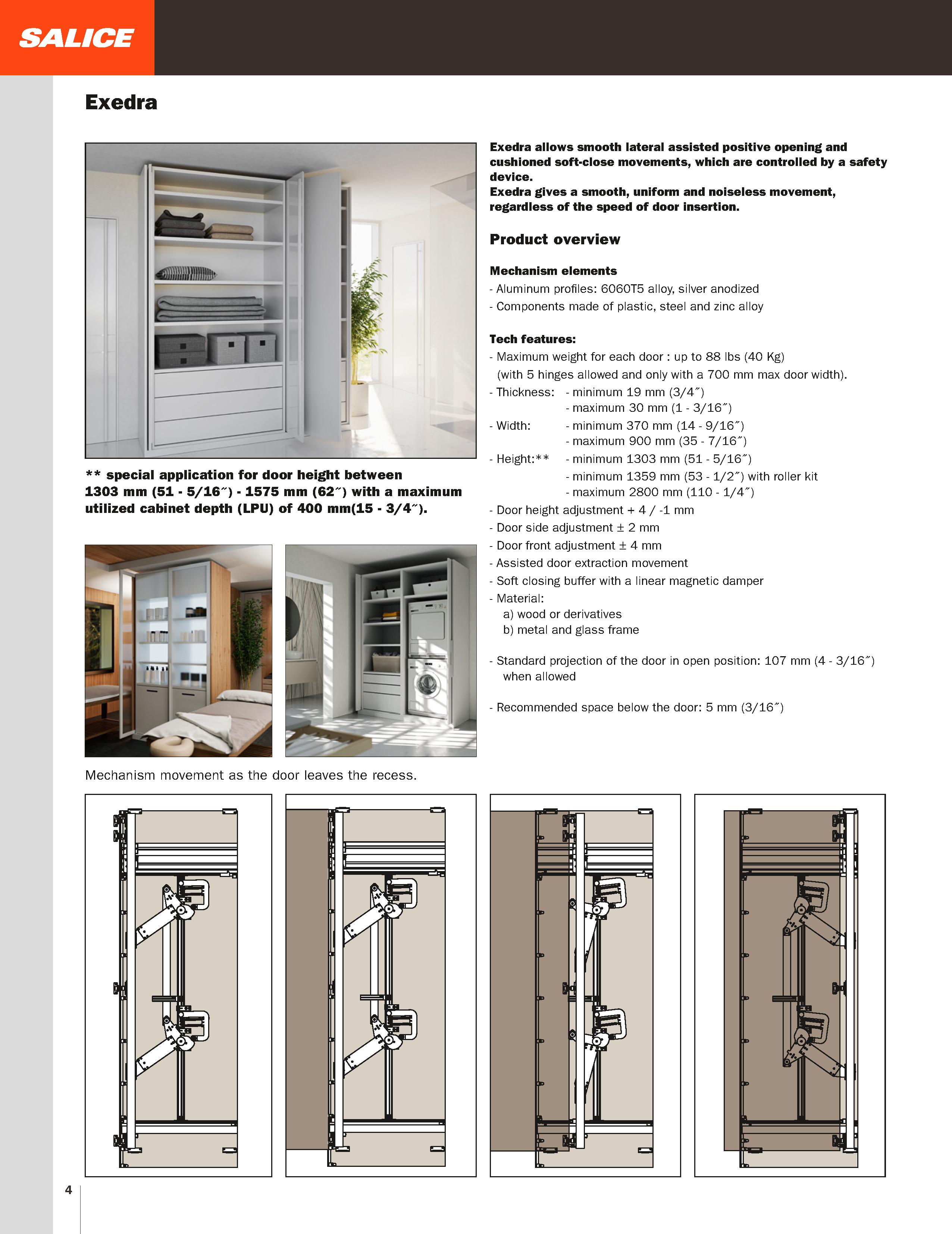

View higher quality, full size image (2552 X 3308)


View higher quality, full size image (3508 X 2481)

Salice Exedra Pocket Door System

8/28/24       #4: Full overlay pocket door hardware ...
Matt Calnen

Dennis, thank you very much for the reply. I have a question, my door is 47” tall, will this hardware work for that height? It says on the specs you provided minimum height of 51 5/16”. Looks like a slick system.

8/28/24       #5: Full overlay pocket door hardware ...
Dennis Bean  Member

Website: http://www.saliceamerica.com

Hi Matt,

Sorry, I overlooked that detail in your post. At this time, 51" is the minimum. I hope we can assist with your next pocket door.

Regards,

Dennis

8/29/24       #6: Full overlay pocket door hardware ...
duster

I've done this with the KV hardware. If you make your partitions so that they're not too difficult to remove, you can install the hardware while it's lying flat on the bench, then screw the partition in. Unless you're really good (or lucky) you'll probably have to remove the partitions at least once or twice to adjust the hinges to get the right reveals.

9/16/24       #7: Full overlay pocket door hardware ...
Pdub Member

The Exedra is great, but not cheap and requires meticulous planning.
The new Blum looks promising. However, it's the same hardware for a folding pocket as a single door. So the pocket is quite a bit bigger and hence eats up more interior cabinet space. Customers don't like that.
For anything smaller the KV 8091 with the overlay adapter works pretty well. We use magic wire for the partitions so they can be removed and adjustments made. Not as slick as the other 2, but MUCH cheaper.

9/16/24       #8: Full overlay pocket door hardware ...
Matt Calnen

Thanks to all who replied. I decided to roll the dice on the accuride 1321, and it’s working just fine. Time will tell and hopefully it lasts.
