Software for CNC

12/12/13
Rob Member

We have a Andi Stratos Pro 5x12. We are a commercial casework shop that operates with Microvellum. I know that Microvellum is great for casework, and not so great for engraving/ signwork etc. Any suggestions on a reasonably priced software for doing that kind of work.

12/12/13       #2: Software for CNC ...
yaakov katz

ucancam from china
exept the "name"(didnt them ask any one what is the mining of this name)its very good very freindly and very very low cost

12/12/13       #3: Software for CNC ...
Leland Thomasset

Website: http://www.cnc-cabinetparts.com

Vectric software the best easy and affordable. This is from an avid Cabinet Vision user. CV for cabinets Vectric for the other stuff

12/12/13       #4: Software for CNC ...
dustmaker1

Another vote for Vectric, Vcarve pro $600, great for signs. I always plug there software even though I have not been able to log into there forum for months now and no one will return my inquires, must have made them mad somehow.

I even use Vcarve for some odd cabinet stuff like prototyping MDF doors, lots of odd shaped stuff, curved counter tops etc. , can't beat the price for cad and post processors.

Paul R

12/13/13       #5: Software for CNC ...
james mcgrew Member

Website: http://mcgrewwoodwork.com

Check the sign and panels part of my website, all done with Vectric Aspire/VCPro, you can down load and test software before purchase on their site, also advise watching tutorials in training support section.

12/20/13       #6: Software for CNC ...
harold Member

Website: http://hillsideinteriors.co.uk

Have to give another thumbs up for Vectric We use magicut to nest cabinets ,but vectric does all else , easy to use, quick to learn etc , I use it daily for all sorts of simple things and if you buy Aspire the 3D is equally as easy to use

harold

12/20/13       #7: Software for CNC ...
james mcgrew Member

Website: http://mcgrewwoodwork.com

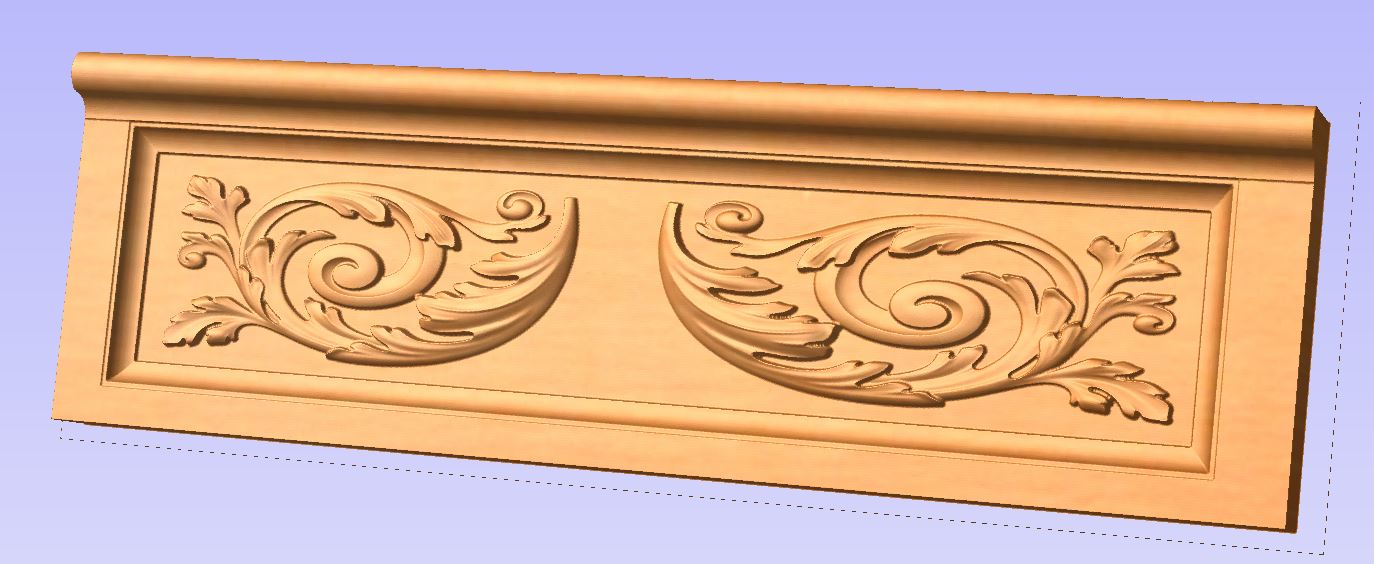

I was just finishing up a file for a Gfrc Mold we are doing for a Hood in a custom,, took a pick before I machined it in the negative to cut in foam for the mold.. I did this in Aspire over the last half hour !


View higher quality, full size image (1374 X 564)

1/1/14       #8: Software for CNC ...
Chris

I would recommend EnRoute. I think they would be an ideal fit for what you are doing.

EnRoute Software
