Cabinet Vision Graphics Problem

11/18/15
Keith Godwin Member

I am running R2011 Build 112. About (3) weeks ago, the graphics for my glass doors with grills quit working properly. The center stiles appear "hollow". If you rotate the door to the back side, they look normal. The problem is ONLY with doors with shaped top rails. I haven't downloaded any new CV versions or updates so I can't understand why it is doing this. Please, let me know if you have had this problem. A new graphics card didn't help.

11/19/15       #2: Cabinet Vision Graphics Problem ...
james mcgrew Member

Kieth did you upgrade to win 10. my cv is not usable on all my upgraded computers ?

11/19/15       #3: Cabinet Vision Graphics Problem ...
Keith Godwin Member

No I didn't. I tried 10 at home and really didn't like it so I went back to 7. It's weird Jim. It's only that center stile in a glass door with a shaped top rail. Everything else works great.

11/19/15       #4: Cabinet Vision Graphics Problem ...
Joe Member

It's hard to tell without seeing the problem, but maybe something (like shaped parts can cause wacky issues) is changing the size of your glass panels . Causing the panels to overlap the center stile and make them look transparent.

11/24/15       #5: Cabinet Vision Graphics Problem ...
cabinetmaker

I know this sounds strange, but check the materials schedule

12/1/15       #6: Cabinet Vision Graphics Problem ...
Leland Thomasset  Member

Website: http://www.cnc-cabinetparts.com

I want to comment on the windows 10 I by mistake let my laptop upgrade to windows 10 pro. With that said I have used CV without issue. I know people have had problems with it so I am not sure why it works for some and not others.

12/1/15       #7: Cabinet Vision Graphics Problem ...
james mcgrew Member

I decided to spend some time learning CV (I use CW) after loading on all my new upgraded computers with AMD r9 cards, the screen below is the best I get and it only happens in the working room,

Some CV people have been to the shop and confirmed the problem, Not sure if it is fixed and I will em them and ask


View higher quality, full size image (1478 X 958)


View higher quality, full size image (1370 X 893)

12/1/15       #8: Cabinet Vision Graphics Problem ...
Leland Thomasset  Member

Website: http://www.cnc-cabinetparts.com

Wow that won't work!! I wonder if it has to do with older versions. We are running 8+9. On intel zeon and Nivida 4G cards

12/1/15       #9: Cabinet Vision Graphics Problem ...
james mcgrew Member

2012 r 2 I think this is current, I had all main computers upgraded, ssd drives new cards I7 processors new vid cards

the screen you see is when I try to draw a wall

12/1/15       #10: Cabinet Vision Graphics Problem ...
Bob Harkleroad

AMD video is a known problem with Solid. So are some Logitech mice apparently. Or at least the software that comes with them.

1/13/16       #11: Cabinet Vision Graphics Problem ...
james mcgrew Member

You can disable the vid card and it will work , yesterday I switched to a 4gig NVidia GeForce 970 and it fixed the problem, I am sure 2 gig will do for most

I had an AMD card which those at Vero told me was the problem

1/14/16       #12: Cabinet Vision Graphics Problem ...
james mcgrew Member

Got another response with this solution for some

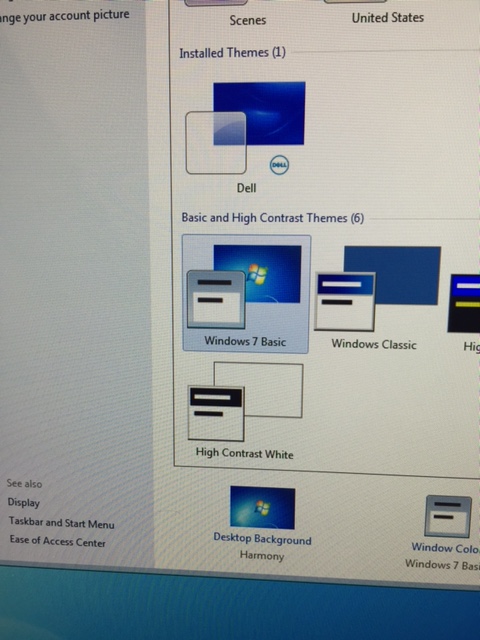

set your appearance to Windows 7 basic as opposed to what it is set to by default,


View higher quality, full size image (480 X 640)

3/15/16       #13: Cabinet Vision Graphics Problem ...
Jay E wiggitnon

I was having the same problem with CV version 9 and an AMD 6450 video card. I discovered that if I disable the video card via the device manager... then open CV version 9... go back to device manager and enable the video card... the graphics issue is not present... only when I open CV with the video card enabled is the issue present.

This is a pain in the butt to have to do this but graphics are smother and faster with card enabled than with the standard Windows driver active.

9/6/16       #14: Cabinet Vision Graphics Problem ...
Jim Evanko

i want to say Thank You to
Jay E wiggitnon for the work around solution! my machine has an AMD 8670D
video card and i'm running ver. 5.0 (i know it's a dinosaur but i own R11 and see only trivial improvements so why change?)
the solution gets me up and working without any hardware upgrades. Thanks again!

9/6/16       #15: Cabinet Vision Graphics Problem ...
Keith Godwin Member

I contacted Cabinet Vision or whoever they are this week back first of the year. Spoke with my rep.. I don't pay for support and updates because it's too expensive, but I have this problem, is there anything I can do? Yes. We can do a one time incident with tech dept for $100 dollars. So I said I've either got a video card problem or there is a glitch in the program graphics. Now the tech is on the phone. So I said I've either got a video card problem or there is a glitch in the program graphics. After getting on my computer and looking into the problem, the tech guy said, you've either got a video card problem or there is a glitch in the program graphics. So, I get a bill for not $100 but $107. Let's not forget local sales tax! WHAT!? On a tech support call! Some things never change. I've been using CV since late '80's. Same old story.

3/23/18       #16: Cabinet Vision Graphics Problem ...
Brian Vt

I need a new (affordable) laptop.
The one I'm looking at has AMD.
I'd be okay with using the the on\off tweak but I noticed this in the laptop description.
"It has an AMD A9-9420 3GHz processor and AMD Radeon R5 video adapter but no dedicated video memory."
Would that mean the on\off tweak might not work?

3/24/18       #17: Cabinet Vision Graphics Problem ...
Leland Thomasset  Member

Website: http://www.cnc-cabinetparts.com

Cabinet Vision just does not play well with AMD graphics cards it sucks but it is well documented
