AutoCAD 2022 Publish

5/5/22
Mike

Not sure why, but when I publish pages, it still wants me to save each page individually. How can I make it where it saves all pages as one PDF? I have a PDF writer installed.

Ty

5/6/22       #2: AutoCAD 2022 Publish ...
Moe

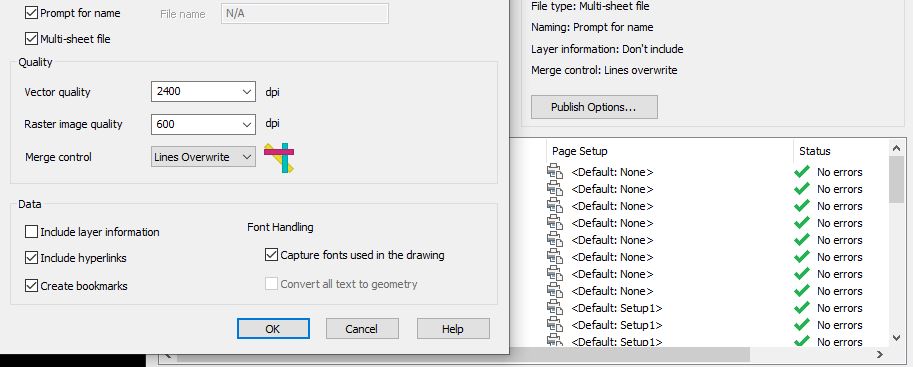

Batch Plot -> publish options -> multi-sheet file


View higher quality, full size image (913 X 367)

5/6/22       #3: AutoCAD 2022 Publish ...
Mike

Moe,

Where do i find the batch option in the publish section?

5/9/22       #4: AutoCAD 2022 Publish ...
Mike

Can anyone else help me? If what moe is showing is correct, I donít know where to locate that part in AutoCAD 2022.

5/10/22       #5: AutoCAD 2022 Publish ...
Moe

Sorry for the late reply - the "batch" command should take you to the screen I'm showing. It will list all the layouts that are open and allow you to select the ones you need to publish to pdf.

5/10/22       #6: AutoCAD 2022 Publish ...
Moe

You have to check the box that says multi-sheet file for it to group everything into a single file.

5/10/22       #7: AutoCAD 2022 Publish ...
Mike

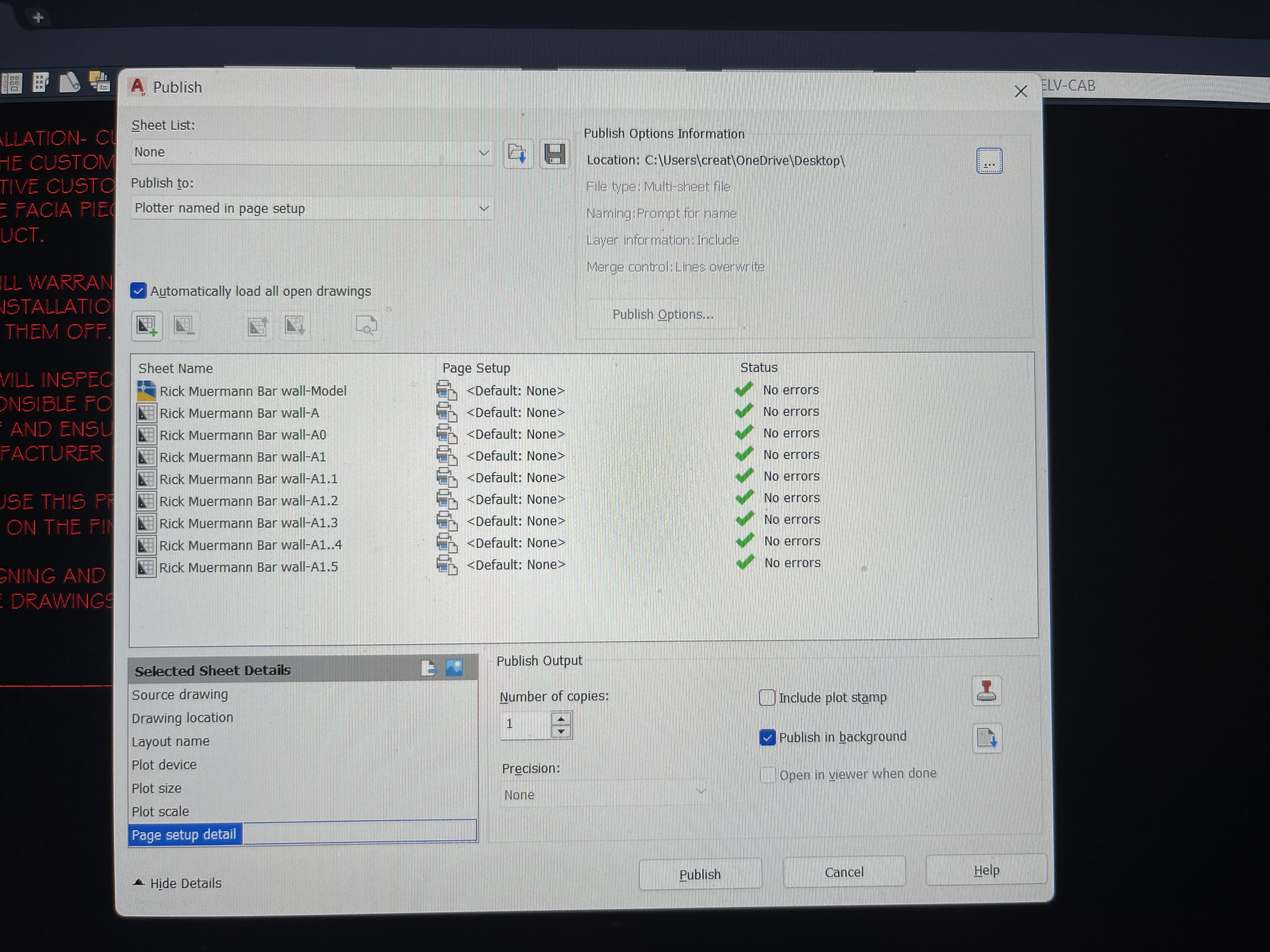

Moe, this is my screen. The Publush Options is grayed out. If I select the three dots next to it it says select a folder for generated files


View higher quality, full size image (4032 X 3024)

5/10/22       #8: AutoCAD 2022 Publish ...
Mike

When I select the first page I want to be published and then hit the shift key and hit the bottom page I want it as it being all one entity, then type in a file name for it, it continues to bring up the dialog box to save each and every single page separately.

5/11/22       #9: AutoCAD 2022 Publish ...
Moe

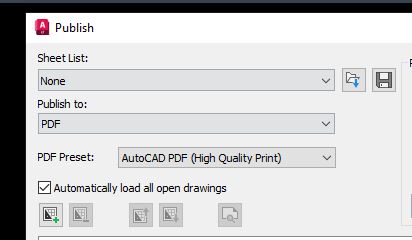

I think I figured out what the difference in our setups is. I think you need to select "publish to PDF" instead of "plotter named in page setup" for it to work the same way I have it.


View higher quality, full size image (412 X 240)
