OMAL Insert 1300 CN2004 issues

7/5/24
David Hohman Member

Website: https://www.berkeleywoodworking.com/

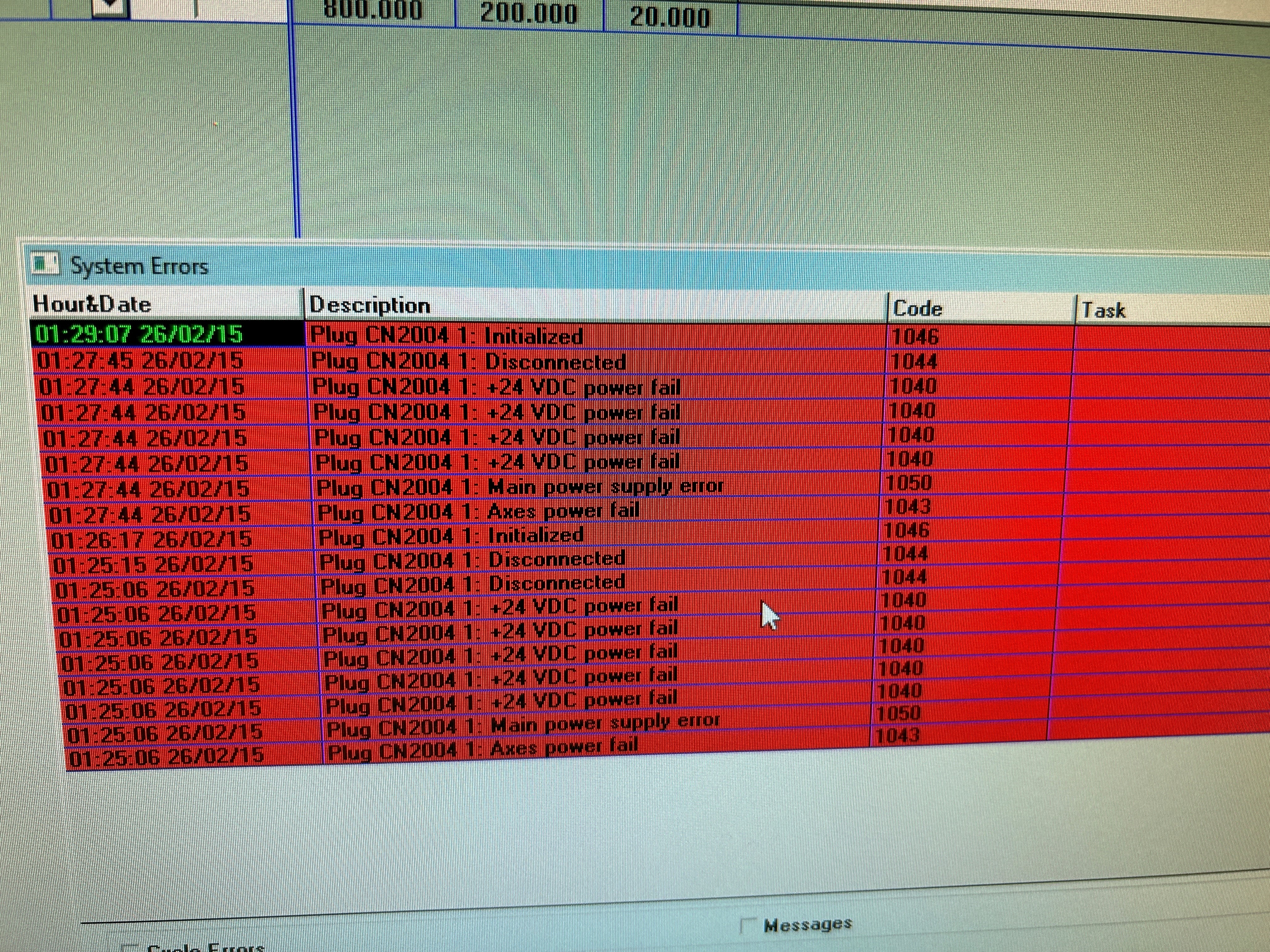

Hello All, I have been a long time woodworker and at one time I was an actual engineer. As such, when I went to work for a local cabinet shop on a part-time basis, the owner tasked me with learning his CNC machines. I am having a particular set of issues with a machine that he has never had running(He just bought the company a couple years ago). It is an OMAL 1300. My observations started with some very general errors that led me to replacing a fuse but I didnt get it to run. I am now getting very specific erros, which are related to the CN2004 componet. The errors state that it is having initializing and power issues, along with an axes issue. I am curious if anyone else has had similar issues and can point me to a fix; as I have bashed my metaphysical skull enough. I have attached an image showing the errors. Any help would be much appreciated. If this is something that is going to require replacement parts, a lead for that would also be nice, as I see that many of this machines componets are no longer being made.


View higher quality, full size image (4032 X 3024)

7/6/24       #2: OMAL Insert 1300 CN2004 issues ...
Jim Anderson

I am not an expert on that machine, but the messages indicate that you are having power issues. On most systems, incoming power 220 or 480vac is used to power the system and some motors. It also powers a 24VDC power supply which is used for sensors, relays, switches and contactors. If there is a short in the 24VDC system it will shutdown the 24VDC and you will have errors all over the place, the same is true if the 24VDC power supply is bad. a quick check would be to take the load off the output side of the 24VDC power supply, power it up and measure the output with a Volt meter. If it is putting out 24VDC, you most likely have a short somewhere. If its not putting out 24VDC replace it with one of equal power output as the original. for example it may take 220VAC input with 24VDC @ XXX Amps output.
