Undermount slides with roller mechanism that attaches to back of box

8/24/23
SawdustEddie Member

Website: http://www.beautifulfinish.com

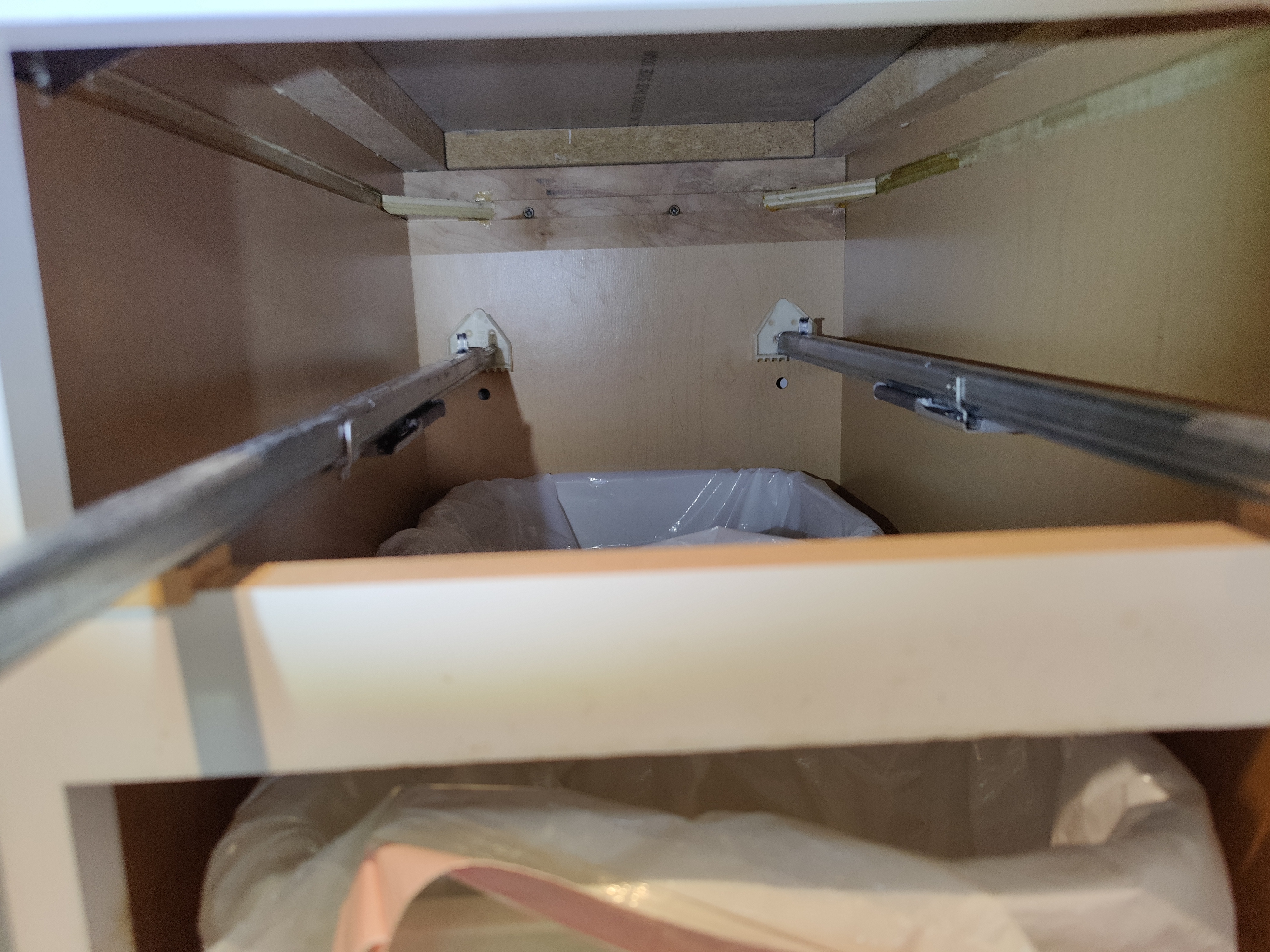

I am looking for specific type of undermount extension drawer slides I can use to retrofit old drawer boxes. See photos: Has anyone seen these before?

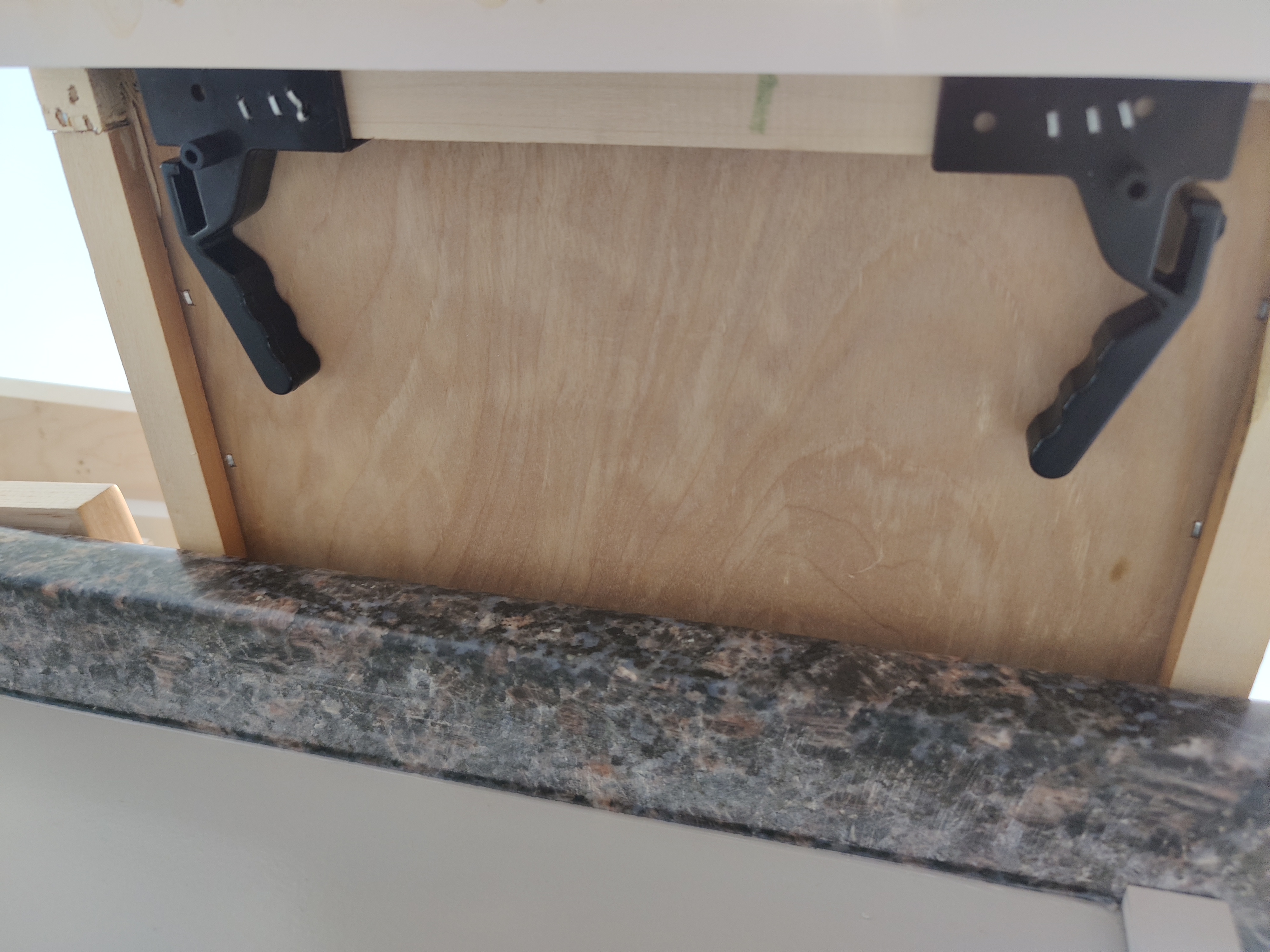

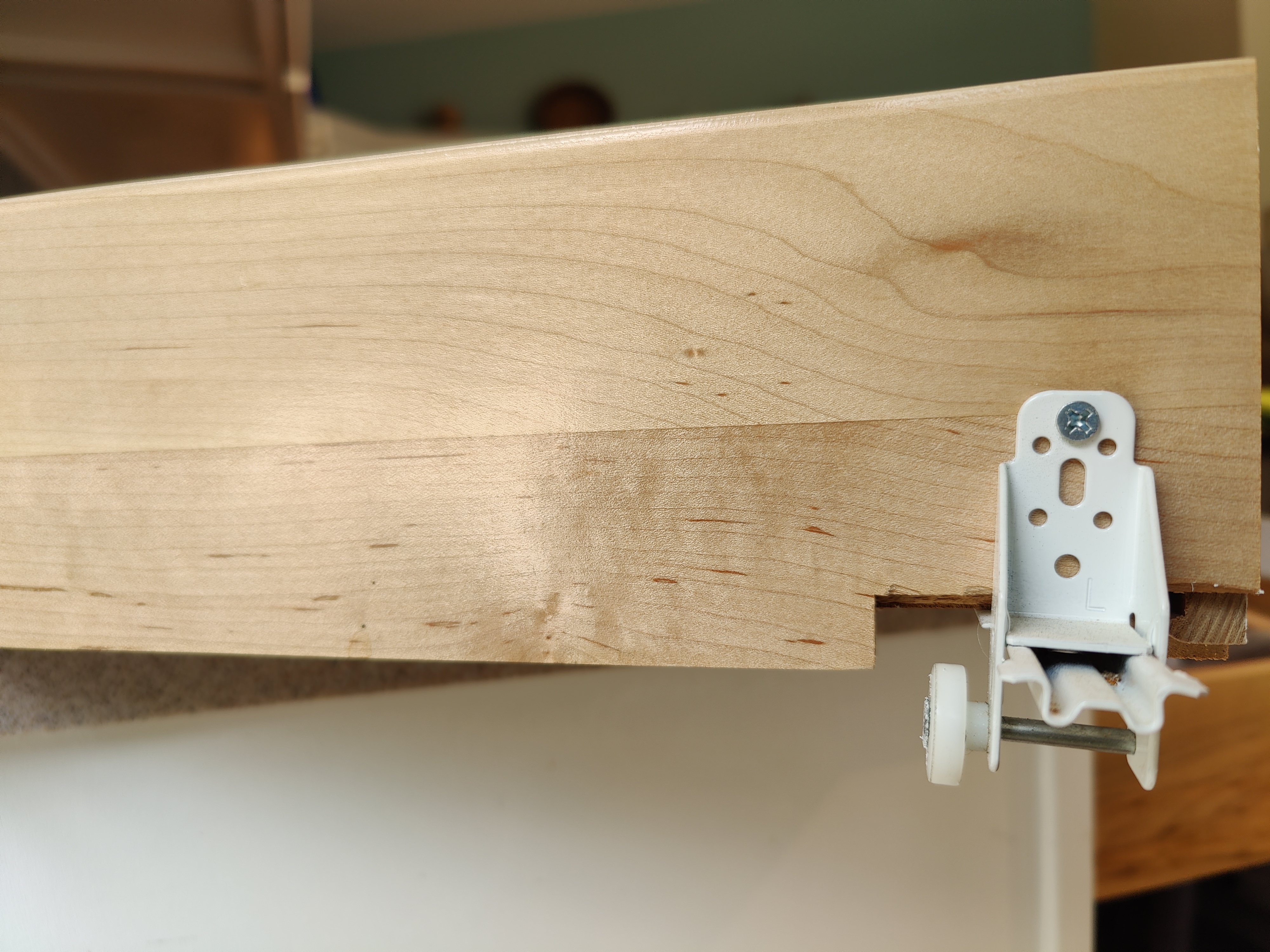

The boxes are 1/4" narrower than the opening. Front locks attach to the underside of the drawer box. The rear of the box is notched and you attach a mechanism with rollers that holds the back of the box on the slides. The slides attach to the back of the cabinet and to top of the opening of the drawer opening in the face frame. I could not find the brand name on the drawer runners. Rockler Woodworking and Hardware has something that would work in this situation, but not as well as extension slides.


View higher quality, full size image (4000 X 3000)


View higher quality, full size image (4000 X 3000)


View higher quality, full size image (4000 X 3000)

https://www.rockler.com/go-ez-universal-concealed-drawer-slide-set

8/25/23       #2: Undermount slides with roller mecha ...
Dennis Bean  Member

Website: http://www.saliceamerica.com

Hey Sawdust,

If there is no name on the slide it is likely a Chinese import.

I really don't understand the reason for the roller thing in the back. It looks like it came from a different type of slide style all together and was cobbled together with this slide to stabilize the movement.... or something. The box is also missing the 7mm hole in the back to receive the slide back hook.

To my knowledge, all current undermount slides on the market today require the drawer box width to be:

3/8"(9mm) less than the opening if the drawer sides are 5/8" thick.

For sides that are 1/2" thick the box would be 5/8" less than the opening.

For drawer side thickness of 3/4" the box would be 7/16" less than the opening.

I believe the appropriate description of this drawer is "jury-rigged"

Best of luck

Dennis

8/25/23       #3: Undermount slides with roller mecha ...
SawdustEddie Member

I just spoke to the customer and they said that after water damage, replaced a cabinet with this one. They picked up the base cabinet from Home Depot as a complete package (finished cabinet fronts, hinges, drawer box and slides). Not something that Home Depot sells now. So I agree with Dennis, likely a "jury-rigged" import.
