Router bit storage

1/29/14
Rick

Anyone out there have a router bit storage drawing or sketch?

1/30/14       #2: Router bit storage ...
B.H. Davis Member

Website: http://www.curvedmouldings.com

We have 4 or 5 storage bins similar to the one at the below link staked on the wall. The plastic bin compartments are adjustable with dividers for small or large bits. Some creative cutting away of fixed dividers even allows for bits that are larger than would normally fit in the compartments.

A label on the front of each bin tells what type of bits are inside.

BH Davis

Storage bins

1/31/14       #3: Router bit storage ...
ML

No picture (I'll be back in the shop by Tuesday) but we simply placed a piece of 5/4" mdf in the drawer bottoms of a bank of drawers, after drilling (1/64" oversize) half inch holes - think swiss cheese. Top drawer is all on 1" centers, second drawer on 1-1/2" centers, third drawer on 2-1/2" centers and the bottom drawer on 3-1/2" centers. A wall shelf with similar holes but 1/4" size houses our smaller collection (@40) of 1/4" shank bits. One other drawer has a plastic insert purchased from CMT years ago at a trade show that has metric sized holes (not sure exactly what dimension) which holds a handful of Festool metric shank sized bits.This pretty much houses all of our 200+ collection of router bits.

Now if you're referring to a CNC router bit shelf for automatic retrieval - that I can't help you with as I don't have a CNC.

2/4/14       #4: Router bit storage ...
Jim Baldwin  Member

Website: http://www.handrailer.com

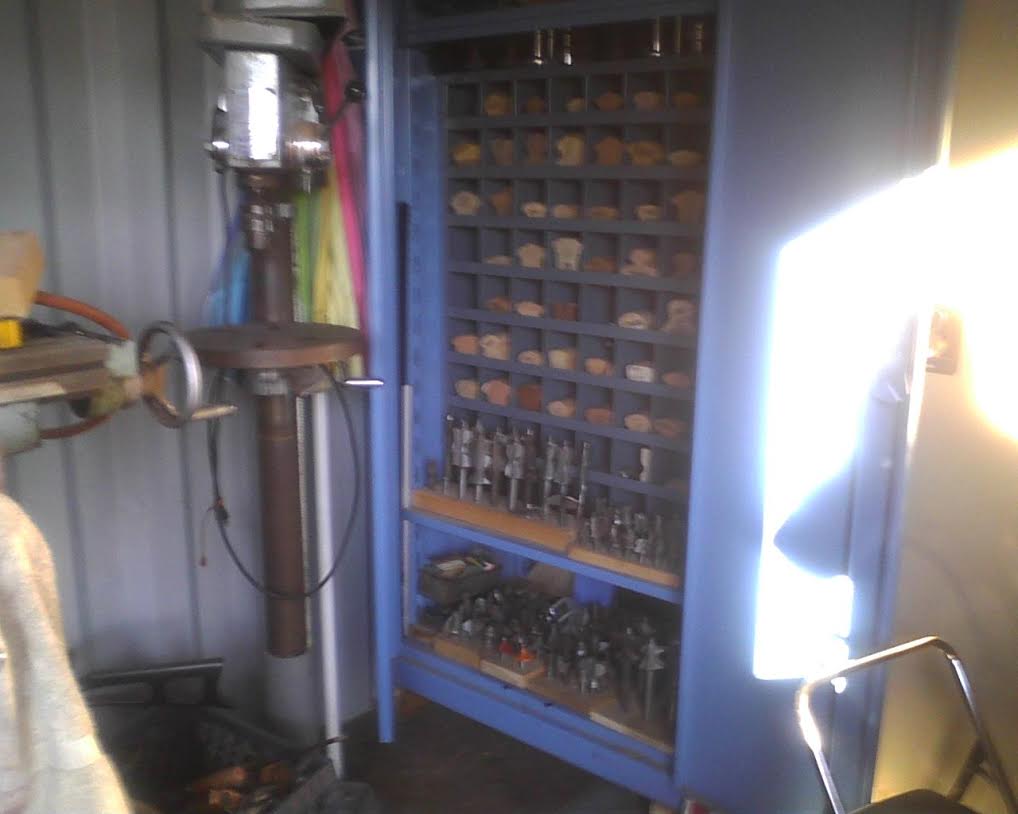

I use a pigeon-hole steel storage bin set inside a heavy steel cabinet. Each hole holds the handrail or molding sample along with all tooling/cutters for different machines. Other cutters are stored above and below. The whole thing is kept locked up tight at night since there is about $40,000 in custom tooling here.


View higher quality, full size image (1018 X 814)

3/13/14       #5: Router bit storage ...
really??

$40k in router bits?? Seriously??

You make all those handrails with a portable router? , wow.

3/13/14       #6: Router bit storage ...
Jim Baldwin

No handheld routers here. Stationary pin routers and custom curved handrail profiling machine. All custom cutters and the big ones (4" tall ) costing $750 a piece. Complete tooling for each handrail profile can run $2,000.

At these prices it adds up quick.
