Salice Face Frame Inset Hinge

10/30/19
Steven

Does anyone using Salice hinges know if this hinge/mounting plate combo is correct for face frame inset doors? The doors I buy are a little thicker, I think 13/16" or 7/8".


View higher quality, full size image (665 X 259)

10/31/19       #2: Salice Face Frame Inset Hinge ...
Dennis Bean  Member

Website: http://www.saliceamerica.com

Hi Steven,

This is not the correct combination. We actually offer 2 methods for inset face frame applications.

The first method would be to attach the mounting plate to the back of the face frame. The mounting plate you show, BAL3R59 is correct for this approach. The correct hinge however would be the "half overlay" version. Salice item C2R6G99. You are showing an "inset" hinge that would be used in our second approach.

The second method would be to use an inset hinge C2R6P99 (like you show) but with a mounting plate of the correct thickness that would be attached directly to the cabinet side. The choice of mounting plate would depend on the measurement behind the face frame.

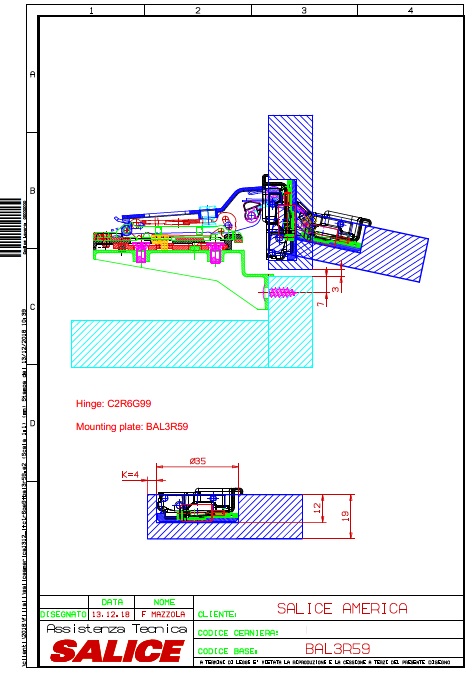

I have included 2 illustrations that detail both approaches. The drawings show ¾” thick doors but your 7/8” thick doors will also work with these solutions. You would adjust to a slightly larger gap between the door edge and the face frame when 7/8" doors are used.

You can use either self-close or soft close hinges with either method using the correct part number.

Please let me know if you have any questions.

Best of luck,

Dennis


View higher quality, full size image (1187 X 1531)


View higher quality, full size image (472 X 674)

10/31/19       #3: Salice Face Frame Inset Hinge ...
Steven

Dennis,

This is exactly the information I had been trying to find. Thank you for replying.

7/7/21       #4: Salice Face Frame Inset Hinge ...
Vera Chen

Hello Dennis,

I also have inset doors and face frame, 3/4 inches thick door. I need to replace hinges for 22 doors and I am on a budget.

Can you please double confirm that approach 1 (attach mounting plate to the back of the face frame) Salice part number is plate BAL3R59, hinge C2R6G99? Though hinge name is half overlay, it works for inset? I don't want to buy 44 sets and found out later that they are wrong. :-)

If I want soft close, will it be much more expensive? Can you please point me to the part number?

Thank you, Dennis.
Vera

7/7/21       #5: Salice Face Frame Inset Hinge ...
Dennis Bean  Member

Website: http://www.saliceamerica.com

Vera,

You seem to be on the right track with the part numbers you stated. In case there are circumstances that I am not aware, you may want to order 2 hinges and plates for a test run. Then order the rest if it works ok.

The soft close hinge for the same door would be C7R6GE9. You would use the same mounting plate. It will cost more but you will need to check with your supplier for the price.

Be cautious with the soft close hinge. This requires a 13.5mm (9/16") cup depth for the soft close feature to function.

Best of luck

Dennis

5/30/23       #6: Salice Face Frame Inset Hinge ...
Nelson

In my case I have 3/8" rabbeted partial inset doors combined with face frame cabinets. Is there a hinge I can use in combination with the BAL3R59 mounting plate to make those work? Are the half overlay hinges the right answer there as well, or something else?
